Preliminary Work

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front wheel housing liner at the left.

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  2. Drain refrigerant.

    > 870317 DRAINING AND FILLING REFRIGERANT

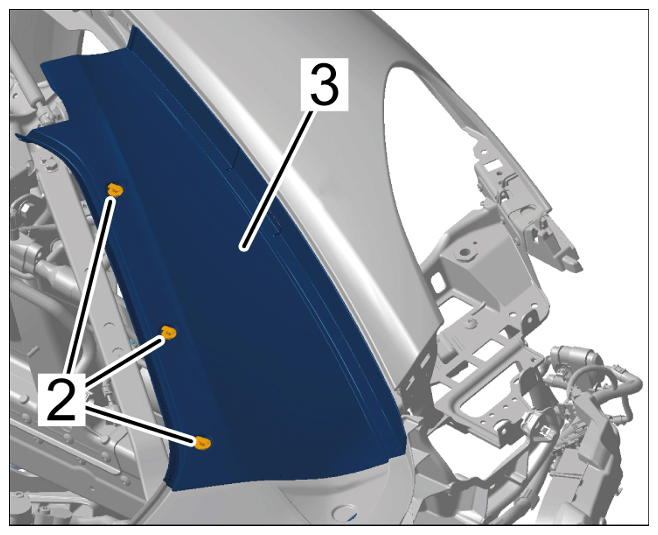

  3. Remove clips -2-  and remove engine cover at the left -3-  .
G15875453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side engine cover
