Technical Values
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

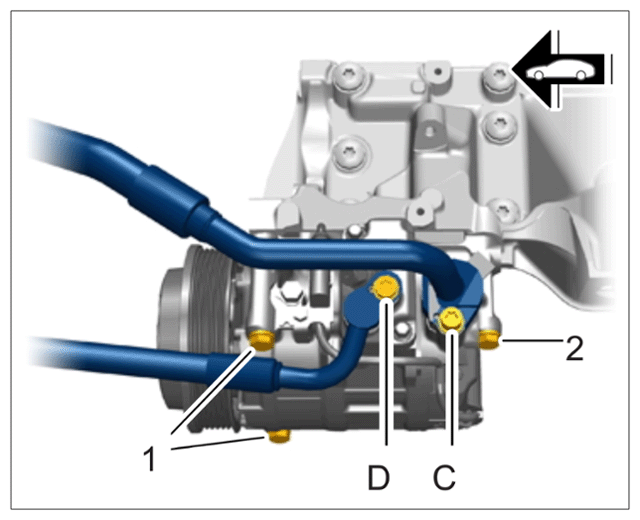

| Screw securing refrigerant line to condenser |
Item 2 |
Tightening torque |
12 Nm (8.85 ftlb.) |
|
|
| Screw securing air-conditioning compressor to engine |
-1- and -2- |
Tightening torque |
20 Nm (15 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Refrigerant line to air-conditioning compressor |
