Removing Servo Motor For RECIRCULATION Flap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove servo motor for recirculation flap -3-  .

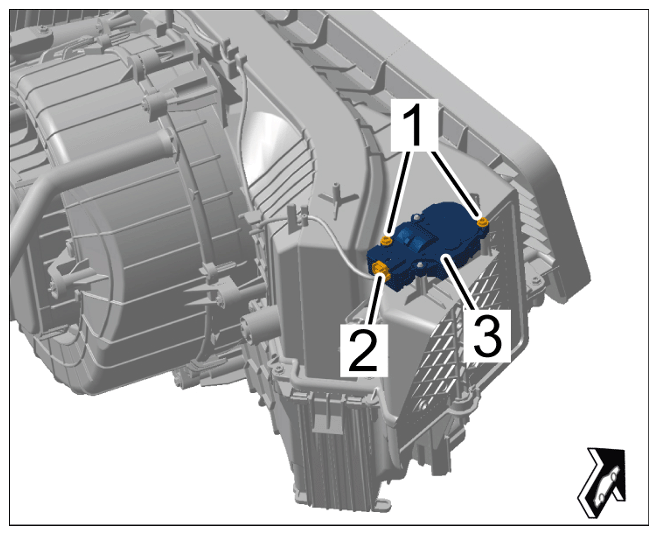

    G15875389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing servo motor for recirculation flap

    1. 1.1 Unscrew and remove screws -1-  .
    2. 1.2 Release and unplug electric plug connection -2-  .
    3. 1.3 Remove servo motor for recirculation flap -3-  .
