Punch And Bottom Die Pairs

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Punch rivet

Pressing punch rivet joints out of two-layered panel joints with restricted access D3 + D5
Pressing punch rivet joints out of three-layered panel joints with restricted access D4 + D5
Pressing punch rivet joints out of two-layered panel joints S4 + D5
Pressing punch rivet joints out of three-layered panel joints S5 + D5

The correct punch and bottom die pair for the punch rivet joint is specified in the table above.
Information

The pressed-out punch rivet remains in the panel to be replaced and is removed together with the panel.

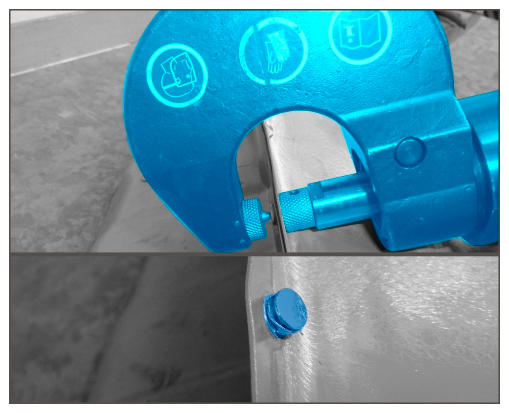

Press out punch rivet using > VAS 6790 - compact booster .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing out punch rivet
