Welding Studs

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electric welding

Risk of electric shock or burns
→ Wear personal protective gear.

→ Disconnect both battery terminals.

→ Do not weld in a damp area or when it is wet under foot.

→ Move highly inflammable materials out of the work area. Vertilate the work area well.

→ Remove smoke gases with an extraction system.

→ Read specific safety information for the welder.

→ Check that welder is working perfectly before use.

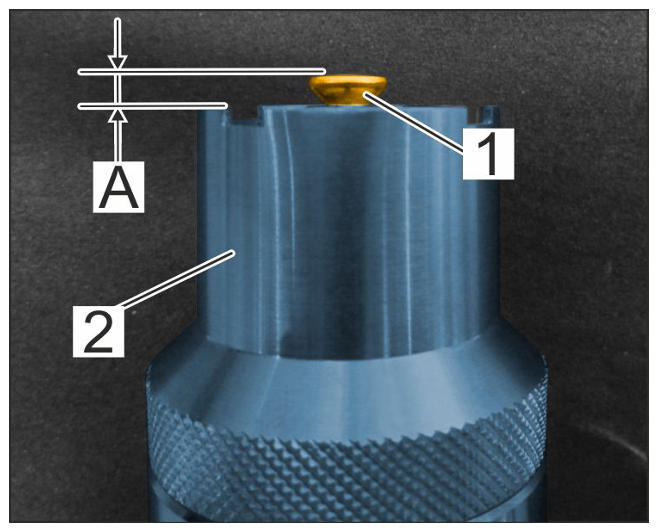

Fit weld stud -1- with a head gap of > Length 2 mm into the support fixture -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inserting weld studs

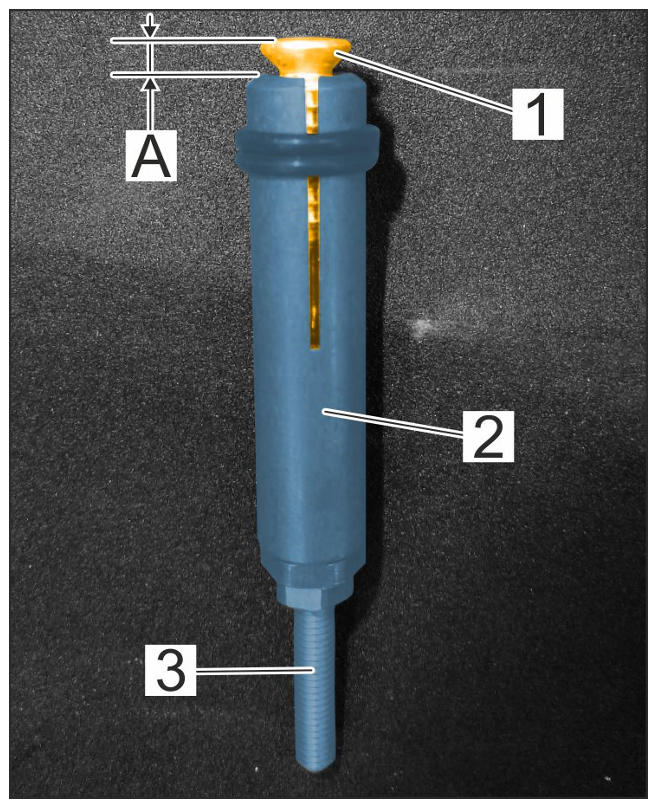

Screw in stop screw -3- as far as the weld stud and secure it in order to hold the weld stud in position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holding weld stud in position

Information

The welding process can only be started if the welding current circuit is closed. For this purpose, there must be electric contact between the welding element and workpiece.
Fit stud holder with weld stud into the welding gun. Check projection of the stud -1- with respect to the gas nozzle -2- of > Length 2 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Supporting weld stud in gas pipe

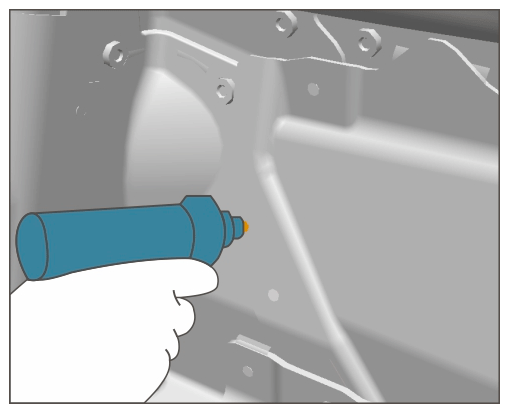

Weld the weld stud onto the workpiece.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welding on weld stud
1. 4.1 Check welding parameters.
2. 4.2 When using aluminium studs, remove the oxide coating on the weld stud by sanding it down.
3. 4.3 Position welding gun straight onto the workpiece and check that the welding gun attachment is seated evenly and securely.
4. 4.4 Start welding by pressing the trigger.
5. 4.5 Wait at least 2 seconds to allow the molten weld pool to cool down and set.
  Information

  After welding, pull the welding gun straight off the welding element to avoid damaging the stud holder and stud.
