List Of Materials

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

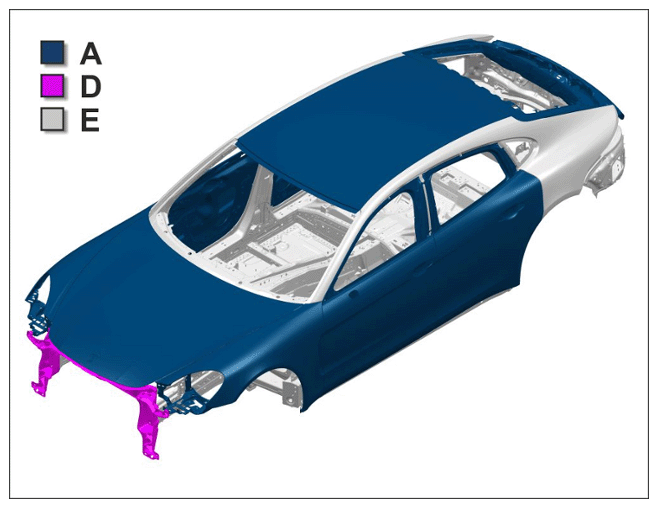

Fig 1: Body Components Structure Identification Materials - Add-On Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Add-on parts

A	Aluminium sheet
D	Magnesium
E	Steel; for details, see

> 5X00IN04 BODY PARTS OF VARIOUS SHEET-STEEL STRENGTHS

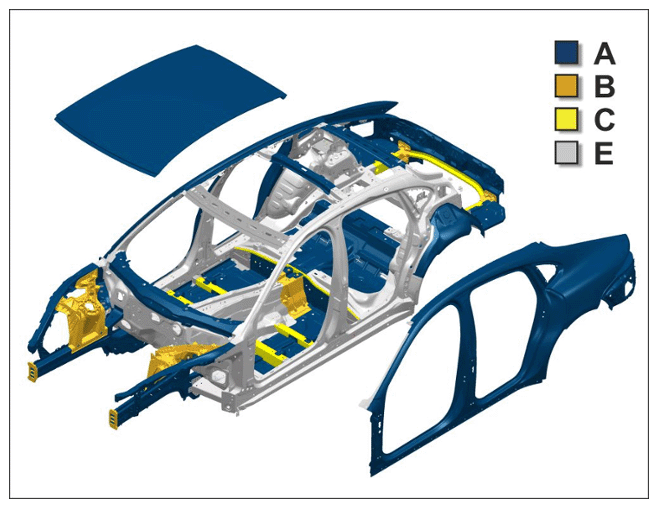

Fig 2: Body Components Structure Identification Materials - Upper Structural Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper structural parts

A	Aluminium sheet
B	Cast aluminium
C	Extruded aluminium profiles
E	Steel; for details, see

> 5X00IN04 BODY PARTS OF VARIOUS SHEET-STEEL STRENGTHS

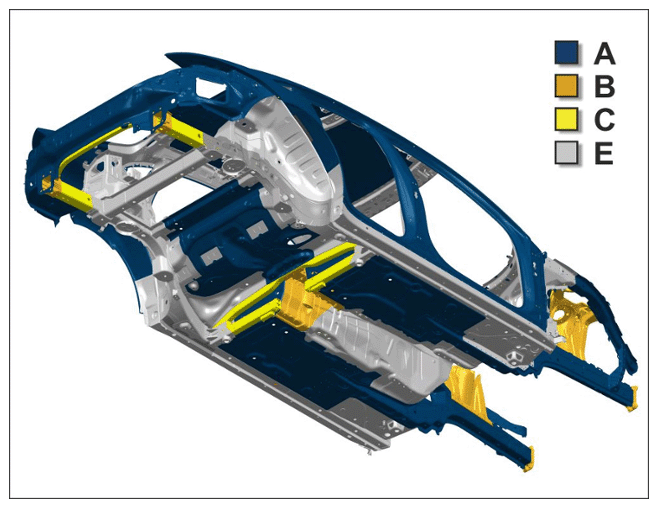

Fig 3: Body Components Structure Identification Materials - Lower Structural Parts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower structural parts

A	Aluminium sheet
B	Cast aluminium
C	Extruded aluminium profiles
E	Steel; for details, see

> 5X00IN04 BODY PARTS OF VARIOUS SHEET-STEEL STRENGTHS

Item	Material group	Use/Characteristics
A	Aluminium sheet	Outer skin parts very malleable Part replacement as per service information Reinforcement parts very malleable Part replacement as per service information Must not be reshaped using mechanical or hydraulic pulling or pressing equipment
B	Cast aluminium	Reinforcement parts Part replacement is not permitted Must not be reshaped
C	Extruded aluminium profile	Reinforcement parts not very malleable Part replacement as per service information Must not be reshaped using mechanical or hydraulic pulling or pressing equipment
