Rear Door

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance
Fastening screw securing door hinge to door	Item 1	Tightening torque	55 Nm (41 ftlb.)

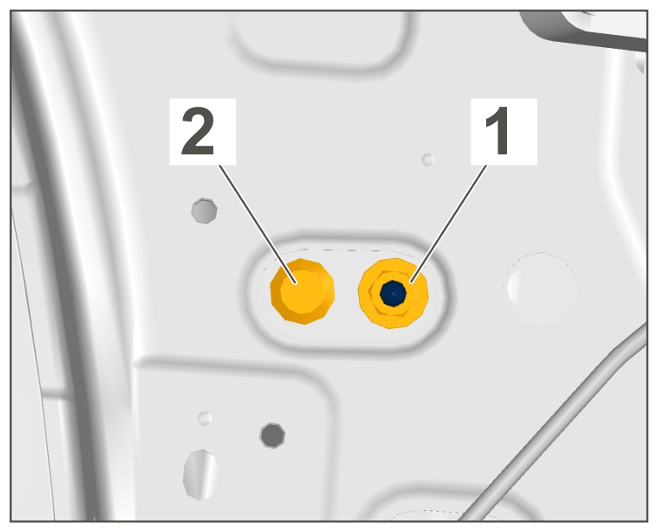

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on door side)
Fastening nut securing door hinge to body	Item 1	Tightening torque	60 Nm (44 ftlb.)

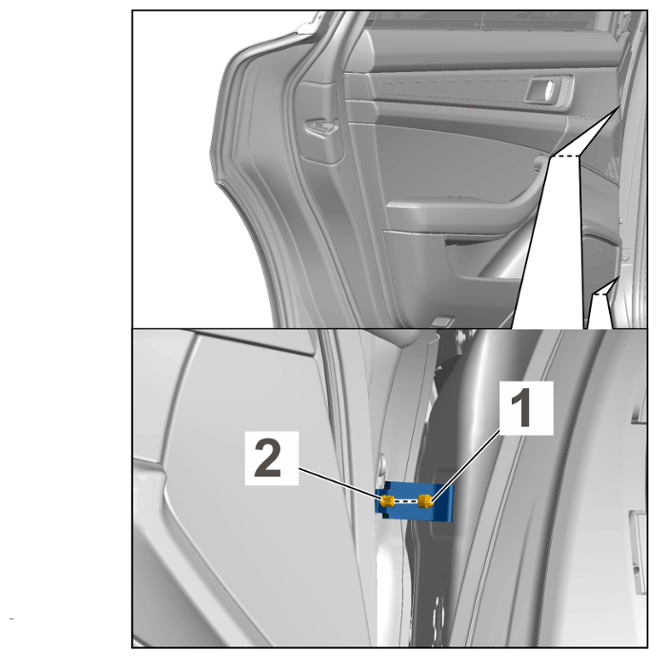

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screw securing door hinge to body	Item 2	Tightening torque	60 Nm (44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screws for door hinge	Item 2	Tightening torque	27 Nm (20 ftlb.)	+/- 3.5 Nm (2.5 ftlb.)

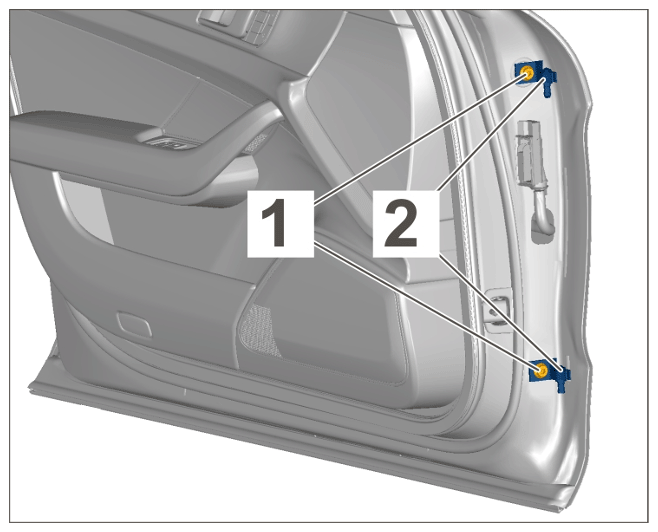

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door hinge
Fastening screw for door arrester	Item 1	Tightening torque	33 Nm (24 ftlb.)

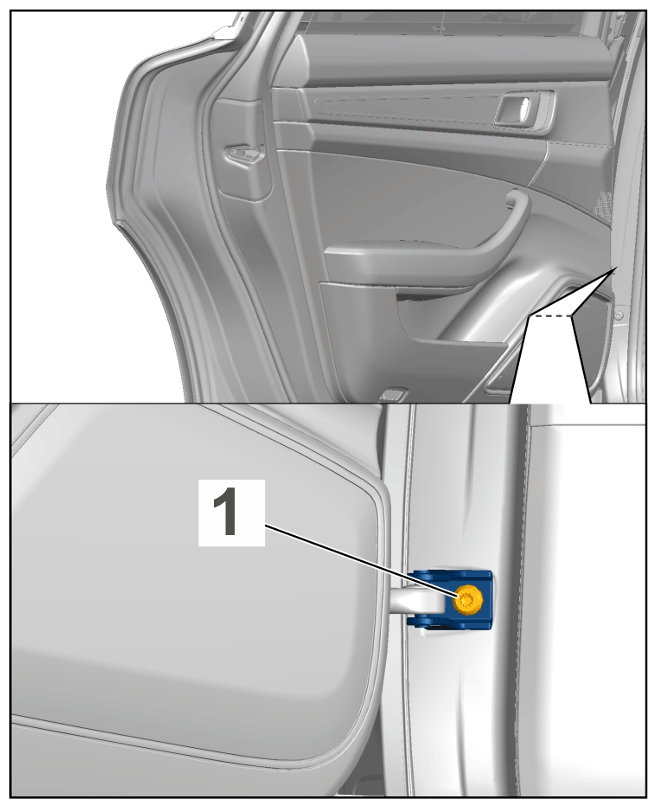

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for door arrester
