Technical Values: Overview

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Des... Type Basic val... Toleranc... Toleranc...

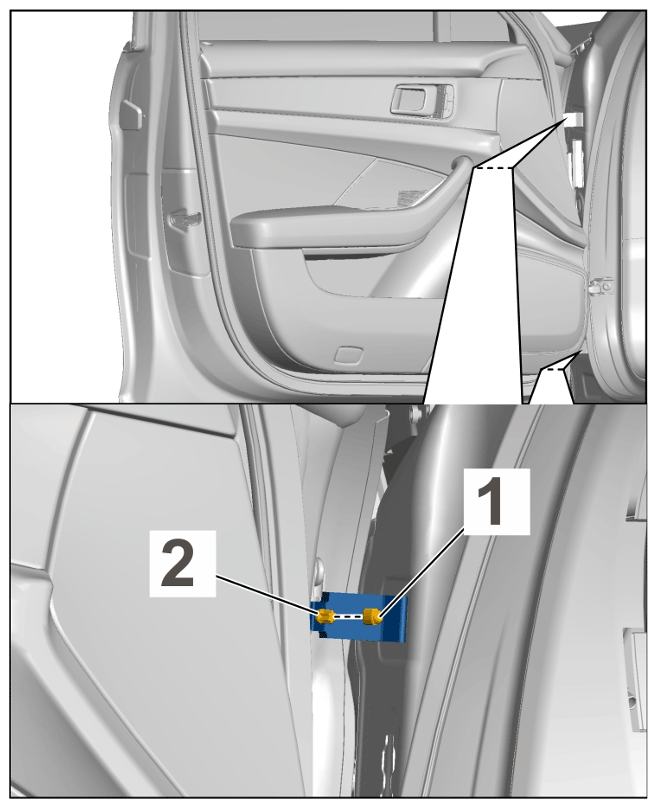

Fastening screws for door hinge Item 2 Tightening torque 27 Nm (20 ftlb.) +/- 3.5 Nm (2.5 ftlb.)
G15863552Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for door hinge

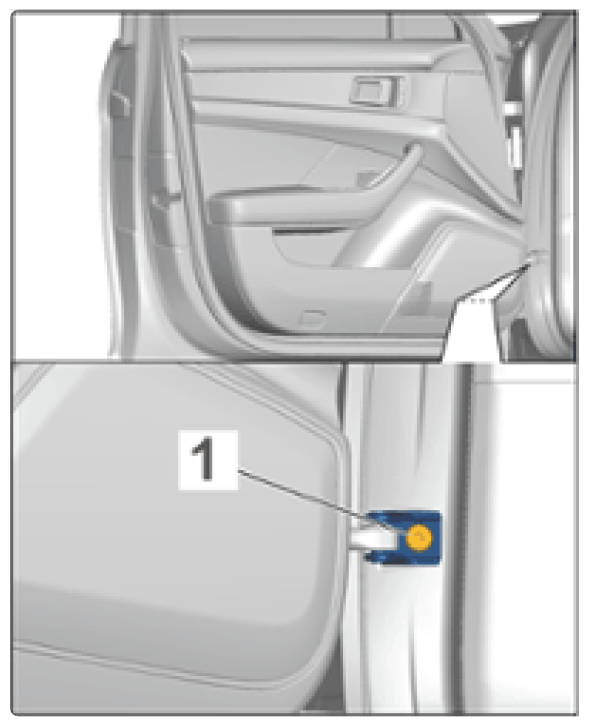

Fastening screw for door arrester Item 1 Tightening torque 33 Nm (24 ftlb.)
G15863553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for door arrester

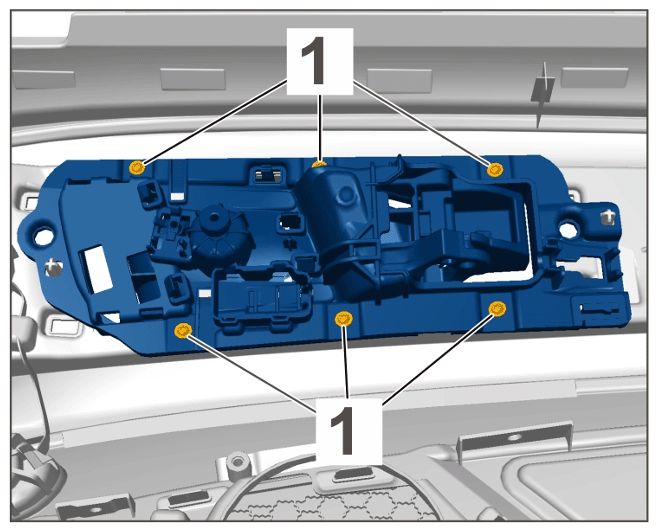

Door opener Item 1 Tightening torque 2.3 Nm (2 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
G15863554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door opener

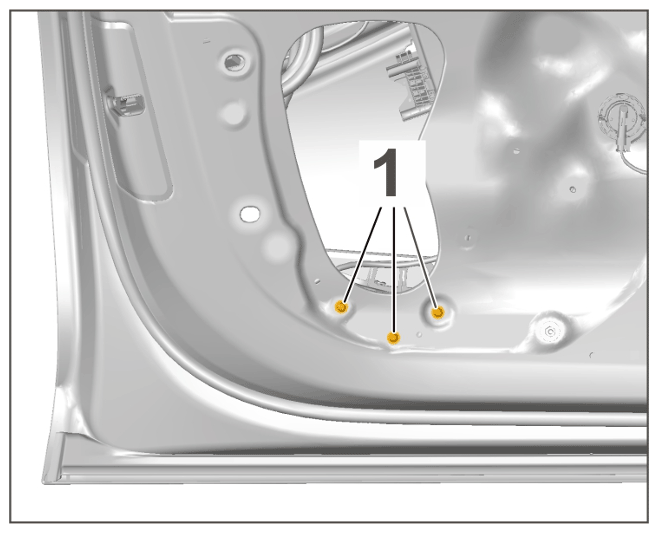

Closing aid to basic door frame Item 1 Tightening torque 3.5 Nm (2.5 ftlb.)
G15863555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for closing aid

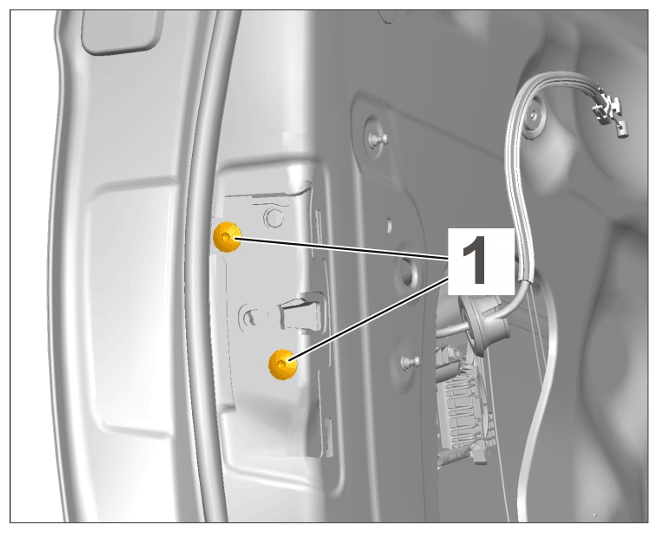

Door lock to bodyshell Item 1 Tightening torque 20 Nm (15 ftlb.)
G15863556Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

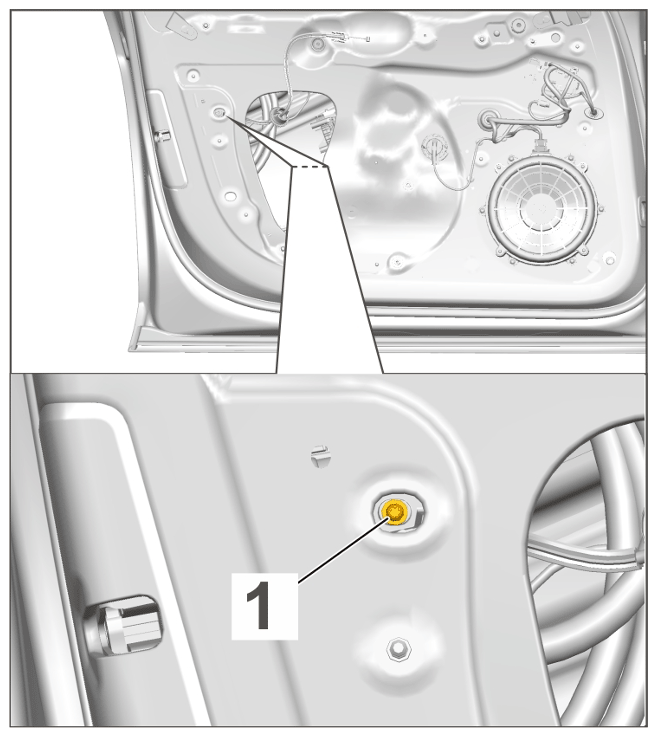

Door lock to guide rail Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863557Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

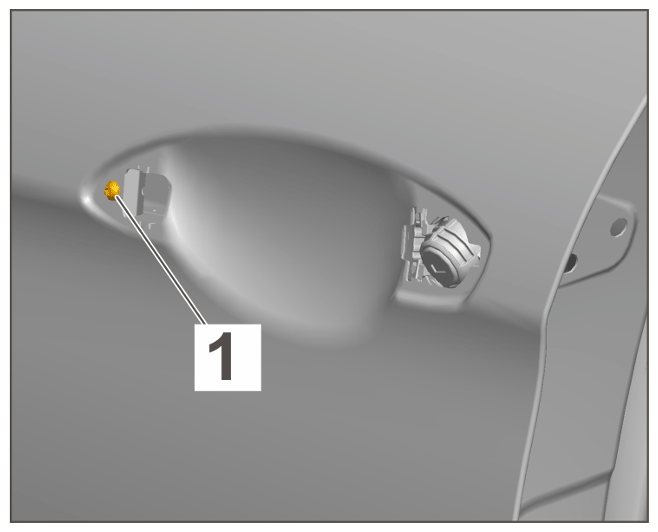

Fastening screw door handle Pos. 1 Tightening torque 1.5 Nm (1.1 ftlb.)
G15863558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

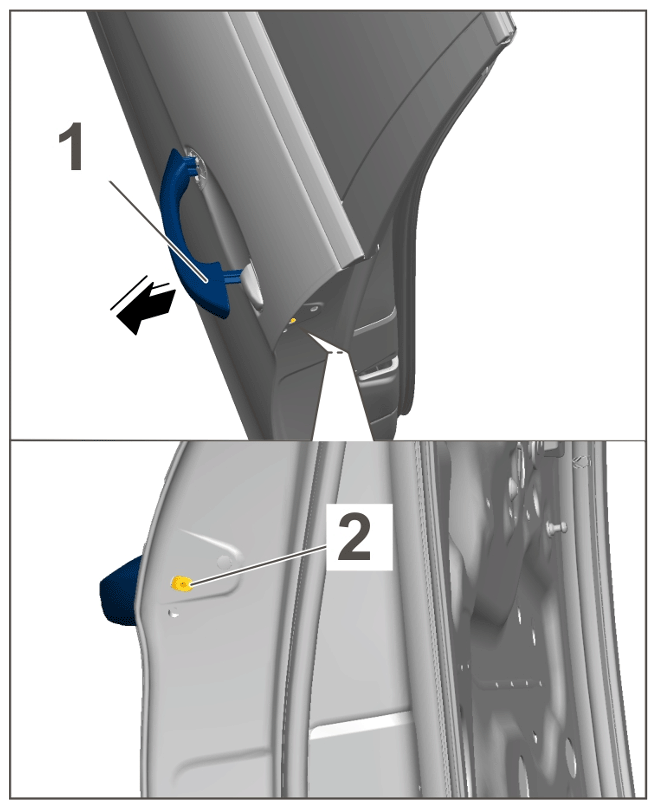

Adjusting bolt for door handle in service position Pos. 1 Tightening torque 5 Nm (3.7 ftlb.)
G15863559Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door handle in service position

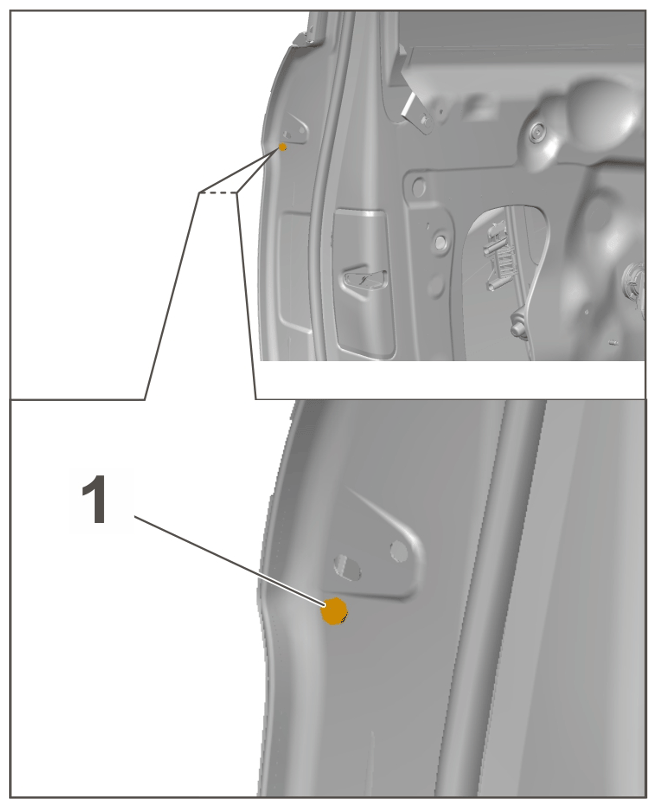

Tighten fastening screw for door handle in service position Pos. 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

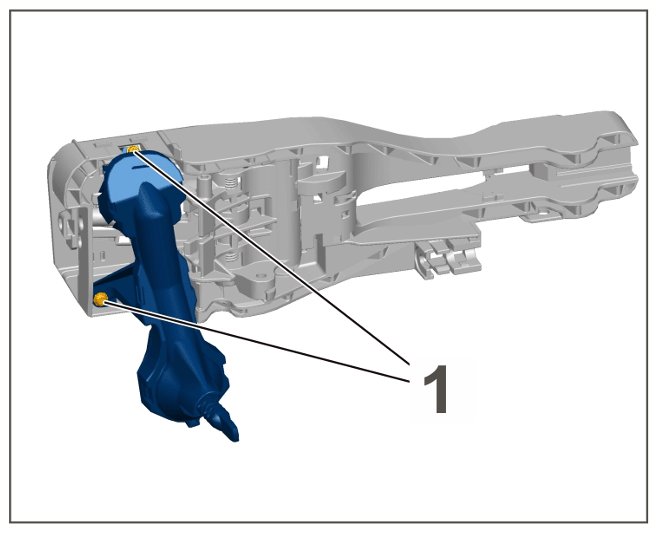

Deflection unit on door handle Pos. 1 Tightening torque 1.3 Nm (1 ftlb.)
G15863561Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Screw trim panel Pos. 1 Tightening torque 0.7 Nm (0.5 ftlb.)
G15863562Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

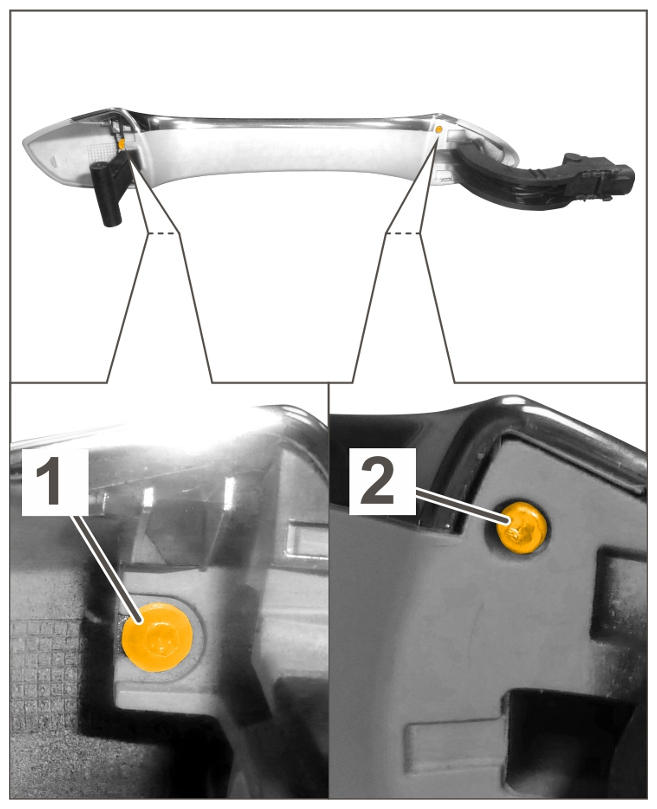

Screw trim panel Pos. 2 Tightening torque 0.22 Nm (0.2 ftlb.)
G15863563Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

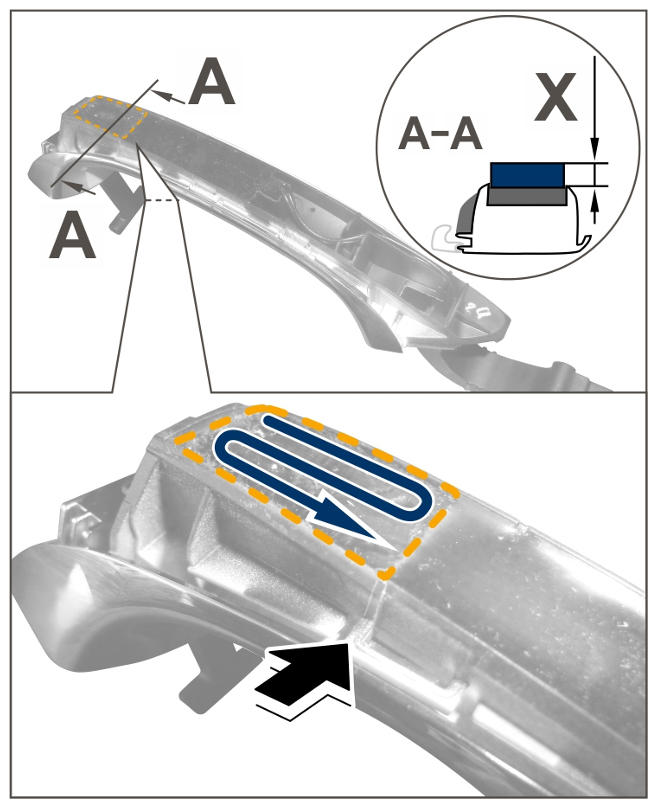

Door handle seal Kessy Pos. X Application depth 7 mm
G15863564Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door handle adhesive
Fastening nut securing door hinge to body Item 1 Tightening torque 60 Nm (44 ftlb.)
G15863565Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Fastening screw securing door hinge to body Item 2 Tightening torque 60 Nm (44 ftlb.)
G15863566Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Fastening screw securing door hinge to door Item 1 Tightening torque 55 Nm (41 ftlb.)
G15863567Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on door side)

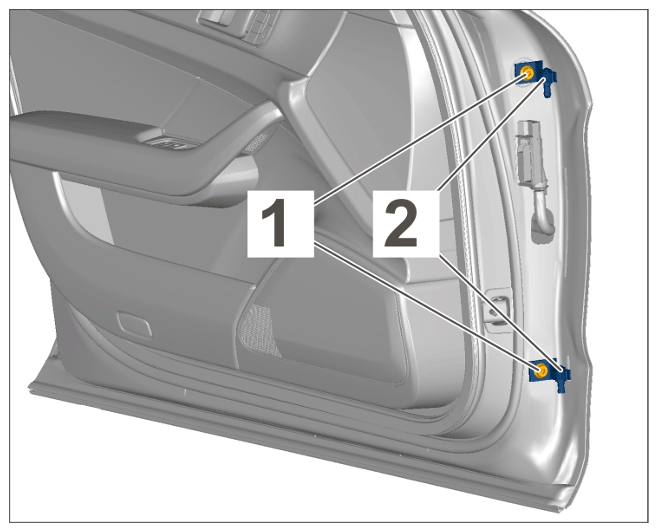

Fastening screw securing door hinge to door Item 1 Tightening torque 55 Nm (41 ftlb.)
G15863568Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on door side)

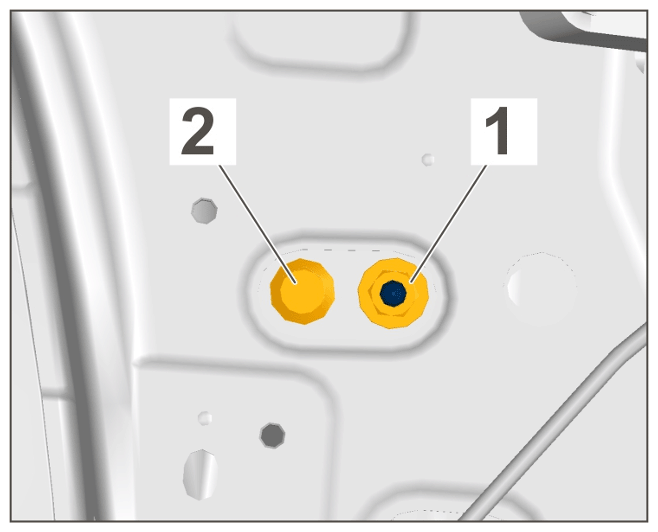

Fastening nut securing door hinge to body Item 1 Tightening torque 60 Nm (44 ftlb.)
G15863569Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)
Fastening screw securing door hinge to body Item 2 Tightening torque 60 Nm (44 ftlb.)
G15863570Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge (on body side)

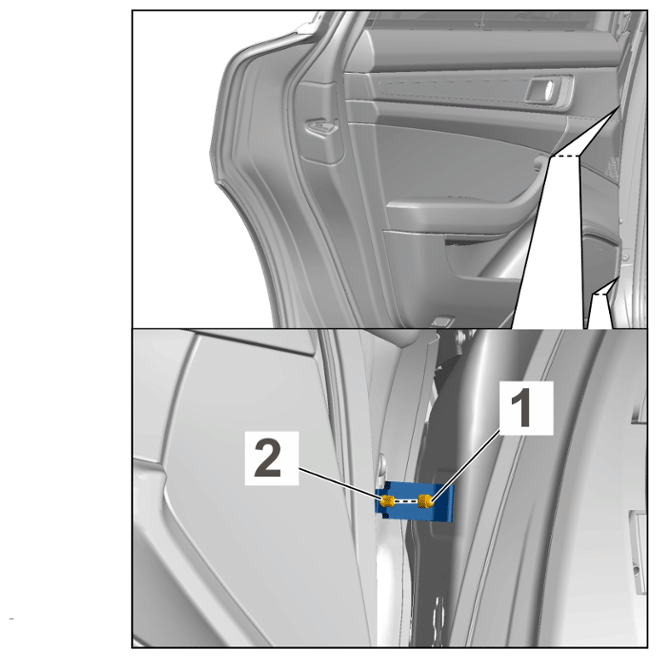

Fastening screws for door hinge Item 2 Tightening torque 27 Nm (20 ftlb.) +/- 3.5 Nm (2.5 ftlb.)
G15863571Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for door hinge

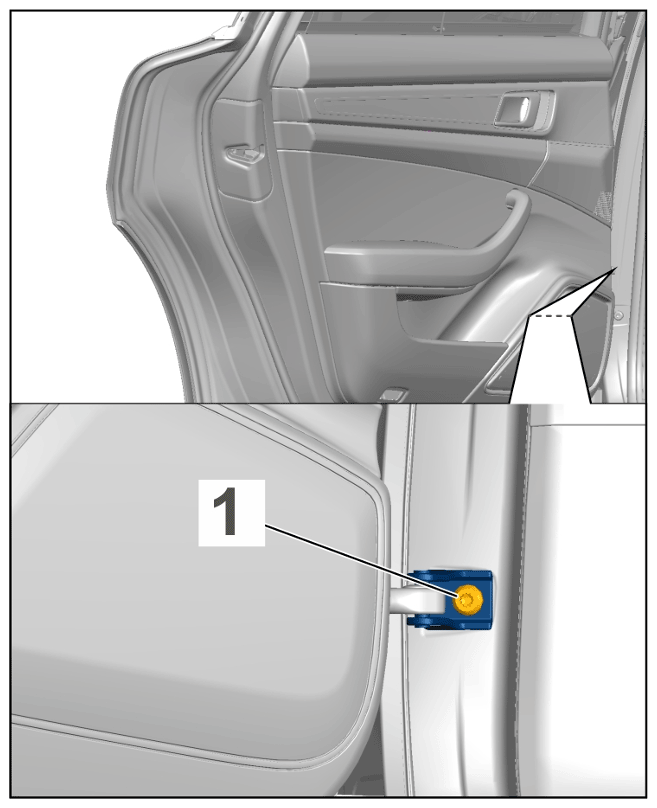

Fastening screw for door arrester Item 1 Tightening torque 33 Nm (24 ftlb.)
G15863572Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for door arrester
Door lock to bodyshell Item 1 Tightening torque 20 Nm (15 ftlb.)
G15863573Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

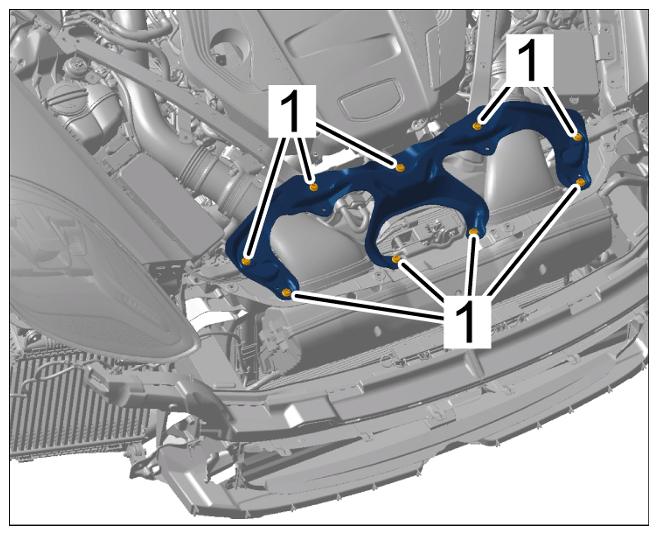

Screw securing reinforcement to module carrier Item 1 Tightening torque 20 Nm (15 ftlb.)
G15863574Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Reinforcement on module carrier

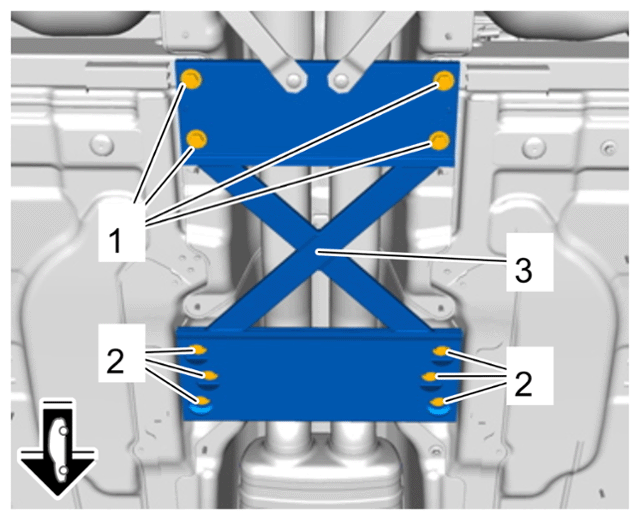

Screws for reinforcement strut on tunnel bridge Items 1 and 2 Tightening torque 50 Nm (37 ftlb.)
Location Des... Type Basic val... Toleranc... Toleranc...
G15863575Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for reinforcement strut on tunnel bridge

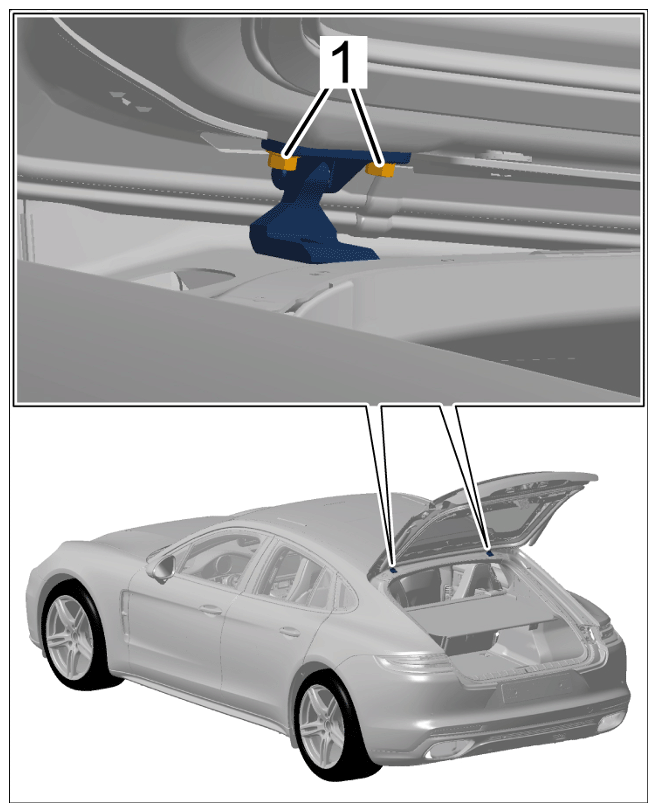

Screws securing tailgate hinge to rear lid Item 1 Tightening torque 10 Nm (7.4 ftlb.)
G15863576Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing tailgate hinge to rear lid

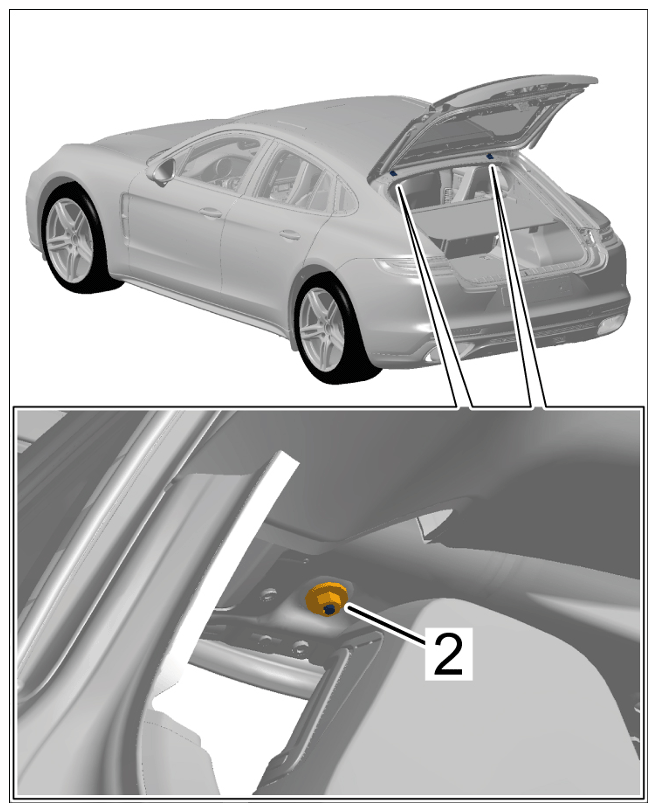

Nut on rear tailgate hinge Item 2 Tightening torque 20 Nm (14.8 ftlb.)
G15863577Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on rear tailgate hinge

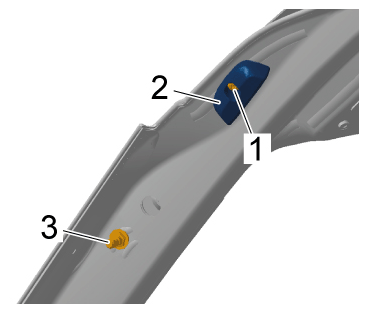

Rear lid adjusting element screw Item 1 Tightening torque 6 Nm (4.4 ftlb.)
G15863578Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for rear lid adjusting element

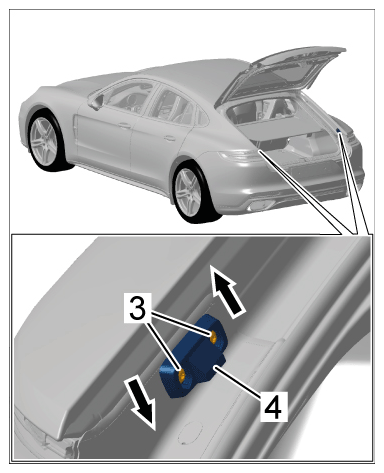

Rear cover adjuster screws Item 3 Tightening torque 6 Nm (4.4 ftlb.)
G15863579Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening bolts
Rear cover ball pin Item 3 Tightening torque 23 Nm (17 ftlb.)
G15863580Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball pin on rear lid

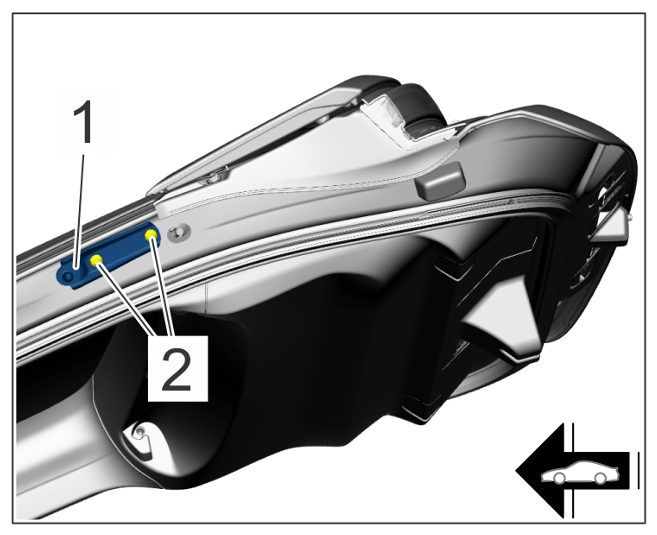

Screws securing ball joint holder to rear cover Item 2 Tightening torque 10 Nm (7.4 ftlb.)
G15863581Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball joint

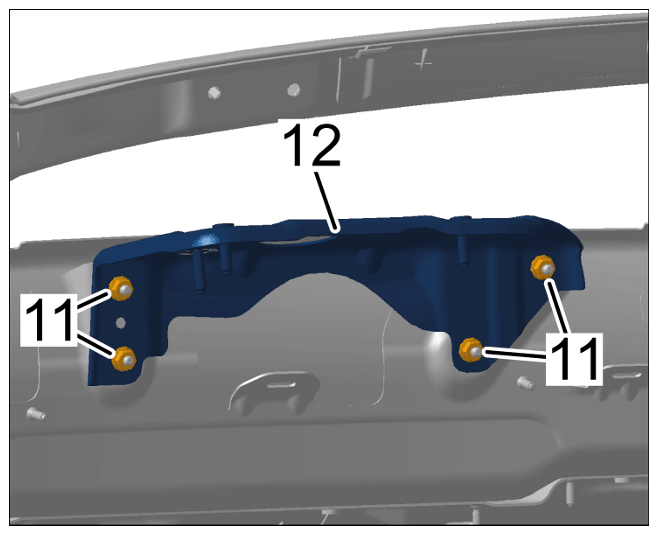

Nut on wiper motor holder Item 11 Tightening torque 8 Nm (5.9 ftlb.)
G15863582Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing retaining bracket for windscreen wiper motor

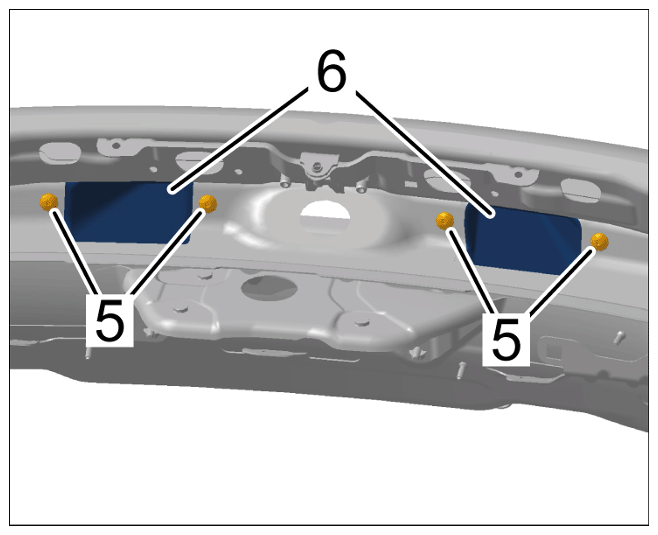

Screw for water drain sleeve on spoiler drive Item 5 Tightening torque 4 Nm (3 ftlb.)
G15863583Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for water drain sleeve on spoiler drive

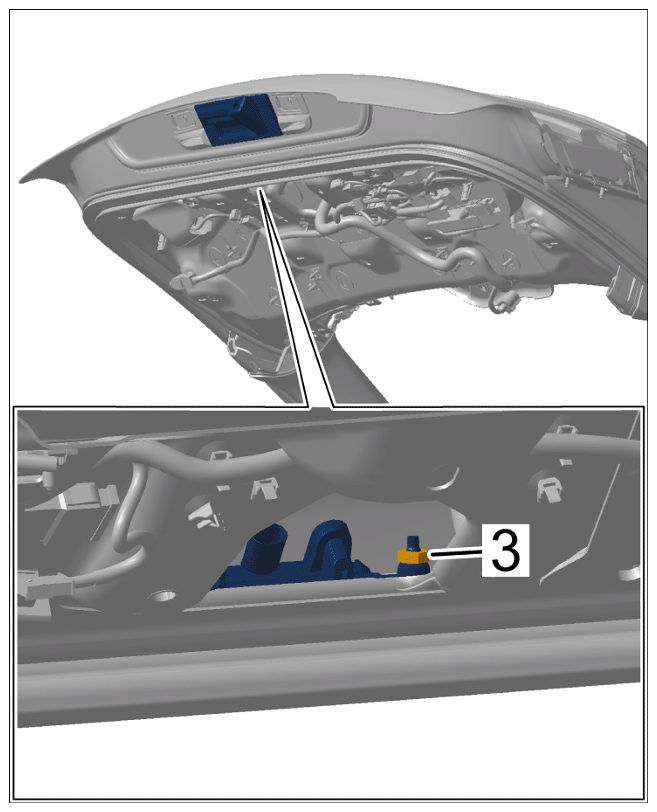

Nut on rear lid release Item 3 Tightening torque 4 Nm (3 ftlb.)
G15863584Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on rear lid release

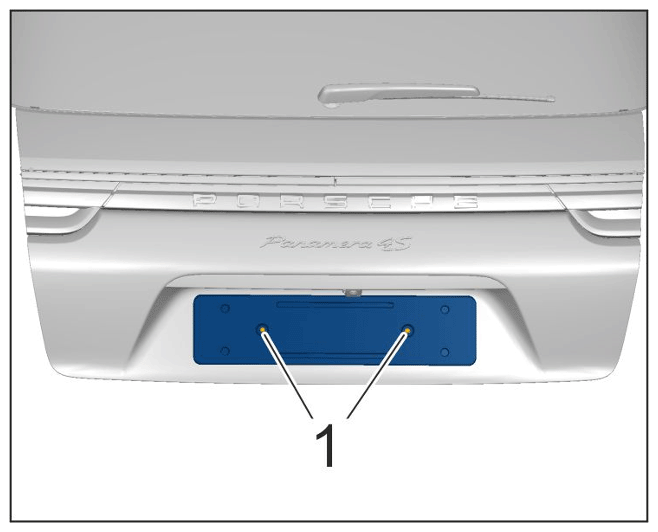

Number plate trim for Sport Turismo   Tightening torque 2.5 Nm (1.8 ftlb.) +/- 10 %
G15863585Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate trim

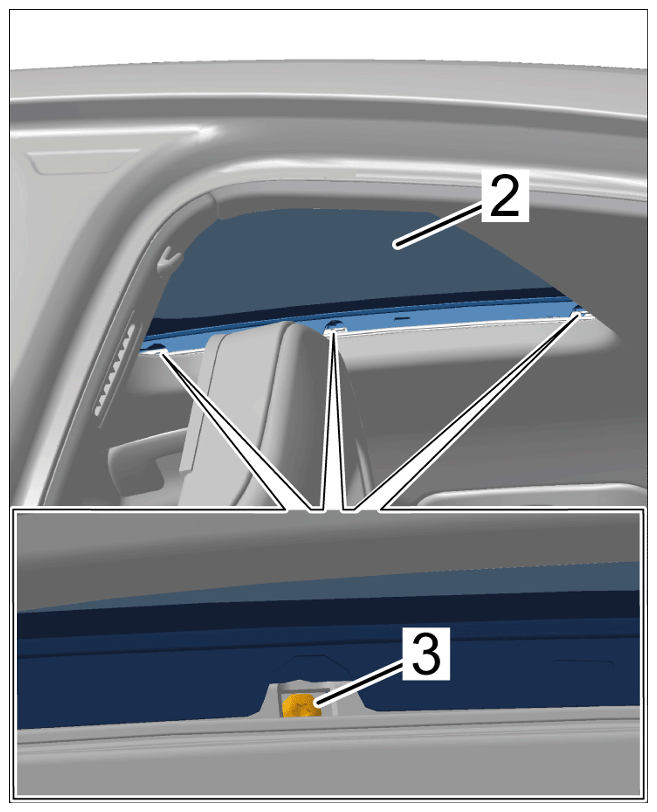

Screw securing sliding-roof panel to guide rail Item 3 Tightening torque 0 Nm (0 ftlb.)
G15863586Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sliding-roof panel

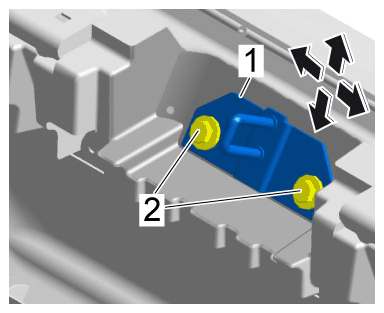

Screws on lower part of lock Item 2 Tightening torque 20 Nm (15 ftlb.)
G15863587Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of lid lock

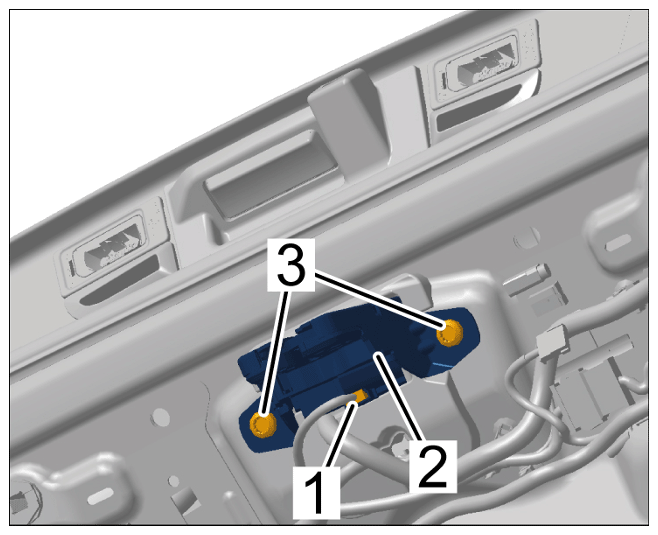

Screws on upper part of lock Item 3 Tightening torque 20 Nm (15 ftlb.)
G15863588Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock

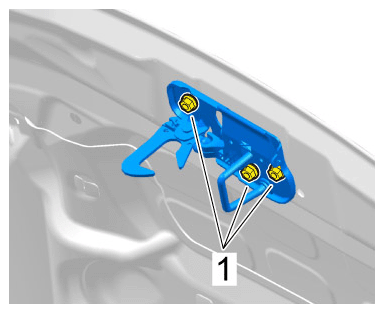

Nuts securing upper part of lock to front lid Item 1 Tightening torque 12 Nm (8.9 ftlb.)
G15863589Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing upper part of lock to front lid

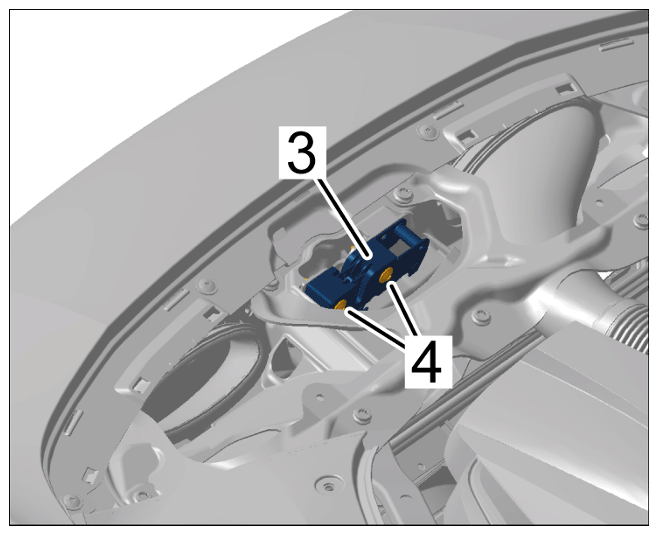

Screws securing front lock lower part to lock carrier Item 4 Tightening torque 13.5 Nm (10 ftlb.)
G15863590Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing front lock lower part to lock carrier

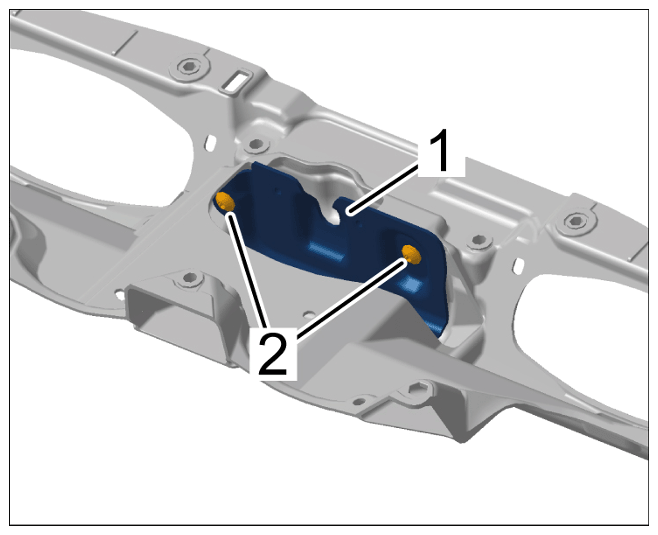

Screw securing lock reinforcement to lock carrier Item 2 Tightening torque 13 Nm (9.6 ftlb.)
G15863591Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing panel on lower part of lid lock

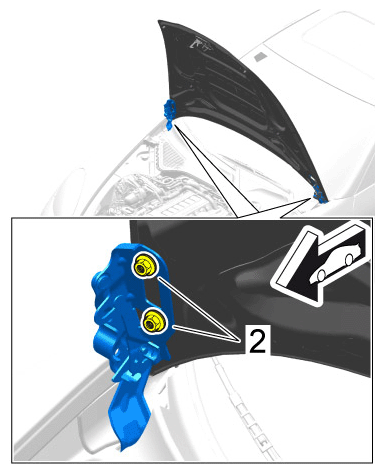

Nuts securing hinge to front cover item 2 Tightening torque 20 Nm (15 ftlb.) (14.8 ftlb.)
G15863592Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing hinge to front lid

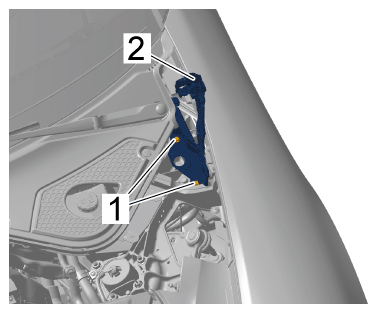

Screws securing hinge bracket to body item 1 Tightening torque 23 Nm (17 ftlb.) (17 ftlb.)
G15863593Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing hinge bracket to body
Screw securing upper part of plenum panel at the centre to A-strut Item 1 Tightening torque 8 Nm (6 ftlb.) +/- 15 %
G15863594Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for A-strut

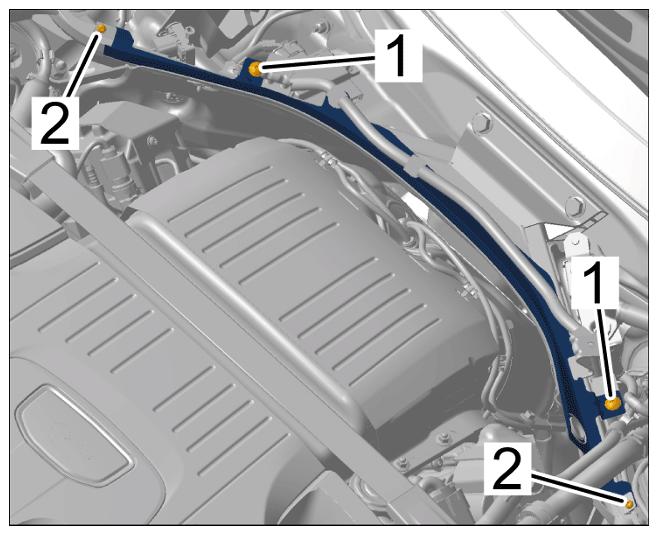

Screw securing upper part of plenum panel at the side to centre plenum panel Item 2 Tightening torque 4 Nm (3 ftlb.) +/- 15 %
G15863595Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for A-strut

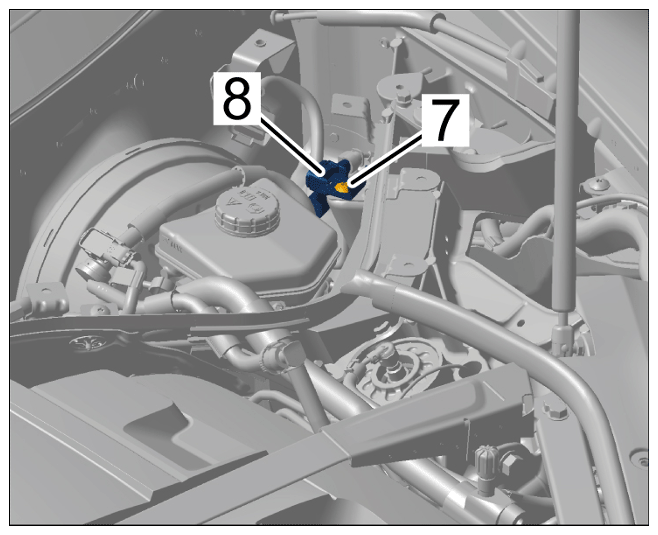

Screw securing upper part of plenum panel at the side to spring strut mount Item 7 Tightening torque 8 Nm (6 ftlb.) +/- 15 %
G15863596Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing side plenum panel to spring strut mount

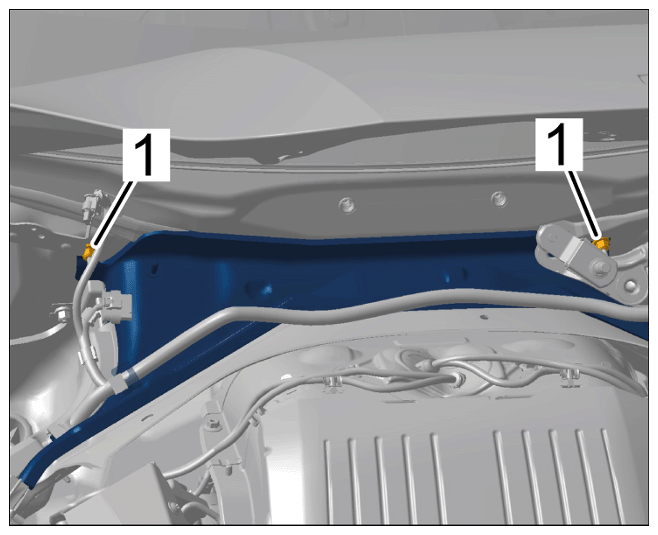

Nut securing cross panel to firewall Item 1 Tightening torque 3.5 Nm (2.5 ftlb.) +/- 10 %
G15863597Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut securing cross panel to firewall

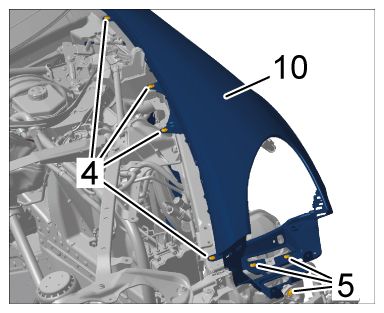

Screw securing front wing to bodyshell Item 4 Tightening torque 8 Nm (6 ftlb.)
G15863598Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing
Screw securing front wing to lock carrier Item 5 Tightening torque 8 Nm (6 ftlb.)
G15863599Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing
Screw securing front wing to A-pillar Item 9 Tightening torque 8 Nm (6 ftlb.)
G15863600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing to A-pillar

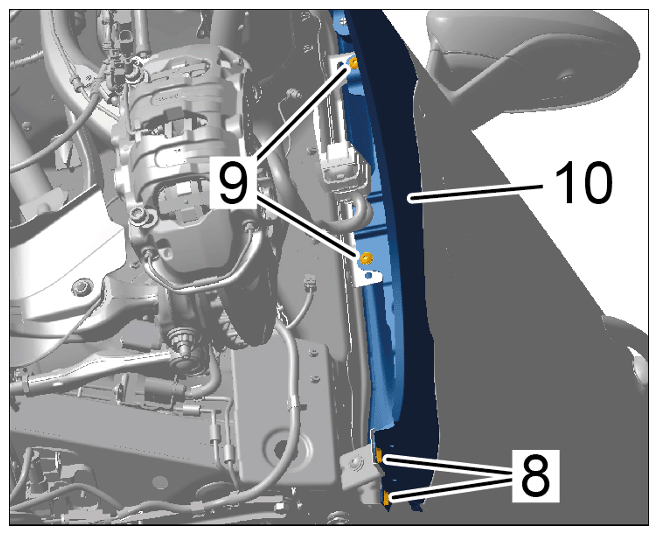

Nut securing front wing to door sill Item 8 Tightening torque 8 Nm (6 ftlb.)
G15863601Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing to door sill

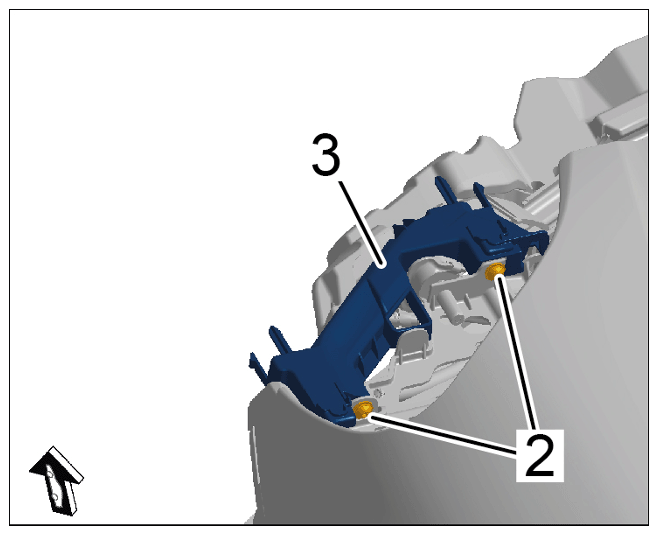

Screws securing headlight mounting to wing Item 2 Tightening torque 5.5 Nm (4 ftlb.)
G15863602Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing headlight mounting to wing

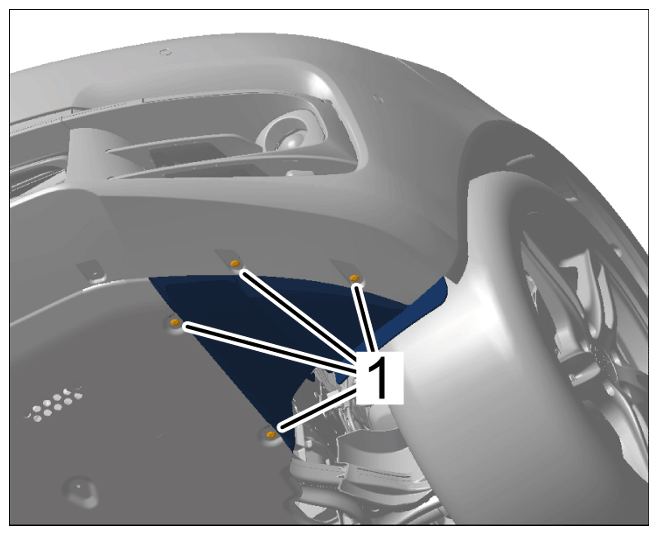

Screws on front part of front wheel housing liner, bottom Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863603Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on front part of front wheel housing liner at the bottom

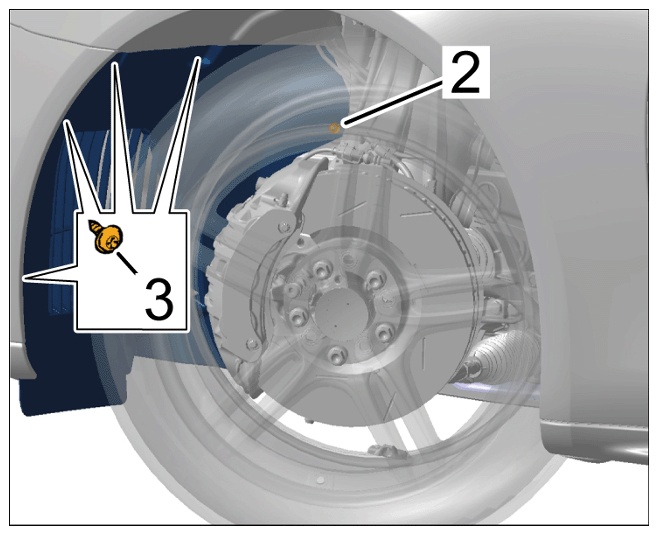

Nut and screws on front part of front wheel housing liner Items 2 and 3 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863604Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front part of front wheel housing liner

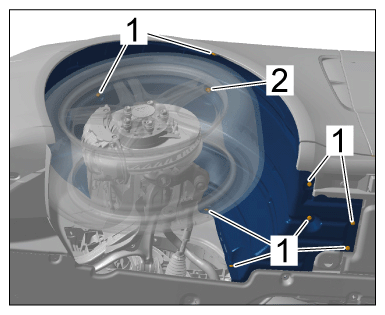

Screws and nut Items 1 and 2 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863605Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear part of front wheel housing liner

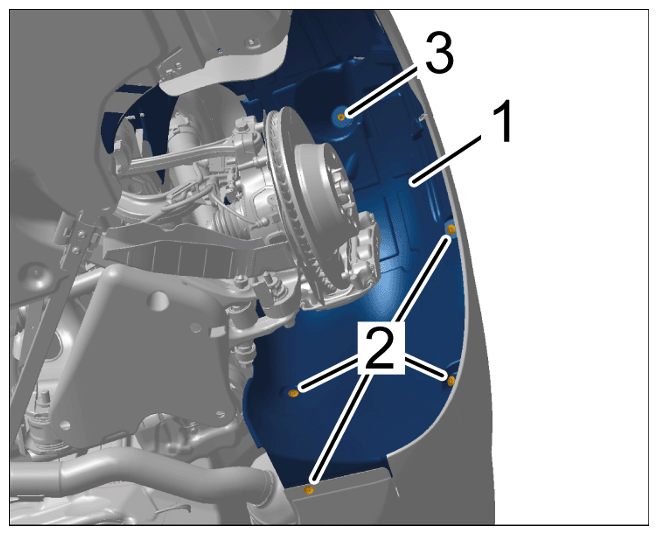

Nuts and screw on rear wheel housing liner Items 2 and 3 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863606Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner

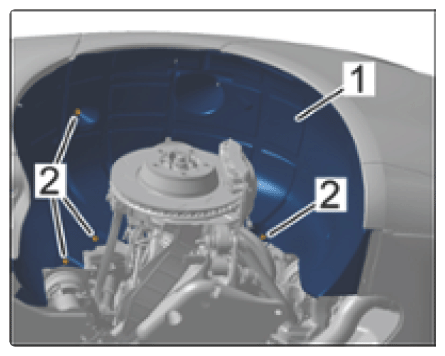

G15493830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner

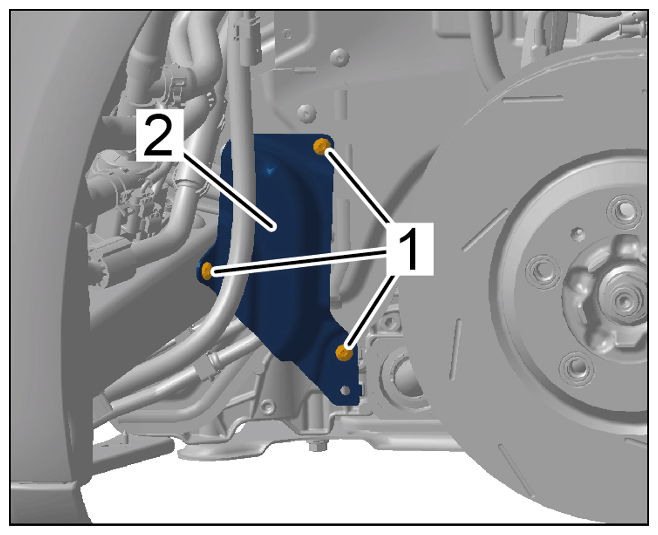

Screws for sheetmetal panel in wheel housing Item 2 Tightening torque 8 Nm (6 ftlb.)
G15863607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for sheetmetal panel in wheel housing

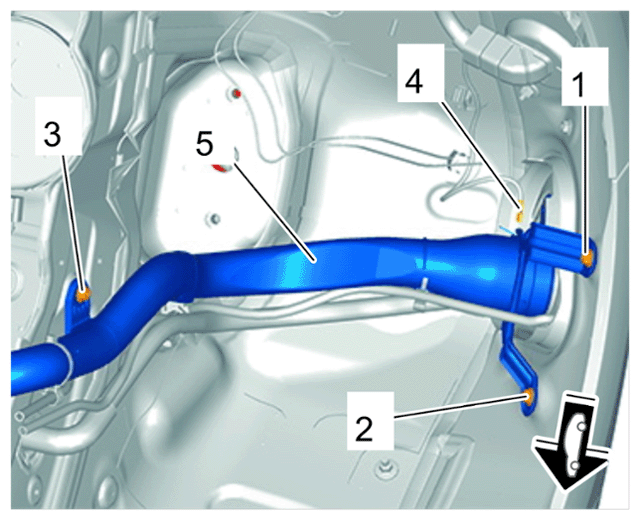

Fuel filler tube screws item. 1; Item. 2; Item. 3 Tightening torque 8 Nm (6 ftlb.)
G15863608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel filler tube holder

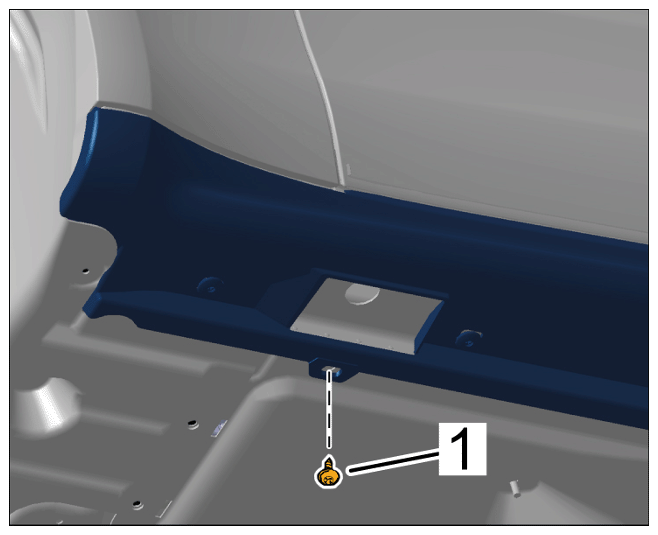

Screw securing side skirts to longitudinal member Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door entry guard

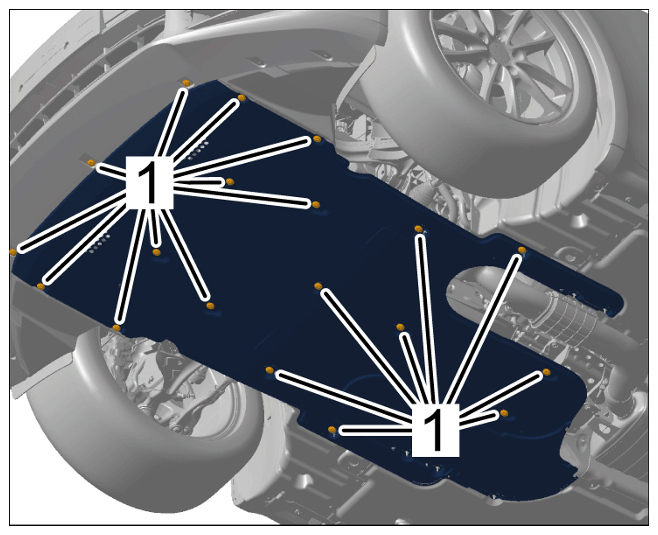

Screws for cover on front underbody Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863610Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for cover on front underbody

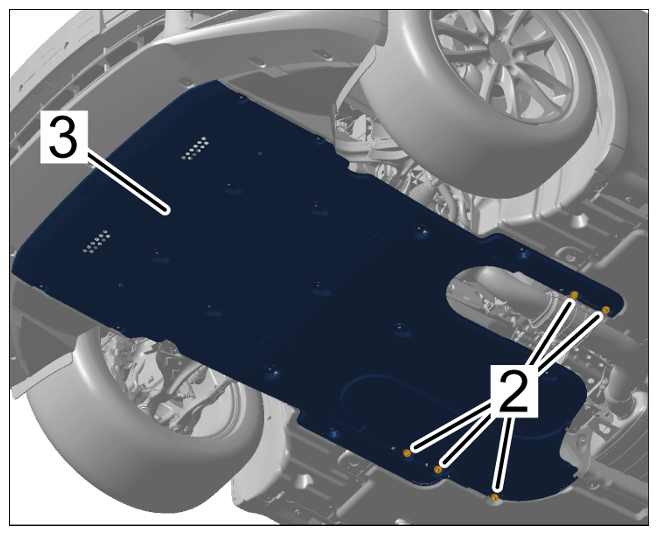

Nuts for cover on front underbody Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for cover on front underbody

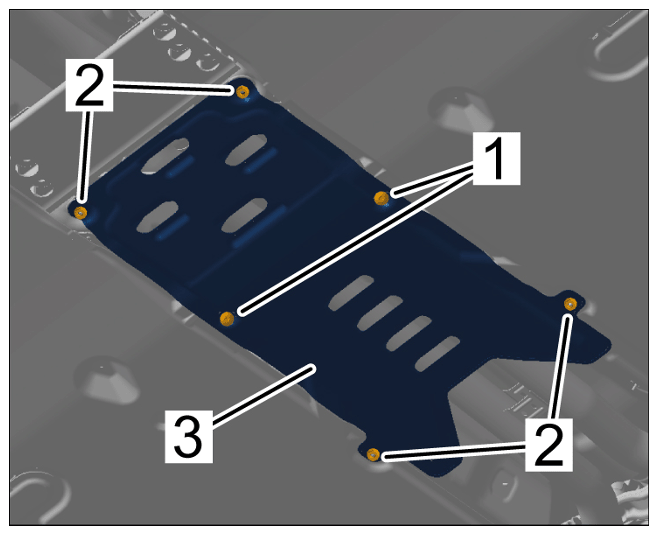

Screws for tunnel cover on centre underbody Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for tunnel cover on centre underbody cover
Nuts for tunnel cover on centre underbody cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for tunnel cover on centre underbody cover

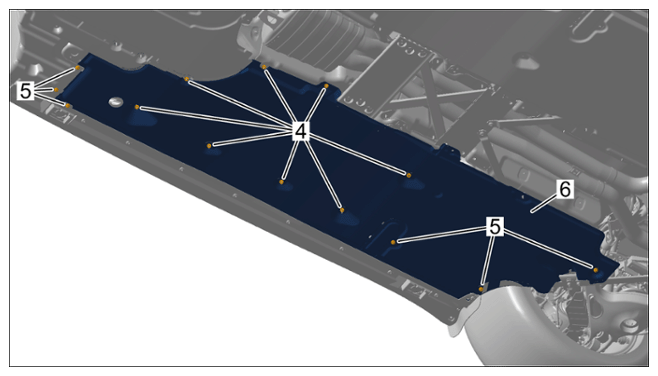

Nuts for centre underbody cover (at the sides) Item 4 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863614Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for centre underbody cover (at the sides)
Screws for centre underbody cover (at the sides) Item 5 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for centre underbody cover (at the sides)

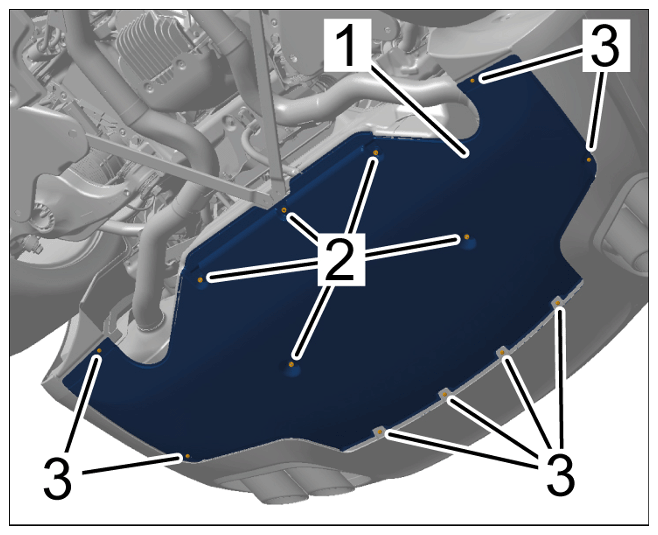

Nuts for rear underbody cover Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for rear underbody cover
Screws for rear underbody cover Item 3 Tightening torque 2.5 Nm (1.75 ftlb.)
G15863617Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for rear underbody cover

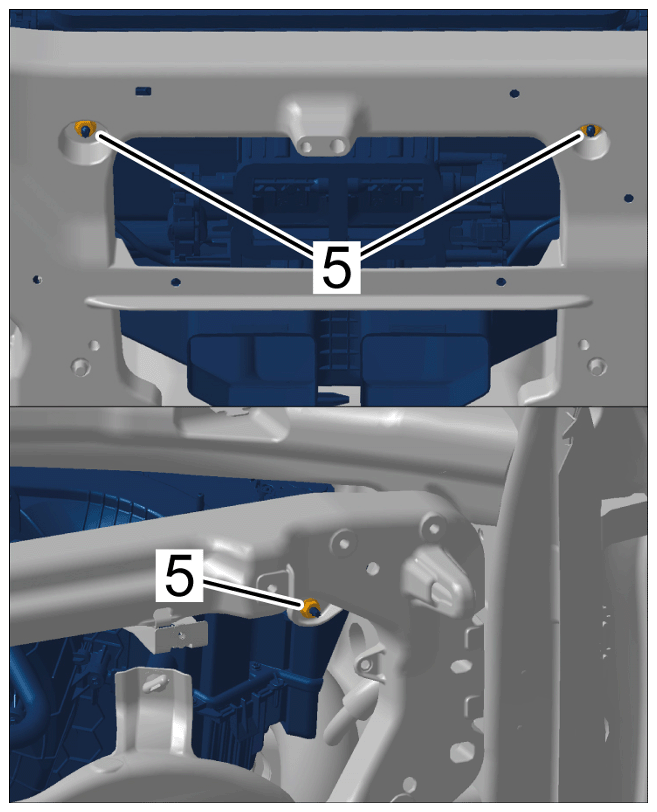

Nuts securing heating/fresh-air unit to dashboard bracket Item 5 Tightening torque 8 Nm (6 ftlb.)
G15863618Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing heating/fresh-air unit to dashboard bracket

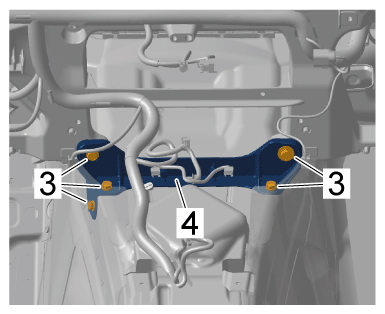

Screw securing centre support to dashboard bracket Item 3 Tightening torque 20 Nm (15 ftlb.)
G15863619Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing centre support to dashboard bracket

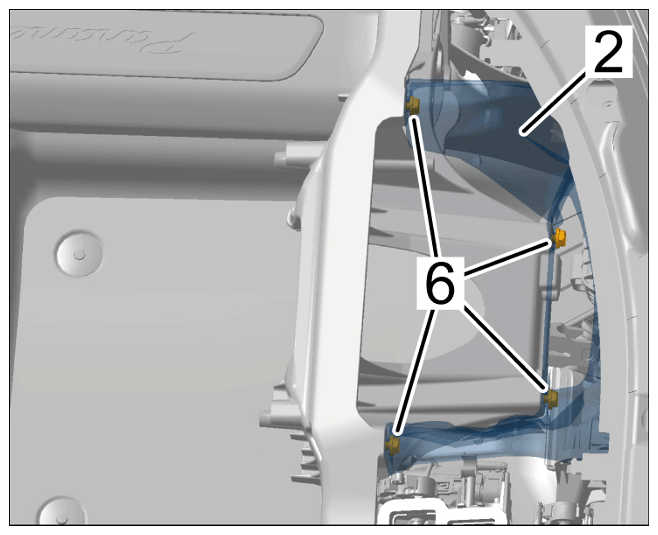

Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket) Item 6 Tightening torque 20 Nm (15 ftlb.)
G15863620Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing dashboard bracket (main bracket) to dashboard bracket (front bracket)

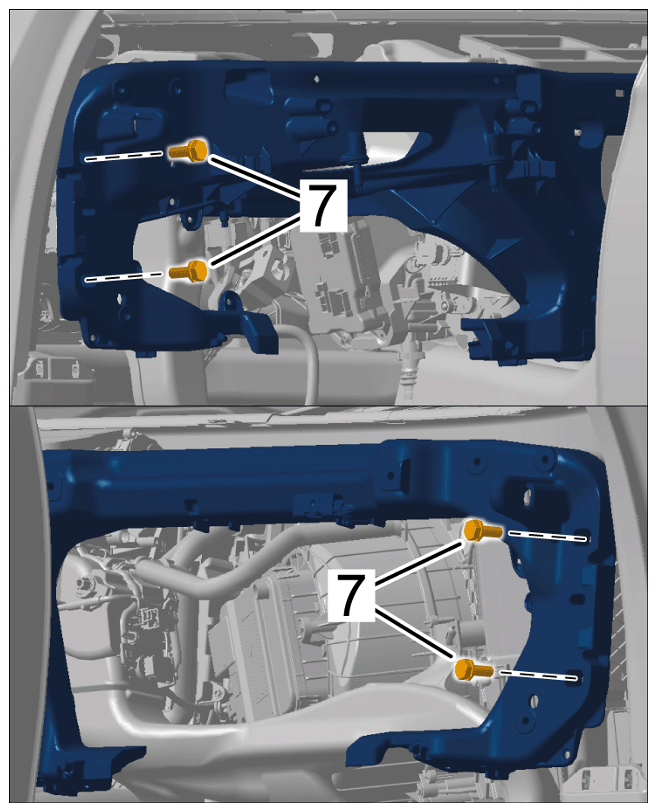

Screw on dashboard bracket (main bracket) Item 7 Tightening torque 13 Nm (9.5 ftlb.)
G15863621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on dashboard bracket (main bracket)

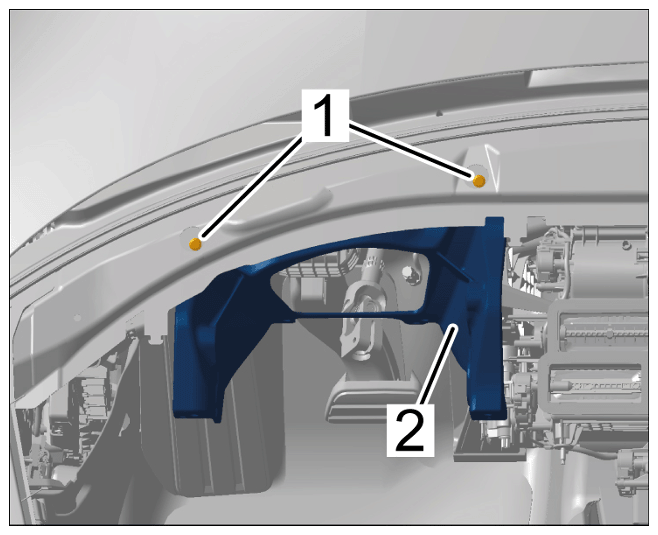

Screw on dashboard bracket (front bracket) Item 1 Tightening torque 16 Nm (12 ftlb.)
G15863622Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on dashboard bracket (front bracket)

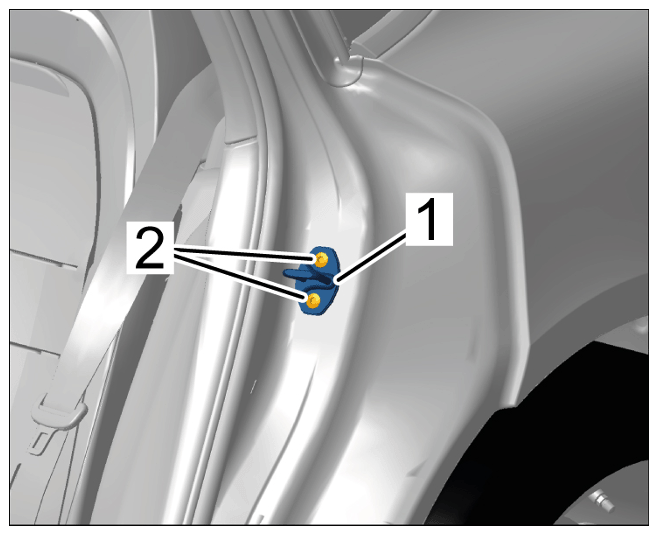

Screw on rear door lock peg Item 2 Tightening torque 25 Nm (19 ftlb.)
G15863623Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on rear door lock peg

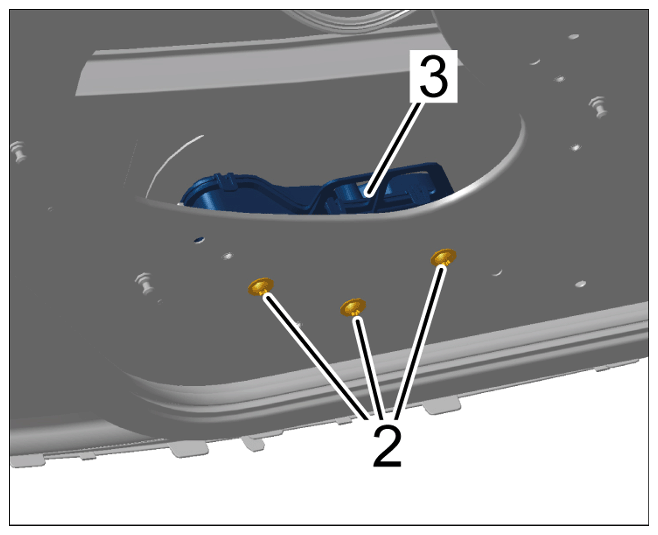

Screw securing closing aid motor to rear door Item 2 Tightening torque 7.4 Nm (5.5 ftlb.)
G15863624Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing closing aid motor to rear door

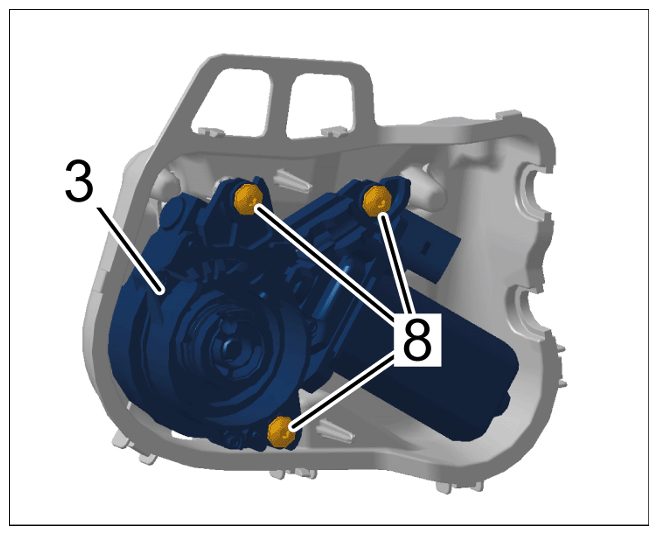

Screw for closing aid motor in housing Item 8 Tightening torque 7.4 Nm (5.5 ftlb.)
G15863625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing motor for closing aid

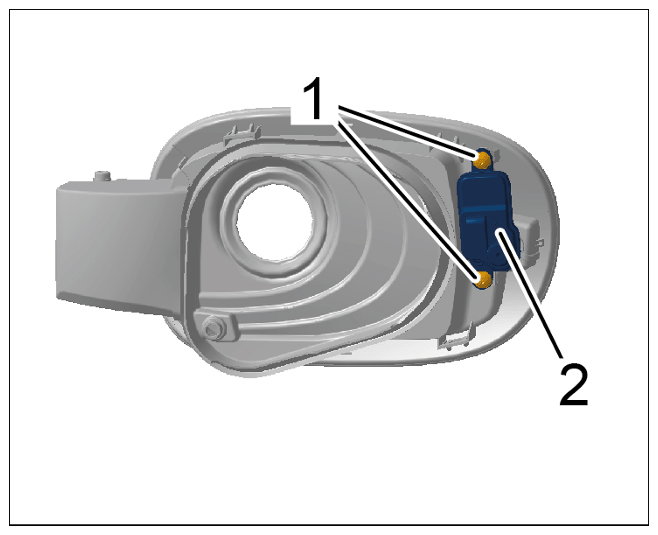

Screw securing filler flap switching element to filler flap Item 1 Tightening torque 1.5 Nm (1 ftlb.)
G15863626Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing filler flap switching element to filler flap

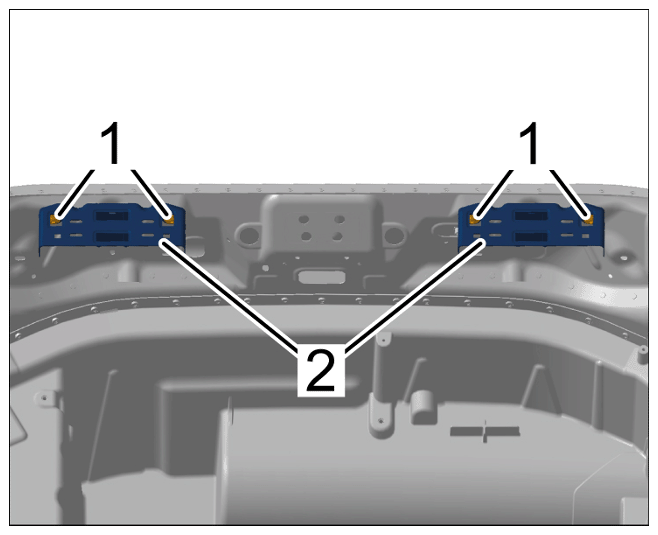

Screws securing holder to lock carrier Item 1 Tightening torque 8 Nm (6 ftlb.)
G15863627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing holder to lock carrier
scientia non olet · About LEMON Manuals
