Gap Dimensions Of Front Lid

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

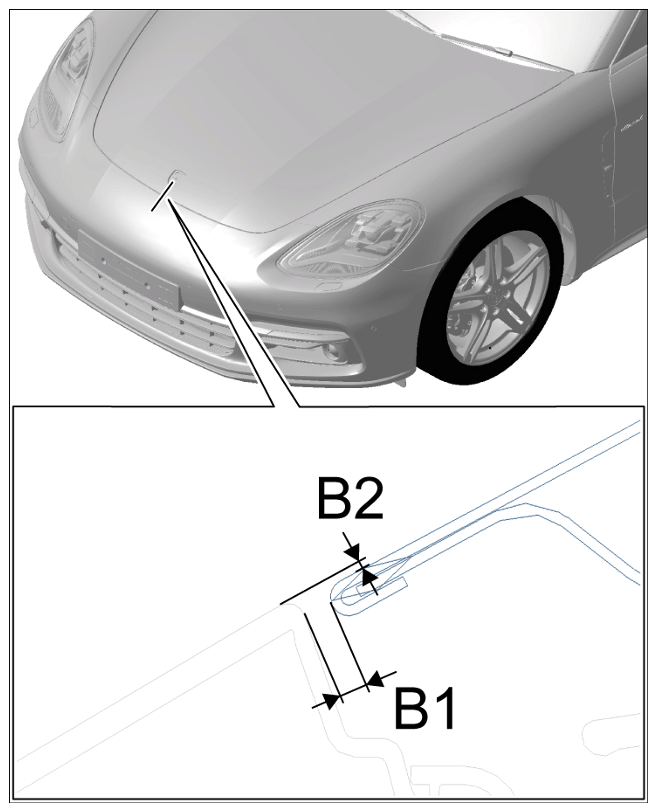

Front lid to front apron (B1)		Gap dimension	3.2 mm	+ 0.8 mm - 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to front apron (B2)	Offset	Gap dimension	- 1 mm - 0.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

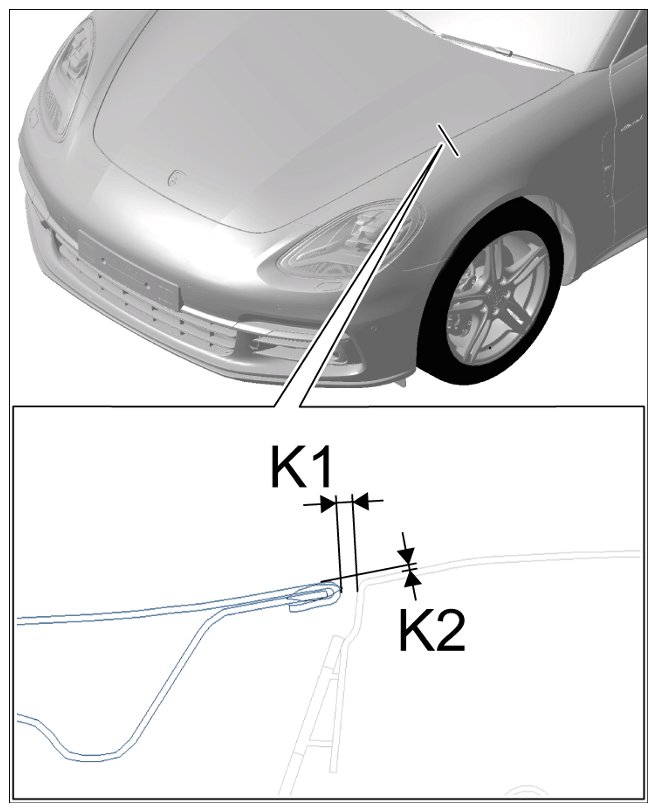

Front lid to wing (K1)		Gap dimension	3 mm	+/- 0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front lid to wing (K2)	Offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
