Gap Dimension Of Rear Spoiler

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

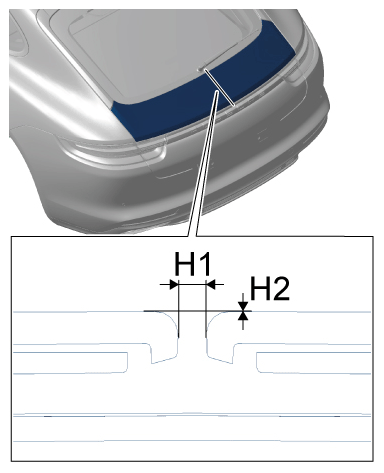

Rear spoiler to rear spoiler (H1)	Only for rear spoiler (wing)	Gap dimension	3 mm	+ 1.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear spoiler to rear spoiler
Rear spoiler to rear spoiler (H2)	Offset, only for rear spoiler (wing)	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from rear spoiler to rear spoiler

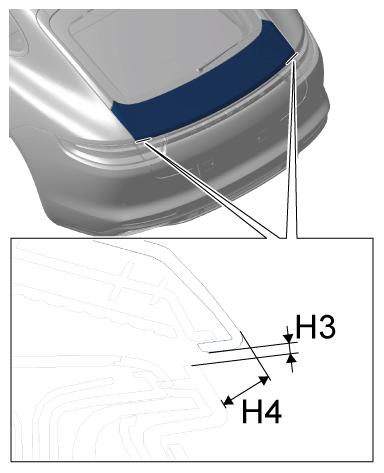

Tail light to rear spoiler (H3)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from tail light to rear spoiler
Tail light to rear spoiler (H4)	Offset	Gap dimension	> -10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension from tail light to rear spoiler

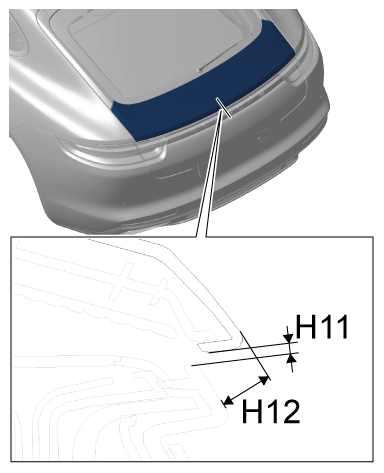

Rear spoiler to logo trim (H11)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to logo trim
Rear spoiler to logo trim (H12)	Offset	Gap dimension	> -10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to logo trim

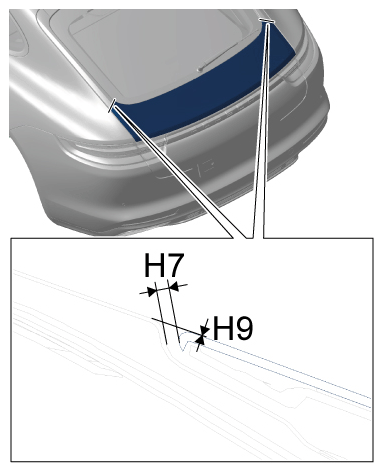

Rear spoiler to rear lid (H7)		Gap dimension	3 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid

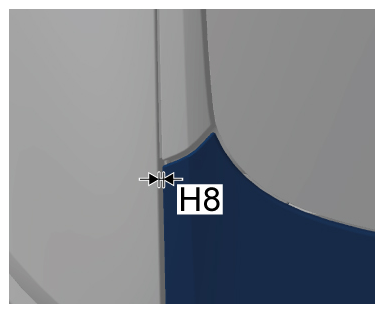

Rear spoiler to rear lid (H8)	Y offset	Gap dimension	0 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid
Rear spoiler to rear lid (H9)	Z offset	Gap dimension	0 mm	+ 0.5 mm - 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear spoiler to rear lid

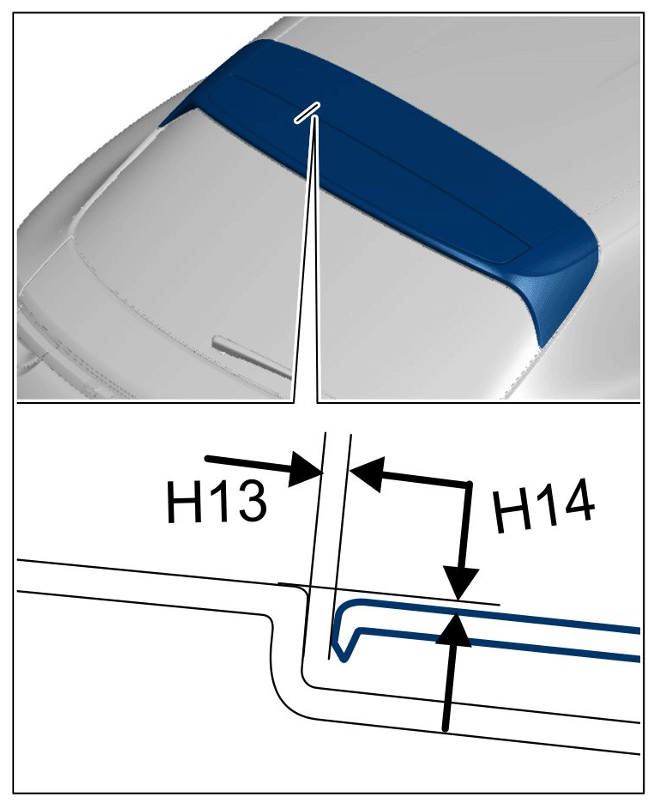

Rear spoiler (wing) to rear spoiler (H13)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H14)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

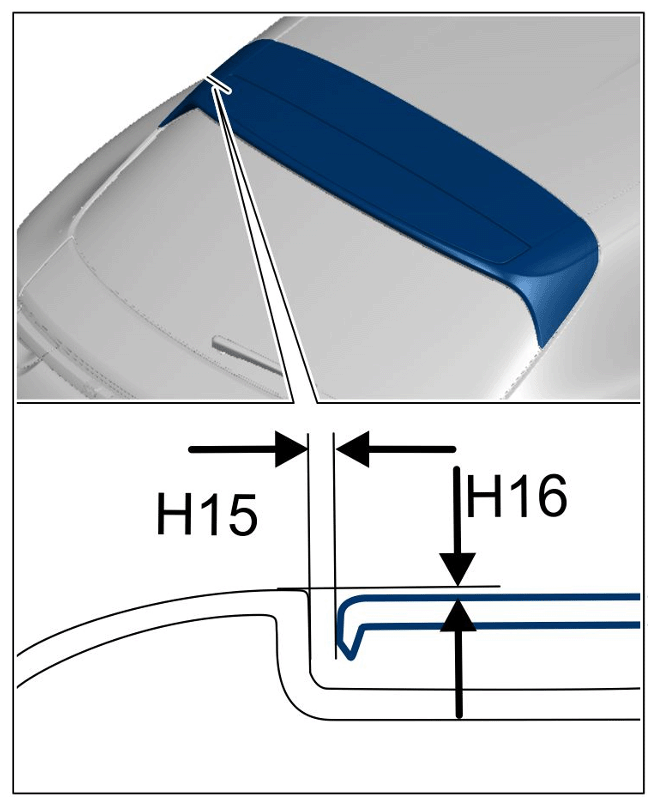

Rear spoiler (wing) to rear spoiler (H15)		Gap dimension	3.5 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H16)		Gap dimension	0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

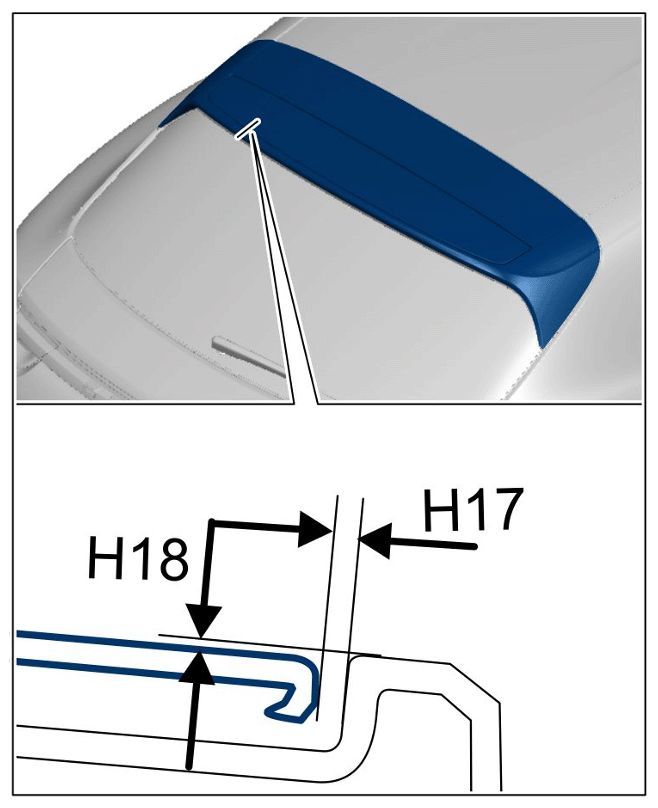

Rear spoiler (wing) to rear spoiler (H17)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear spoiler (wing) to rear spoiler (H18)	Running gap dimension	Gap dimension	0.5 mm - 0.3 mm	+/- 0.4 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
