Technical Values

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Drive shaft protective plate to rear axle housing (right with TPM control unit holder)	Item 2: Hexagon roundhead bolt M6 x 12	Tightening torque	8 Nm (5.9 ftlb.)

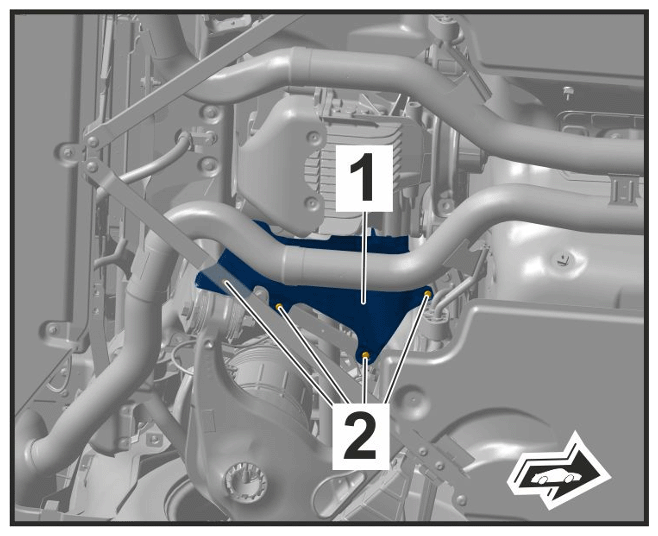

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for protective plate for drive shaft
Final drive to rear axle housing	Item 2: Hexagon-head bolt M12 x 95	Initial tightening	60 Nm (44.3 ftlb.)

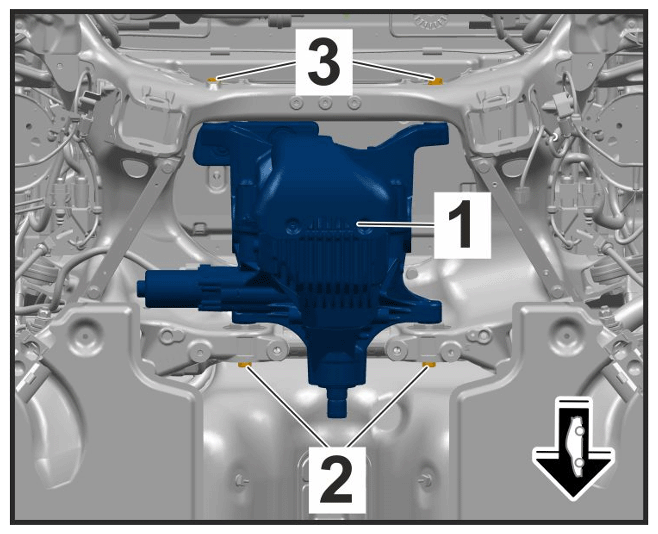

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Final drive mounting
Final drive to rear axle housing	Item 2: Hexagon-head bolt M12 x 95	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Final drive mounting
Support to rear axle housing	Item 2: Hexagon-head bolt M12 x 40/Always replace bolts after removal!	Initial tightening	70 Nm (51.6 ftlb.)

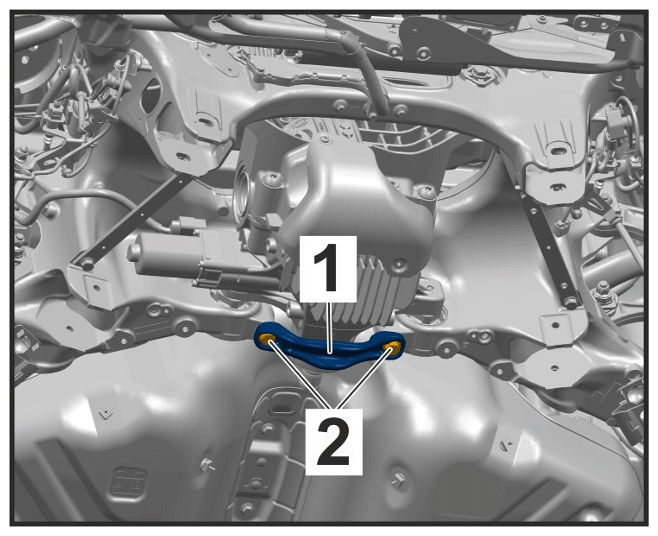

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for support
Support to rear axle housing	Item 2: Hexagon-head bolt M12 x 40/Always replace bolts after removal!	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for support
