Removing Rear Skirt

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

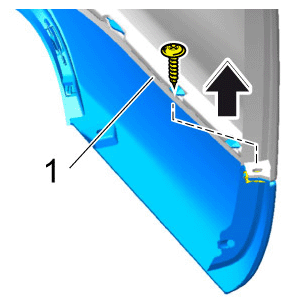

Unscrew and remove screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screw

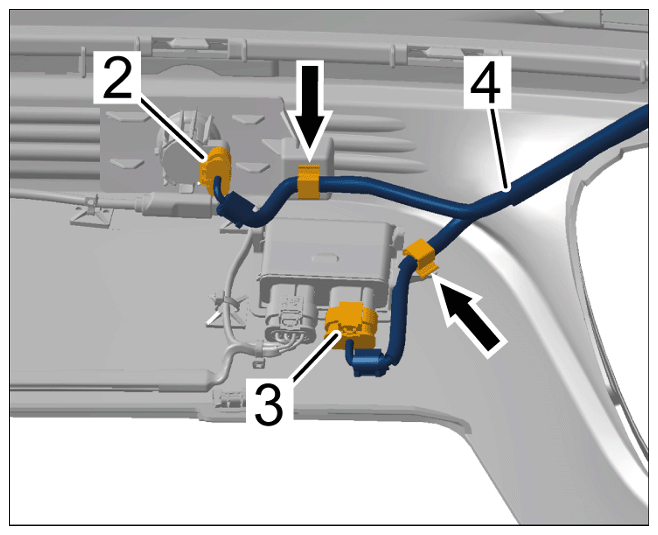

Release and disconnect electric plug connection for ParkAssist sensor -2- on the rear skirt.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection for ParkAssist sensor
Only for vehicles with KEYLESS ENTRY (I-no. 4F2 or 4F6):
Release and disconnect electric plug connection -3- on VIP control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on VIP control unit
Open line bracket -arrows- and move wire harness -4- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moving wire harness aside

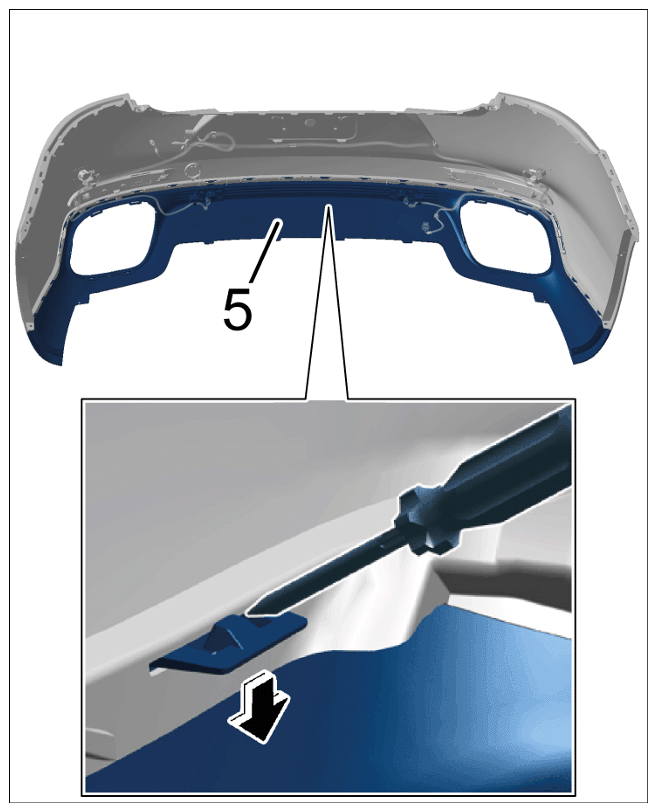

Release locking lugs all the way around -arrow- and remove rear skirt -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear skirt
