Technical Values

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

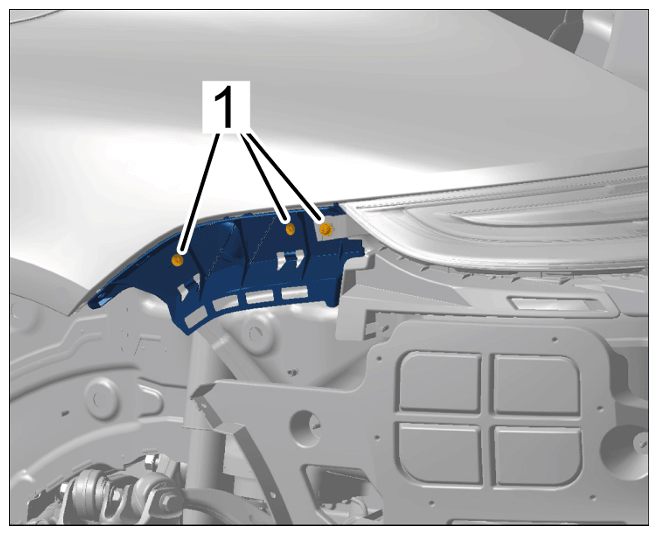

Screws for rear retaining strip side	Item 1	Tightening torque	3.5 Nm (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear retaining strip at the sides

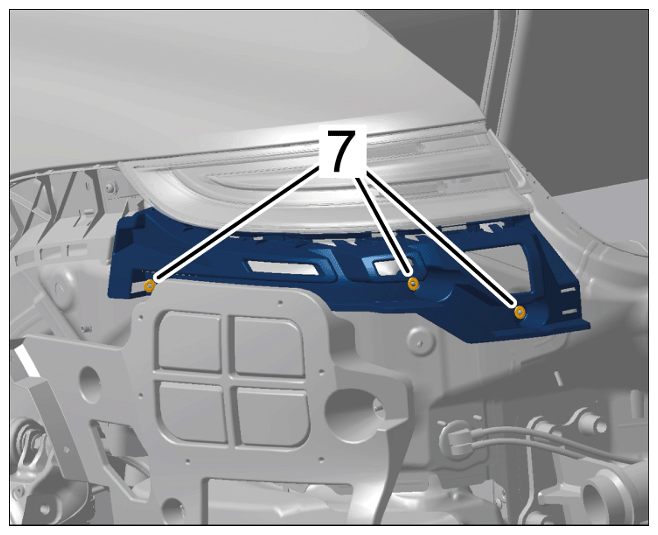

Nut on retaining strip for tail light	Item 7	Tightening torque	3.5 Nm (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for holder with heat protection

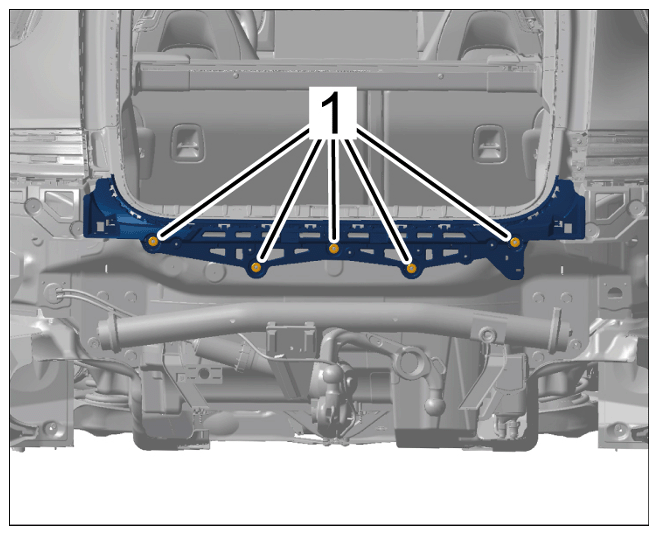

Nuts on centre retaining strip	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on centre retaining strip

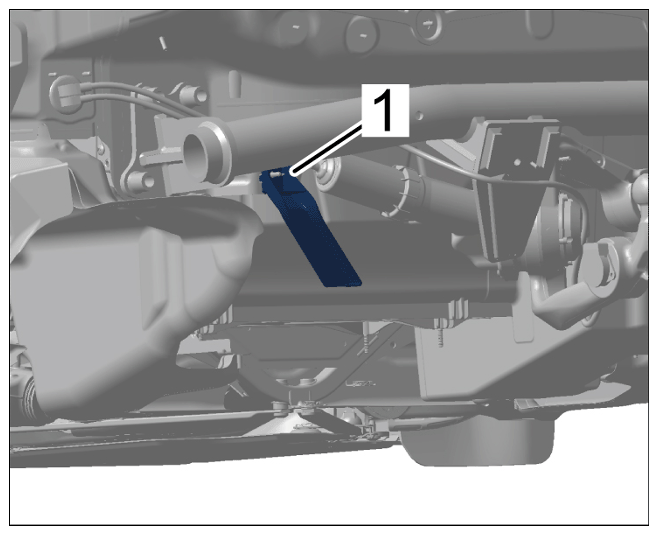

Nut on centre retaining strip bottom	Item 1	Tightening torque	3.5 Nm (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on centre retaining strip at the bottom

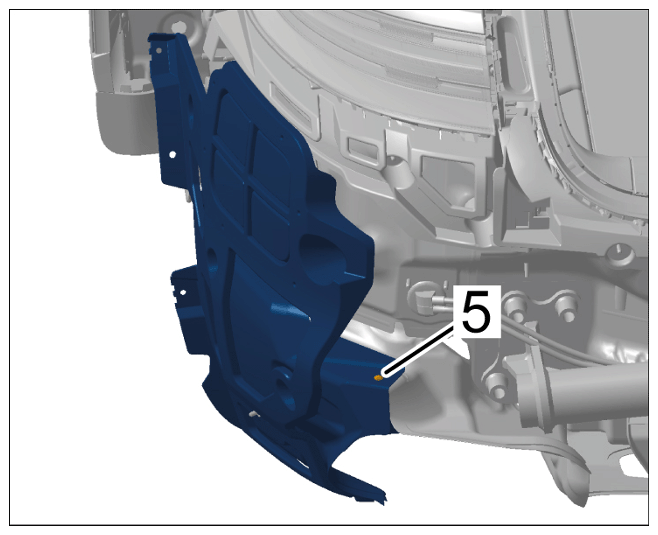

Screw for retaining strip with heat protection	Item 5	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for retaining strip on rear light

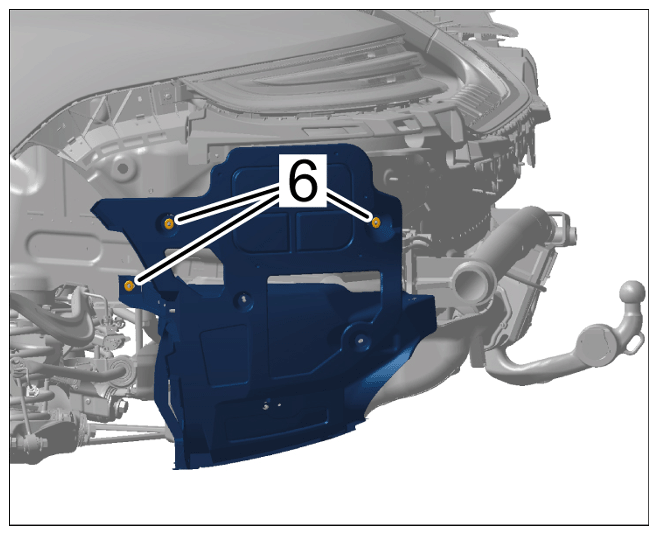

Nut on retaining strip with heat protection	Item 6	Tightening torque	9 Nm (6.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts for holder with heat protection
