Removing Retaining Strip With Heat Shield
WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Unscrew and remove screw -5-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Detaching retaining strip with heat shield
- Remove retaining strip with heat shield > Removing retaining strip with heat shield
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

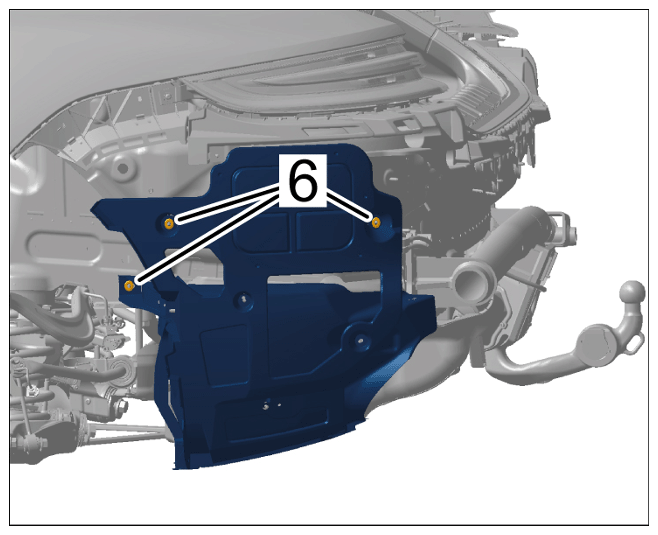

Removing retaining strip with heat shield
- 2.1 Unscrew nuts -6-
.
- 2.2 Remove retaining strip with heat shield.
