Installing Rear Retaining Strip At The Sides

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropanol  .
• Always use a clean cloth  .
• The room and object temperature must be at least +18°C  .
• Air humidity must be 40% - 60%  .

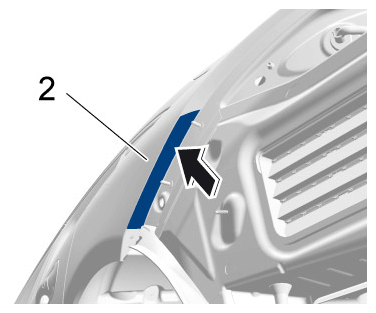

1. Check anti-chafing film -2-  for damage and replace it if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking rear protective film

2. Installation is performed in reverse order.
3. Screw in and tighten screws > Tightening torque 3.5 Nm (2.6 ftlb.)
