Disassembling Rear Apron

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wire harness for ParkAssist.

    > WM, 975919 REMOVING AND INSTALLING WIRING FOR PARKASSIST

  2. Remove sensors for ParkAssist.

    > 917519 REMOVING AND INSTALLING PARKASSIST SENSOR

  3. Remove rear skirt.

    > 636819 REMOVING AND INSTALLING REAR SKIRT

  4. Remove reflector.

    > 943819 REMOVING AND INSTALLING REFLECTOR

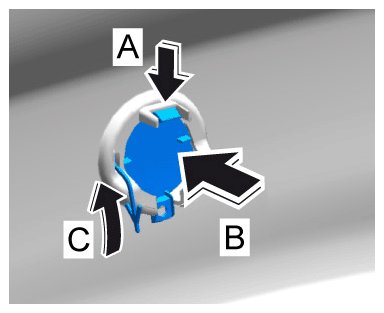

  5. Release locking lug -arrow A-  , unclip cover on towing lug -arrow B-  and unhook lock -arrow C-  .
    G15864663Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover on towing lug

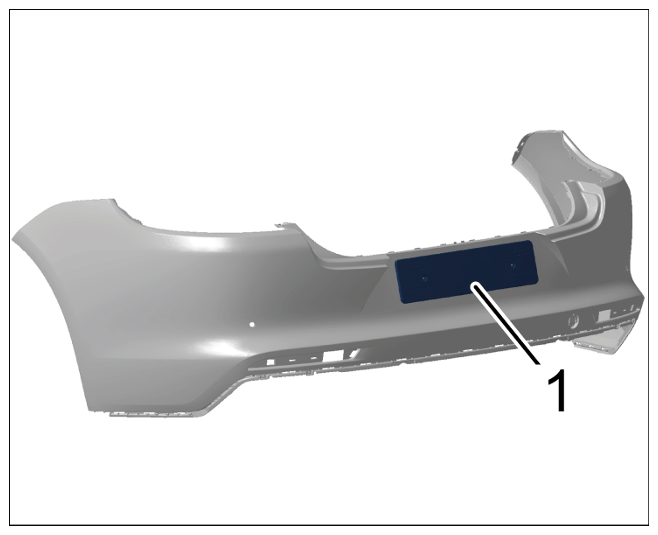

  6. Unscrew screws and remove number plate cover -1-  .
G15864664Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing number plate cover
