Disassembling Front Apron

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of electric plug connections, lines, fastening parts and sensors will vary depending on equipment.

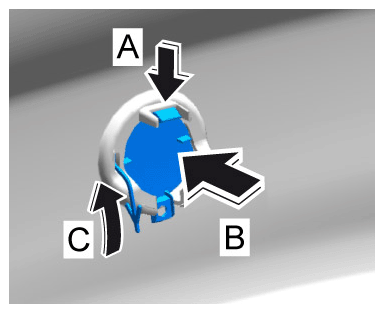

Unclip cover on towing lug.
1. 1.1 Release locking lug -arrow A- .
2. 1.2 Press out the cover -arrow B- .
3. 1.3 Unhook safety strap -arrow C- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover on towing lug
Only for Panamera Turbo (97A):
Unclip decorative insert for Park Assist.

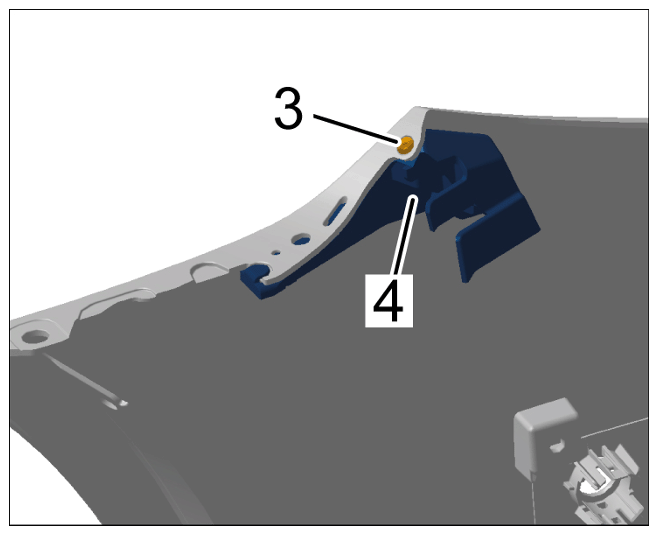

Drill out rivet -3- using > VAS 6267A - Drill, 1100 watt and remove holder -4- .
> Diameter 4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder
Unclip and remove lower part of front apron -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping and removing lower part of front apron

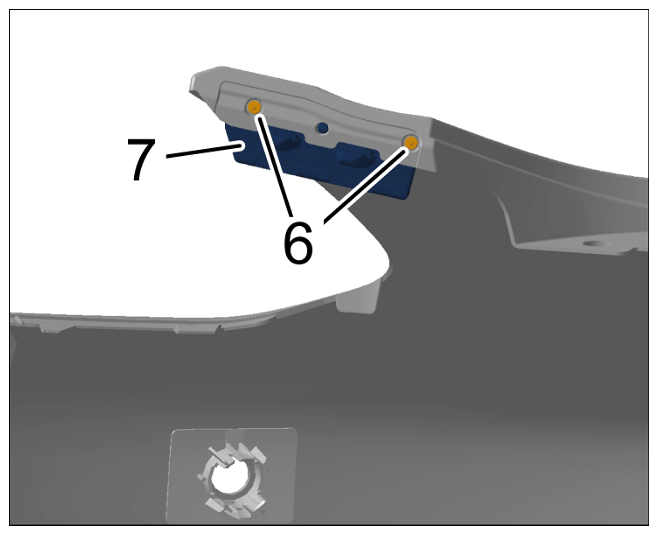

Drill out rivets -6- using > VAS 6267A - Drill, 1100 watt and remove holder -7- .
> Diameter 4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder
