Assembling Front Apron

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order.

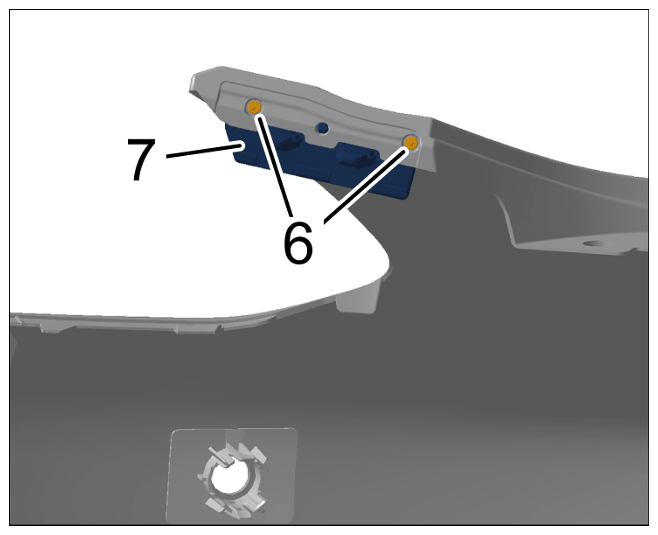

Rivet in holder -7- in the front apron > BLIND RIVET A3.2 x 17.65 N 912.528.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing holder

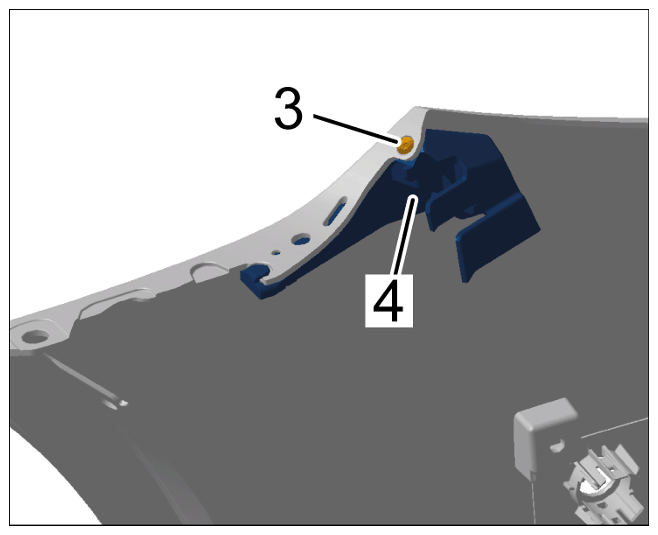

Rivet in holder -4- > BLIND RIVET A3.2 x 17.65 N 912.528.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder
Only for Panamera Turbo (97A):

Replace adhesive tape on decorative insert for Park Assist.
