Technical Values
WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |

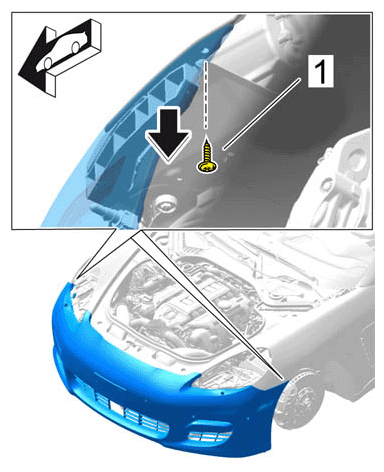

| Screw securing front apron to wing |
Item 1 |
Tightening torque |
2.8 Nm (2 ftlb.) (2.1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrewing screw on fender |

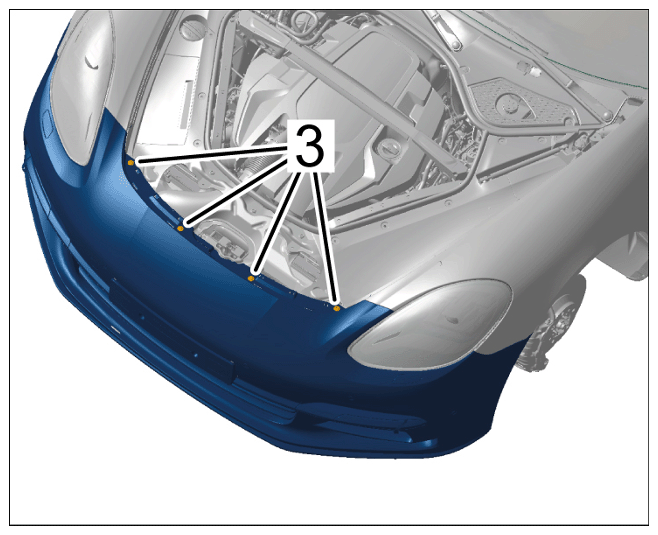

| Screw securing front bumper to mounting bracket |
Item 3 |
Tightening torque |
5.5 Nm (4.1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrewing screw on fender |
