Removing Front Bumper

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Different tightening torque for screwing self-tapping screws into a new or existing, old thread .

Incorrectly screwed joints
Risk of damage to screw thread
→ Observe different tightening torques.

→ When screwing into an already shaped, old thread, first screw in screws several turns by hand, then screw in completely using a tool.

Information

The number of electric plug connections will vary depending on equipment.

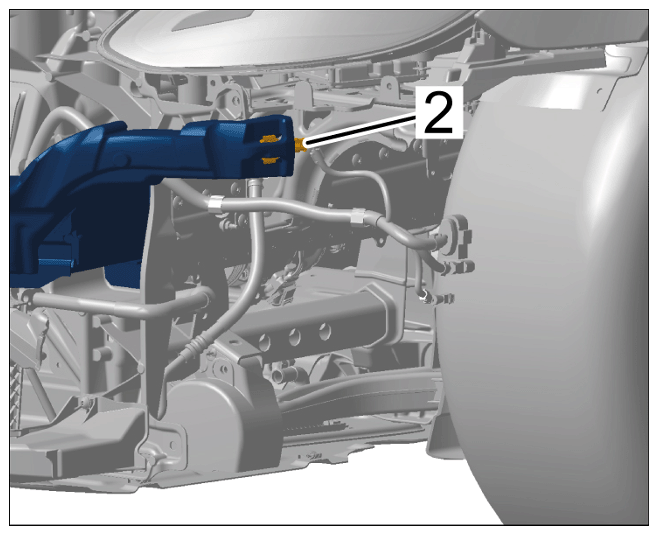

Release and disconnect electric plug connection -2- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

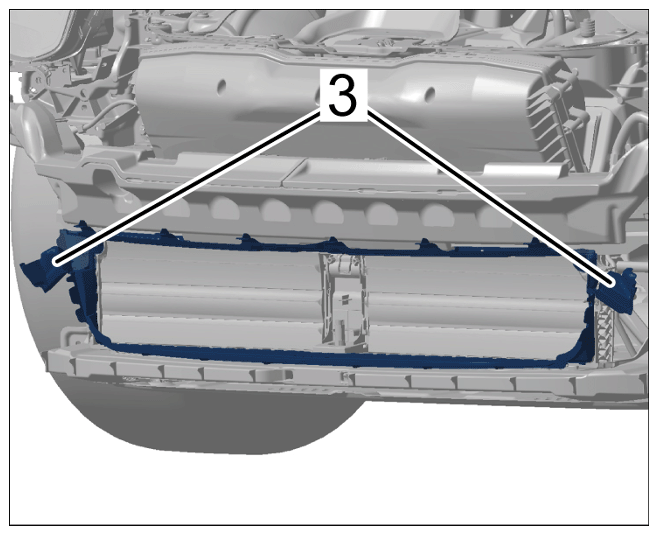

Fold open air guides -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folding open air guides
Unclip outside temperature sensor from the air guide.
> 916819 REMOVING AND INSTALLING OUTSIDE TEMPERATURE SENSOR

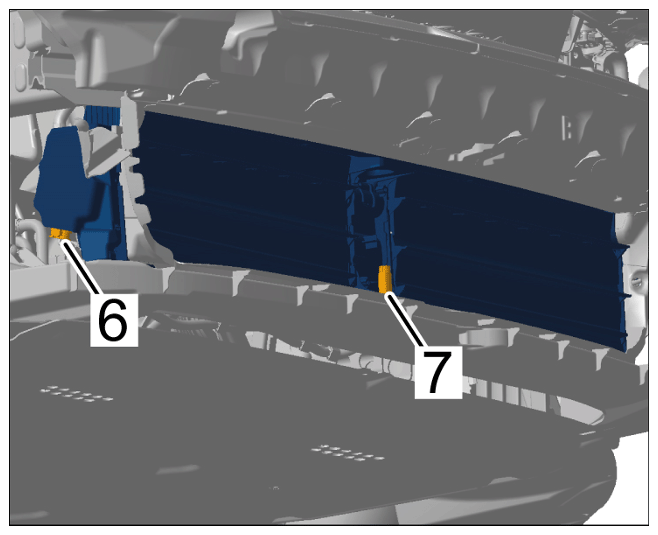

Release and disconnect electric plug connection for radiator shutter -6- and electric plug connection -7- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections

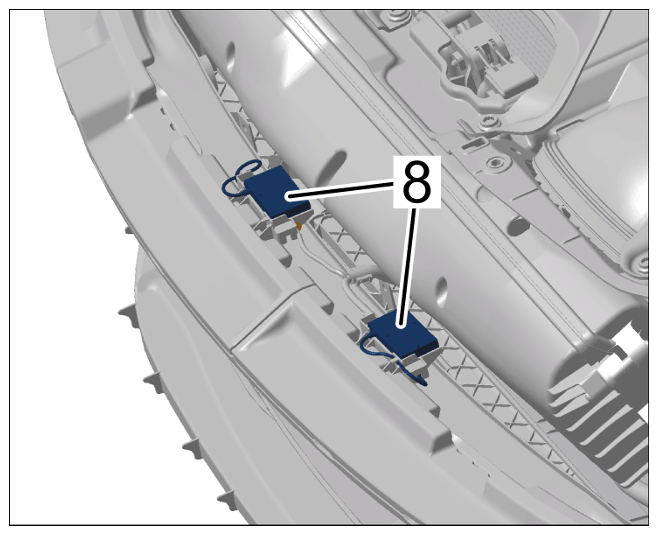

Release and disconnect electric plug connections on antennas -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connections on antennas

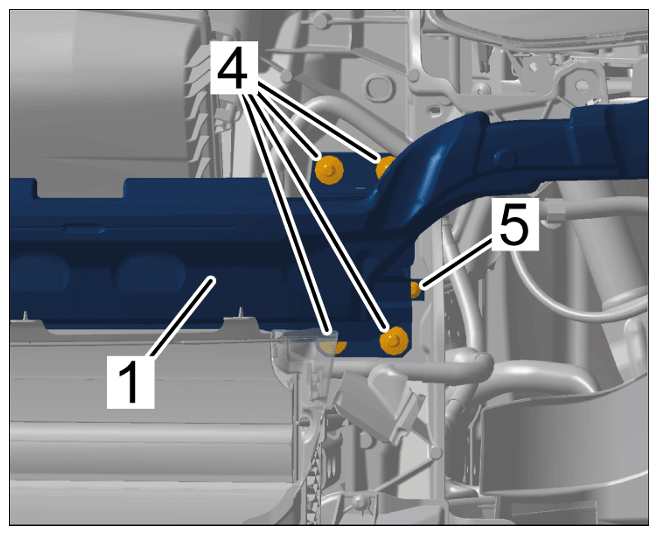

Unscrew screws -4- and screw -5- and remove front bumper -1- together with air guide and radiator shutter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front bumper
