Technical Values

Location	Description	Type	Basic value
Coolant line mounting to engine, M6	M6	Tightening torque	9 Nm (6.6 ftlb.)
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Initial tightening	70 Nm (51.6 ftlb.)
Strut with mounting anti-roll bar to body	M12 x 1.5 x 90 thread/always replace bolts following removal.	Final tightening	+ 180°
Strut to body	Hexagon-head bolt, M10 x 25/always replace bolts following removal.	Initial tightening	50 Nm (36.9 ftlb.)
Strut to body	Hexagon-head bolt, M10 x 25/always replace bolts following removal.	Final tightening	+ 45°

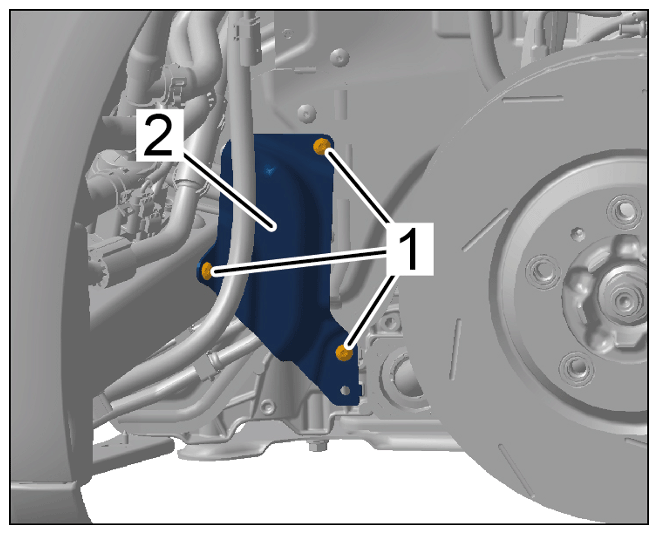

Screws for sheetmetal panel in wheel housing	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for sheetmetal panel in wheel housing
Nut for fuel line	M6	Tightening torque	9 Nm (6.6 ftlb.)
Screw for low-pressure fuel line	M6 x 16	Tightening torque	9 Nm (6.5 ftlb.)
Union nut for fuel low-pressure line	Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting. Observe specified tightening sequence!	Initial tightening	8 Nm (6 ftlb.)
Union nut for fuel low-pressure line		Final tightening	+ 50°
Fastening screw for high-pressure fuel line	Replace	tightening torque	8 Nm (5.9 ftlb.)
Fastening screw for fuel line support	M6 x 12	Tightening torque	9 Nm (6.6 ftlb.)
Union nut for fuel line	Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting.	tightening torque of	10 Nm (7.4 ftlb.)
