Preliminary Work - V8 Biturbo (Section From Engine To High-Pressure Pump)

  1. Relieve fuel pressure in the system.
    1. 1.1 Remove cover from fuse carrier F in the engine compartment at the front right.
    2. 1.2 Pull out the fuse -1-  for the fuel pump.
    3. 1.3 Start the engine, wait until it cuts out and then re-insert the fuse -1-  .

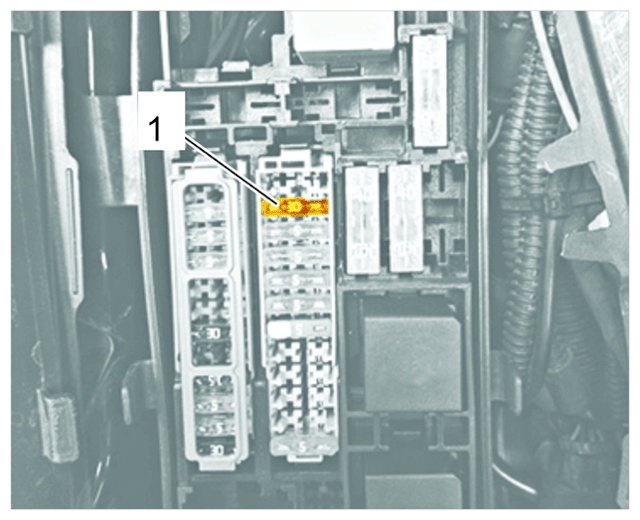

    G15876742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel pump fuse

  2. Remove cross panel.

    > WM, 508119 REMOVING AND INSTALLING CROSS PANEL

  3. Remove exhaust system.

    > WM, 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
