Removing Lock For Load-Through Provision

  1. Fold over load-through provision.
  2. Unscrew and remove screw -2-  .
    G15874068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

  3. Unclip cover -1-  .

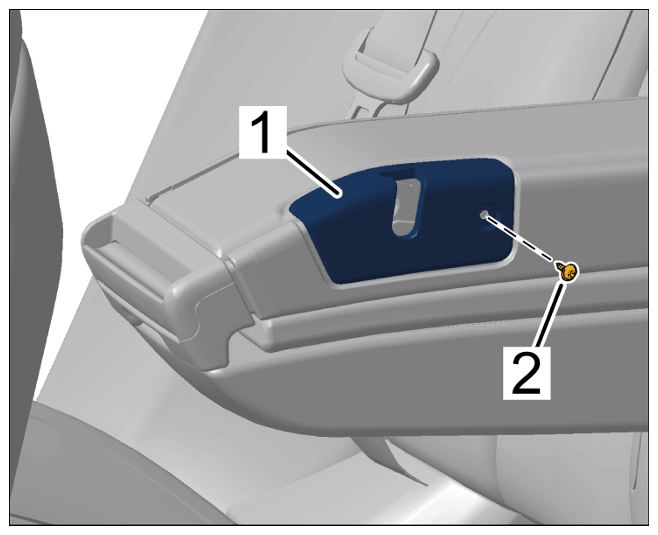

    G15874069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    Information

    Make sure that the two spacer sleeves do not fall in between the backrest frame and cushion during removal and installation.

  4. Unscrew and remove screws -3-  .
    G15874070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  5. Remove spacer sleeves -4-  .

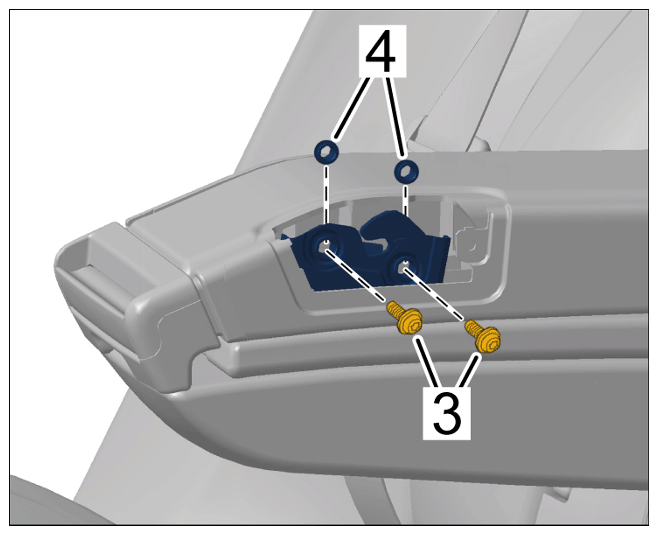

    G15874071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spacer sleeves

  6. Disengage operating cable -5-  .

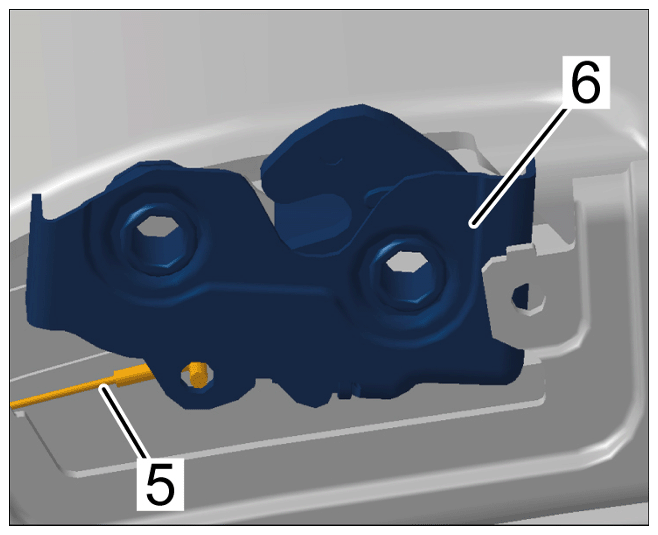

    G15874072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Operating cable

  7. Remove lock for load-through provision -6-  .
    G15874073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Load-through provision lock
