Installing Armrest With Cover

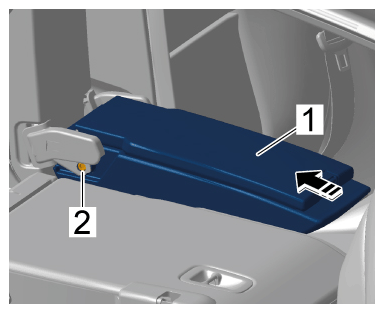

  1. Push armrest -1-  into the guides -arrow-  until the bolts -2-  at the left and right engage securely.
    G15874063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pushing in armrest

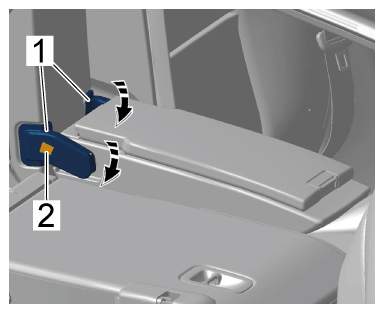

  2. Turn covers -1-  at the left and right forward -arrows-  and clip in locking lug -2-  .
    G15874064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in covers

  3. Fold up armrest.
