Removing Rear Seat-Surface Extension

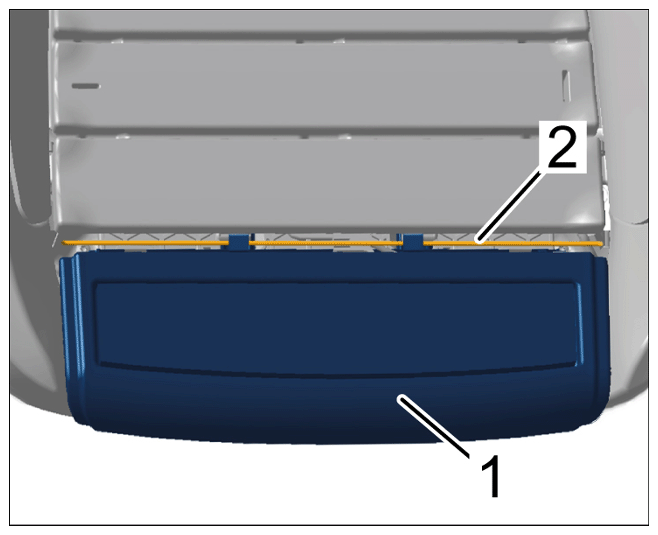

1. Disengage seat cover -1-  on rear seat-surface extension.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging seat cover

2. Disengage support rod -2-  from seat cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disengaging support rod

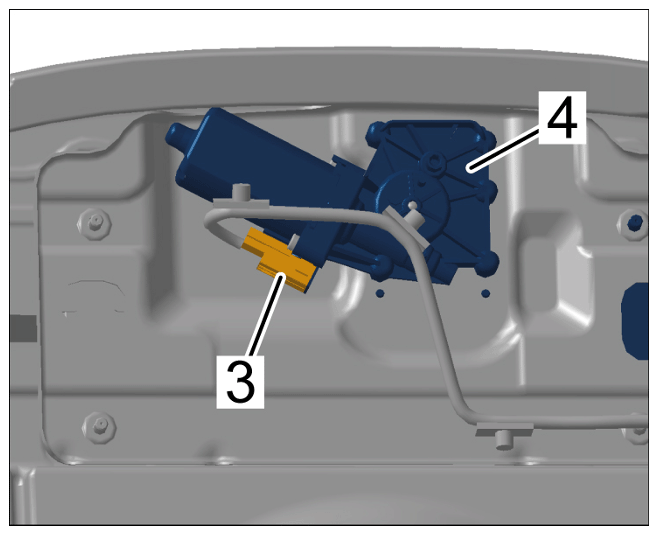

3. Release and disconnect electric plug connection -3-  on the servo motor -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection

4. Only for vehicles with seat heating (I-no. 4A4)

   Disconnect electric wire harness for seat heating.

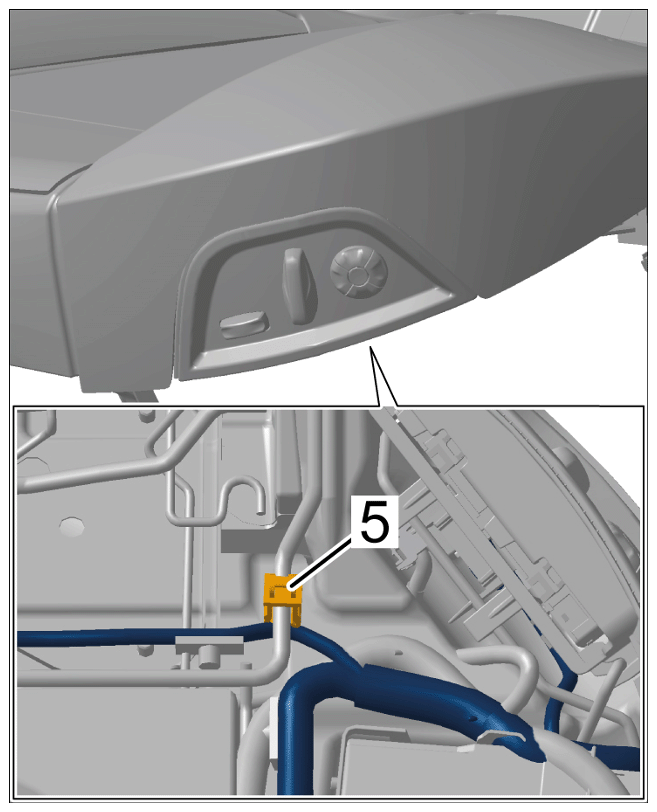

   1. 4.1 Unclip line bracket -5-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Unclipping line bracket

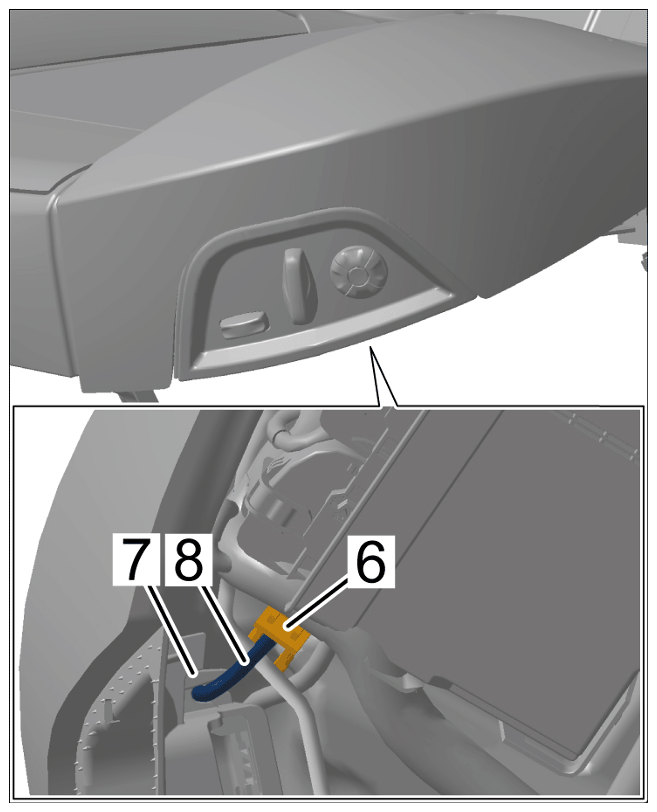

   2. 4.2 Loosen electric plug connection -6-  from holder -7-  , guide it out and disconnect it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting electric plug connection

   3. 4.3 Guide out electric wire harness -8-  for seat heating for seat-surface extension.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting electric plug connection

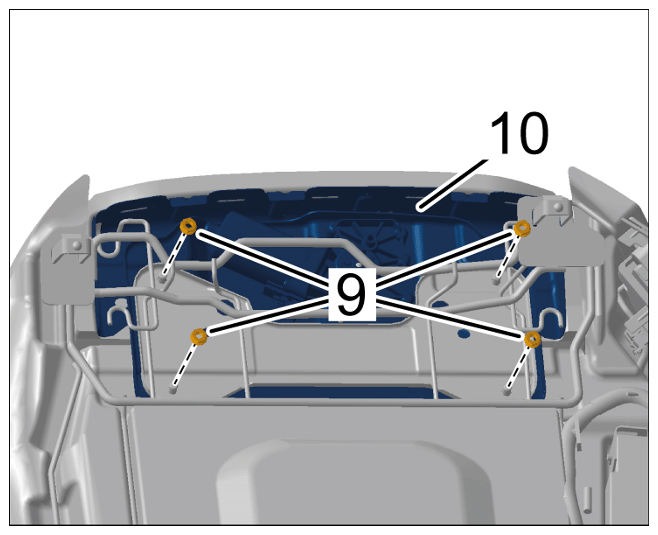

5. Unscrew nuts -9-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing nuts

6. Lift padding -10-  up slightly and remove it together with rear seat-surface extension.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear seat-surface extension
