Replacing Heating Element For Rear Backrest

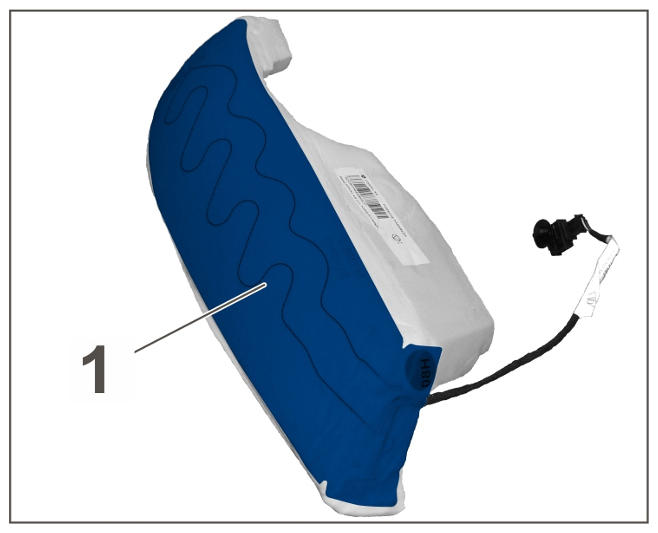

1. 1.1 Position heating element -1-  on side panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating element on side panel

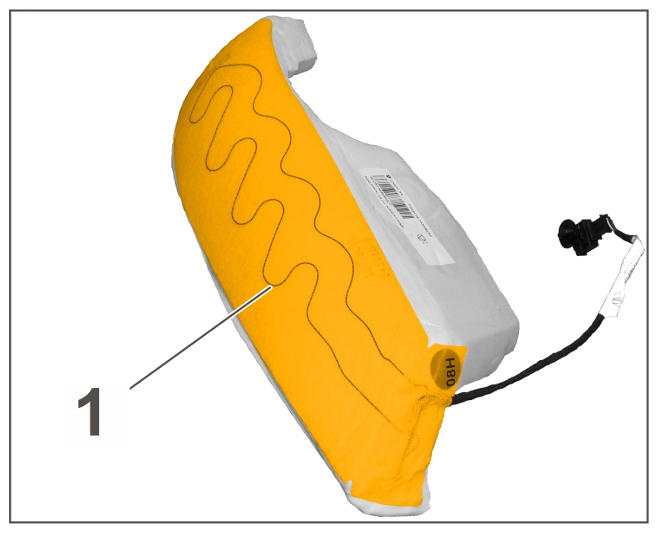

2. 1.2 Pull protective film in area -1-  off the bonding area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating element on side panel

3. 1.3 Press heating element on firmly in area -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on side panel

1. 2.1 Position heating element -1-  on backrest.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest heating element

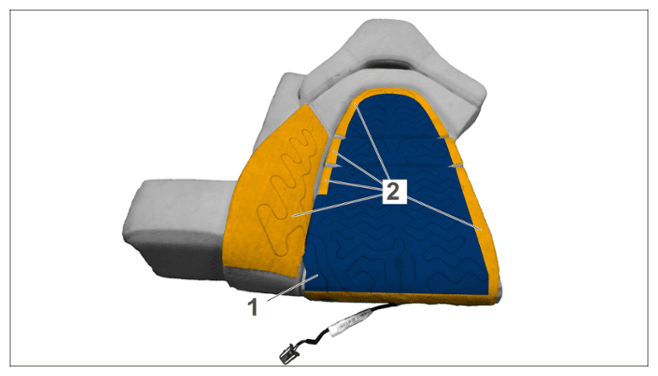

2. 2.2 Pull protective film in area -2-  off the bonding areas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest heating element

3. 2.3 Press heating element -1-  on firmly in area -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest heating element

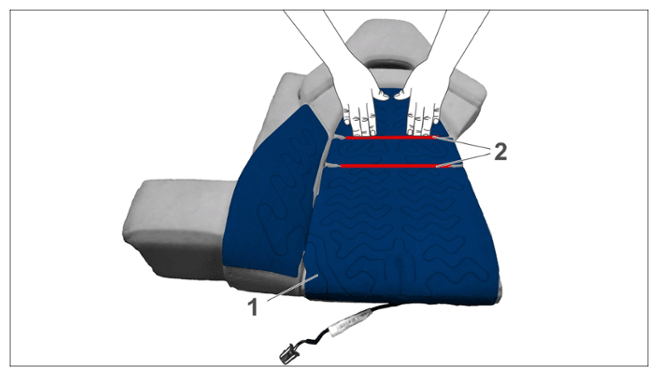

4. 2.4 Press heating element -1-  in area -2-  into the grooves.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest heating element
