Replacing Heating Element For Rear Seat

Position heating element -1- on seat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat heating element

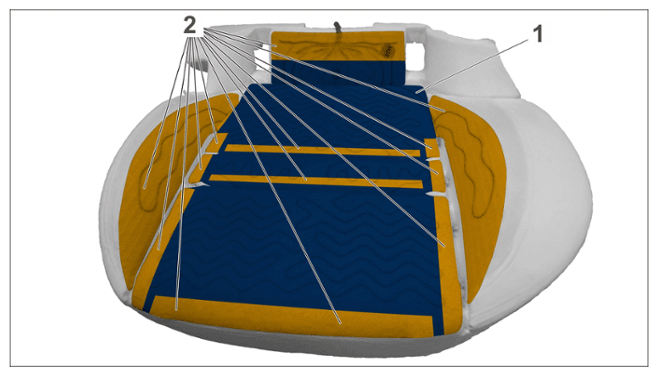

Pull protective film in area -2- off the bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat heating element
Press heating element -1- on firmly in area -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat heating element

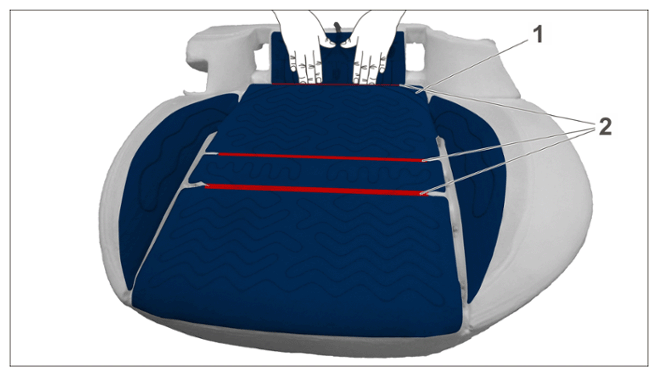

Press heating element -1- in area -2- into the grooves.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat heating element
