Replacing Heating Element For Front Backrest

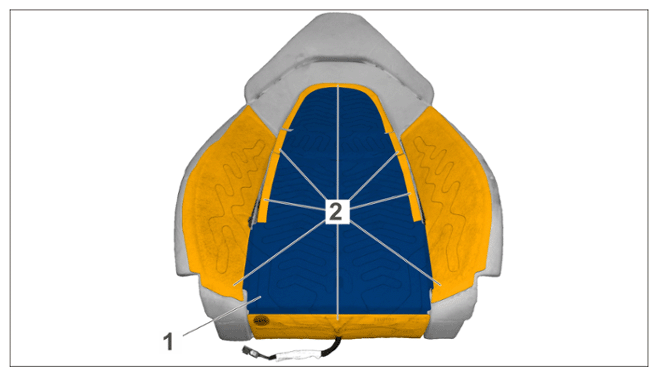

Position heating element -1- on backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element
Pull protective film in area -2- off the bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element

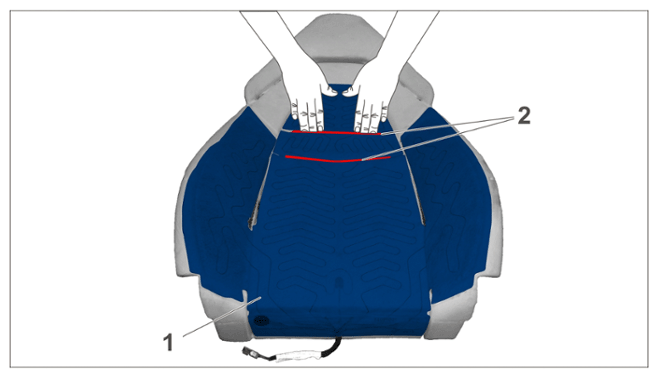

Press heating element -1- on firmly in area -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element
Press heating element -1- in area -2- into the grooves.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element
