Removing Backrest Pocket

  1. Disengage support rods -arrows-  and unclip locks -2-  .
    G15873982Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging support rods

  2. Remove backrest pocket -1-  from the backrest cover -3-  .

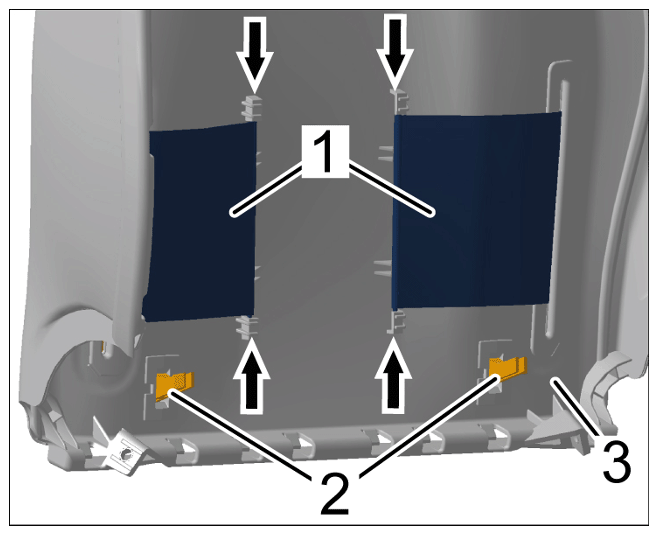

    G15873983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing backrest pocket
