74 Seat Cushions, Seat Covers - Coupe -- 971 - PANAMERA (971)
>>
WM, 741919 Removing And Installing Cover For Front Backrest
>>
Removing Cover For Front Backrest
Removing Cover For Front Backrest
Open cushion rings
-2-
and remove front backrest cover
-1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

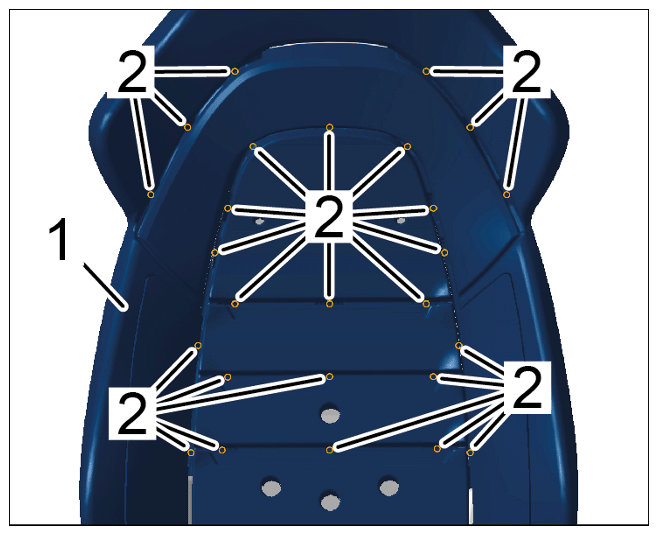

Removing cover for front backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
