Removing Suction Fan For Backrest Surface

  1. Release and unplug electric plug connection -3-  .

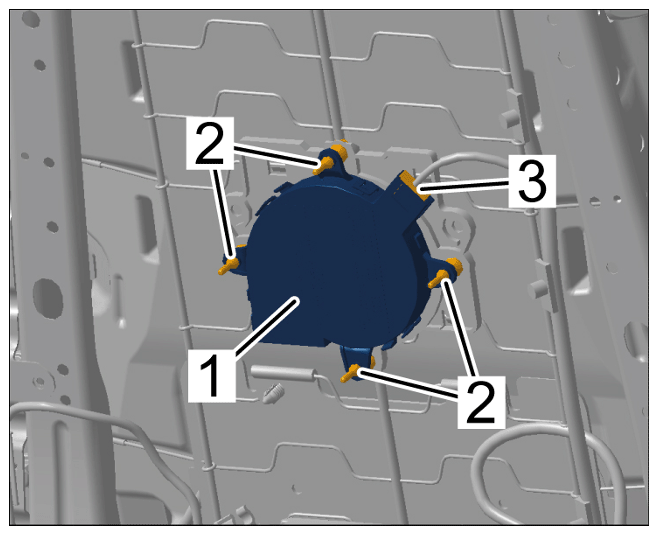

    G15873964Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Guide rubber pins -2-  through.
    G15873965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber pins

  3. Remove suction fan for backrest surface -1-  .
    G15873966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction fan for backrest surface
