Removing Front Seat-Surface Extension

Only for vehicles with seat heating (I-no. 4A4):

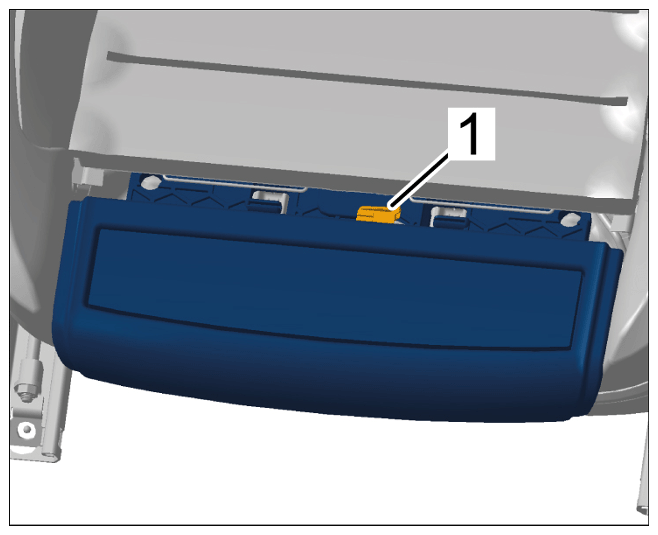

Release and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection

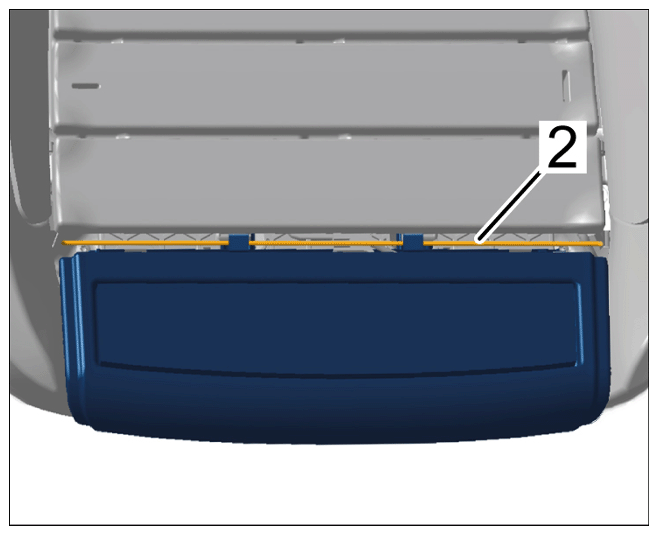

Disengage support rod -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging support rod

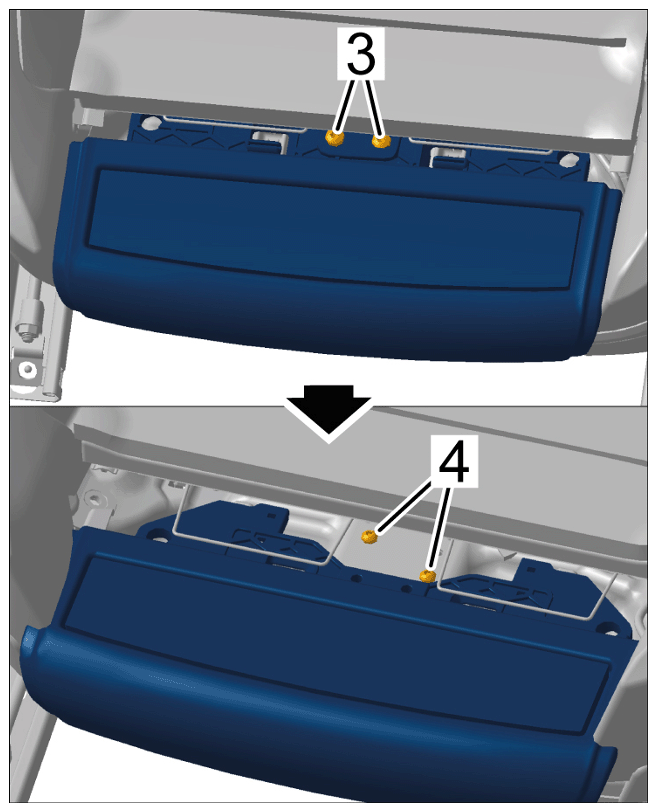

Unscrew and remove screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws
Loosen screws -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

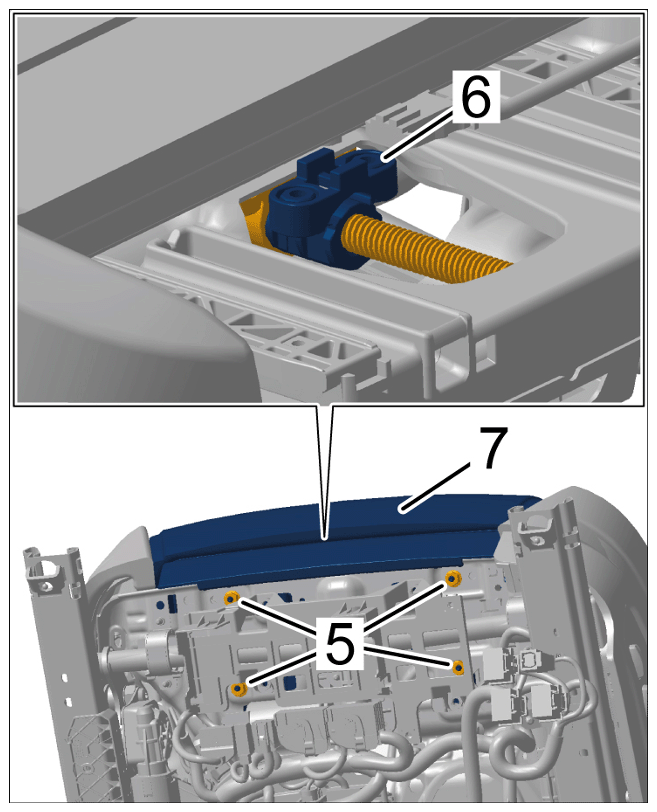

Unscrew nuts -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts
Lift seat-surface extension at the front -7- and disengage and remove it from the slide -6- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing front seat-surface extension
