Removing Control Unit For Memory Seat Adjustment

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Move front seat back and up as far as possible.
Switch off ignition and remove remote control (hand-held transmitter).
Release control unit for memory seat adjustment -1- at the left and right -arrow A- and guide it out of the front guides -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping control unit for memory seat adjustment
Release and disconnect electric plug connections -2- and remove control unit for memory seat adjustment -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

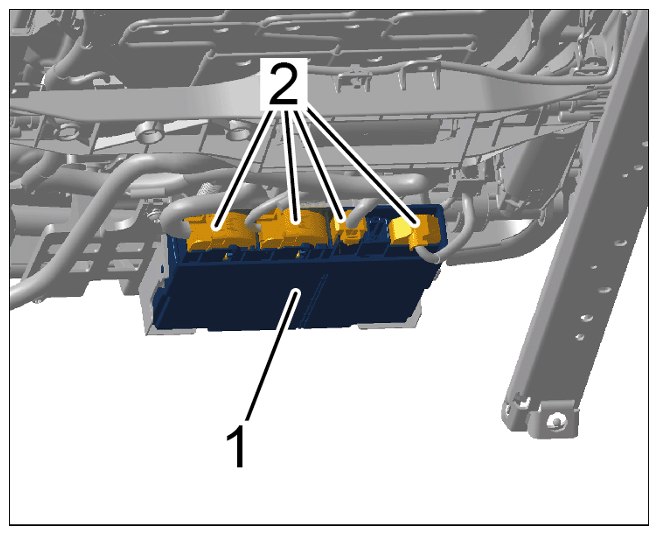

Removing control unit for memory seat adjustment
