| Screws for rear-backrest lock cover |
Item 2 |
Tightening torque |
1.5 Nm (1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

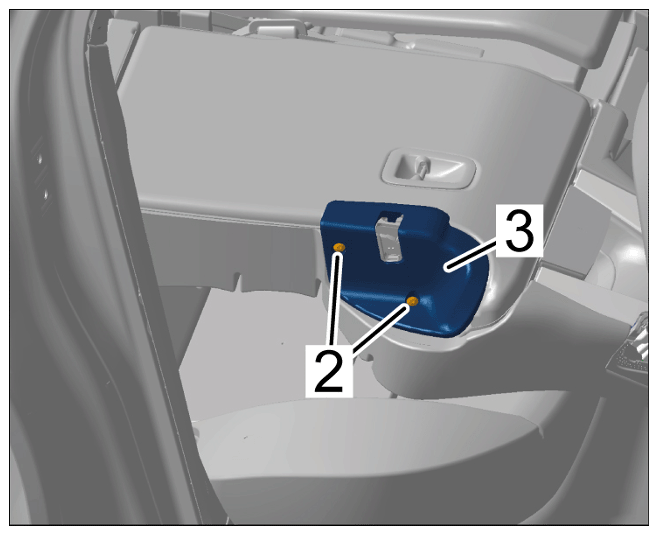

Screws for rear-backrest lock cover |
| Screws for rear-backrest lock |
Item 4 |
Tightening torque |
24 Nm (18 ftlb.) |
+/- 2.4 Nm (2 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

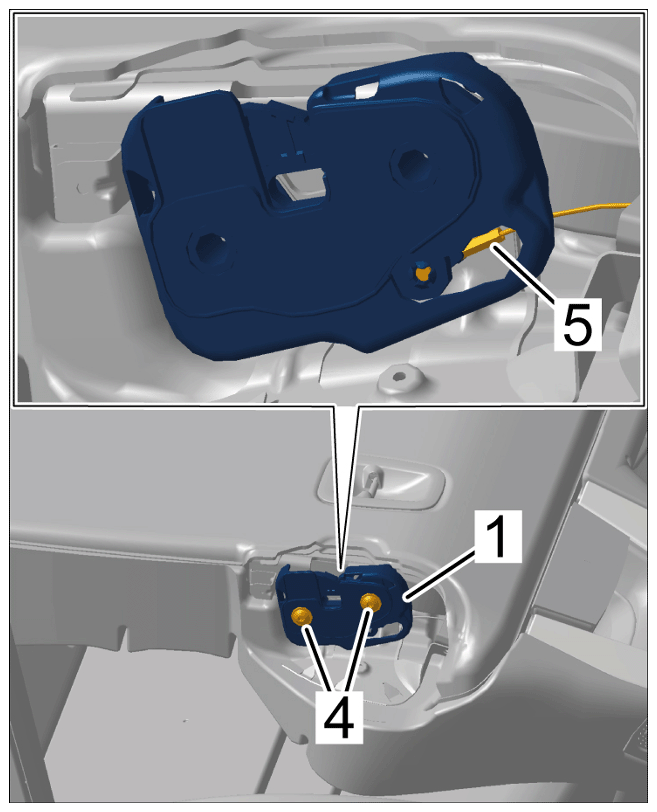

Screws for rear-backrest lock |
