Removing Rear Lumbar Support

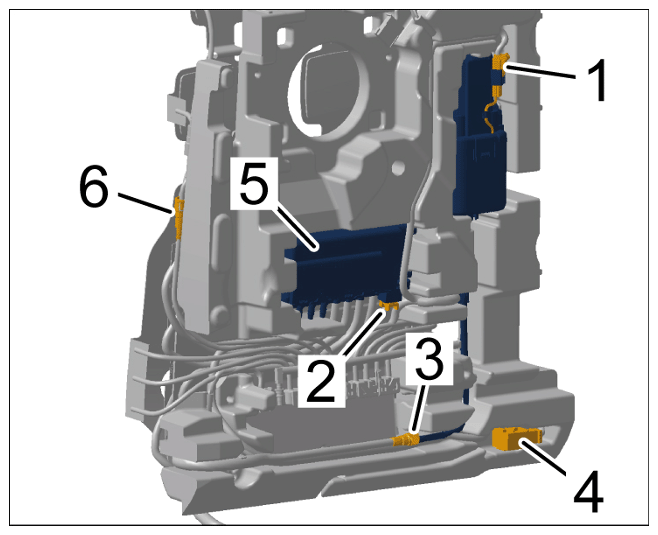

Release and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection
Release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection
Disconnect pneumatic line at the lower connection point -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pneumatic line
Release and disconnect electric plug connection -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection
Only for vehicles with massage seat (I-no.: 4D0, 4D2, 4D4, 4D6)
Cut tie-wrap on pneumatic lines.
Only for vehicles with massage seat (I-no.: 4D0, 4D2, 4D4, 4D6)
Disconnect pneumatic line at the left connection point -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pneumatic line
Loosen lumbar support valve -6- from rigid foam body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening lumbar support valve

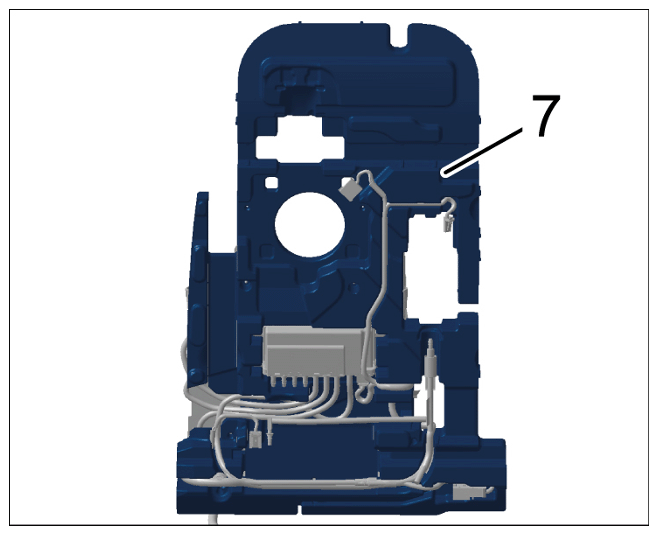

Loosen all lines from rigid foam body -7- on the padding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening lines from rigid foam body
Detach rigid foam body -7- from the padding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detaching rigid foam body

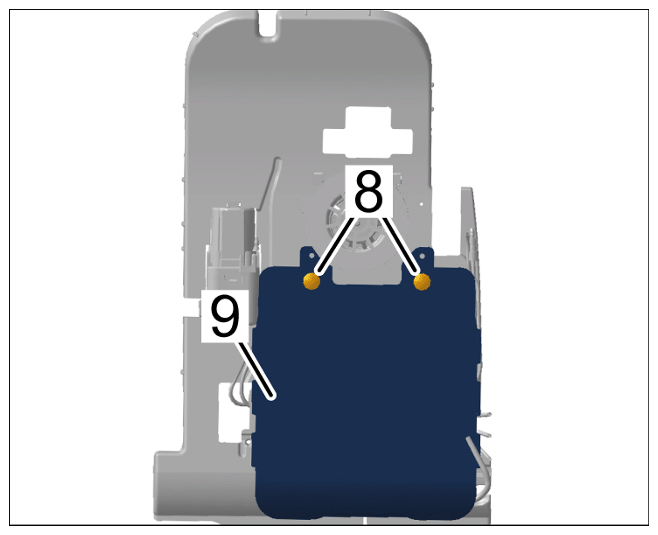

Remove pins -8- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing pins
Remove lumbar support -9- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lumbar support
