Installation Position

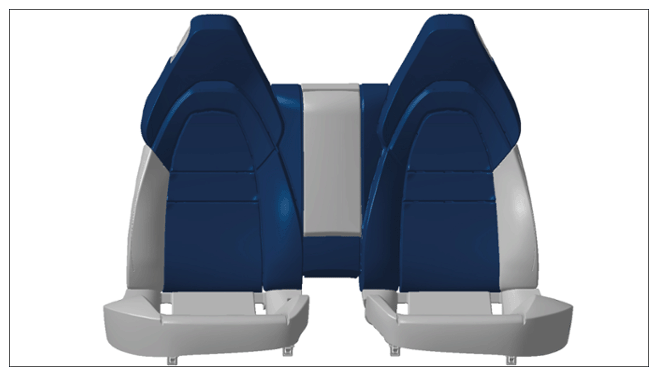

G15873865Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear backrest frame (shown on standard rear seat - 40/60)

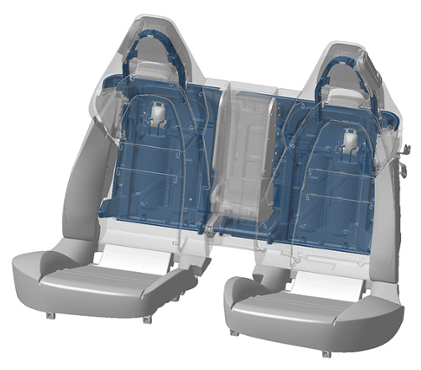

G15873866Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of rear backrest frame (shown on standard rear seat - 40/60)
