Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw for side cushion Item 2 Tightening torque 10 Nm (7.5 ftlb.)

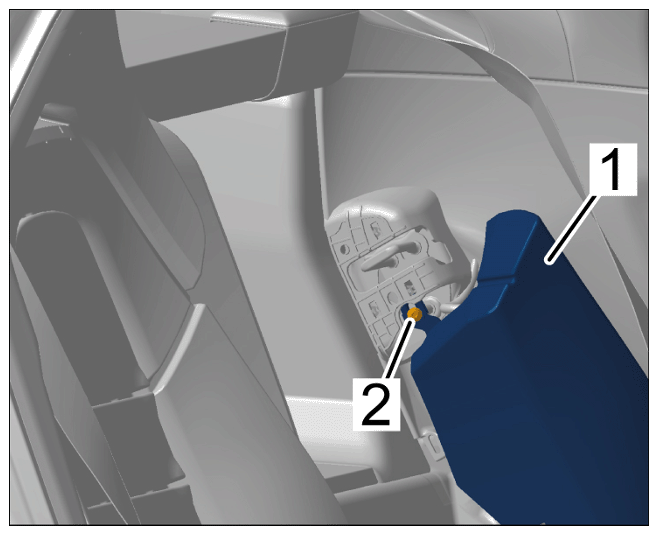

G15873850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for side cushion
