Removing Rear Backrest

Information

Some of the steps are shown only on one side of the vehicle. Complete some steps on both sides of the vehicle.

1. Fold rear backrest down.
2. Loosen securing clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

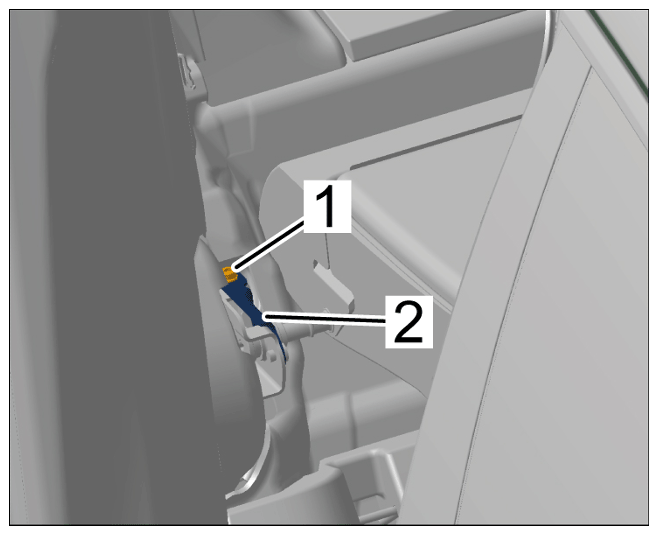

   Loosening securing clip on outside of vehicle

   1. 2.1 Unscrew screw -1-  on securing clip at the outside of the vehicle -2-  .
   2. 2.2 Open securing clip -2-  .
3. Unscrew screw -3-  and remove securing clip at the centre of the vehicle -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

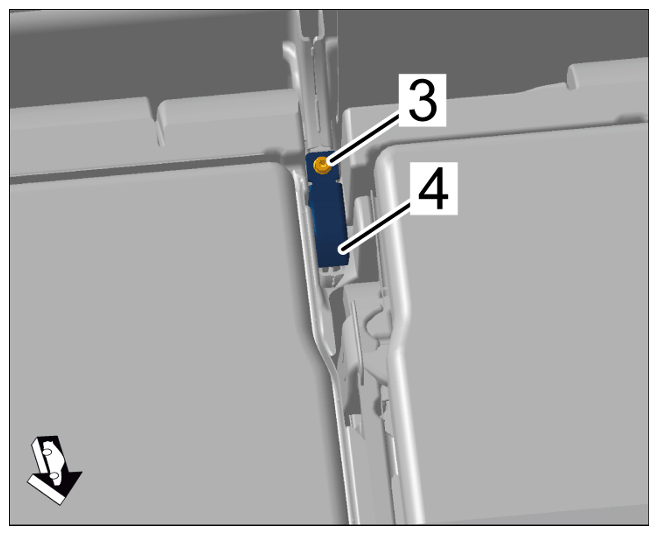

   Removing securing clip on centre of vehicle

4. Remove rear backrest.
