Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw securing motor for air cushion to backrest Item 2 Tightening torque 1 Nm (0.5 ftlb.) +/- 0.2 Nm (0.1 ftlb.)

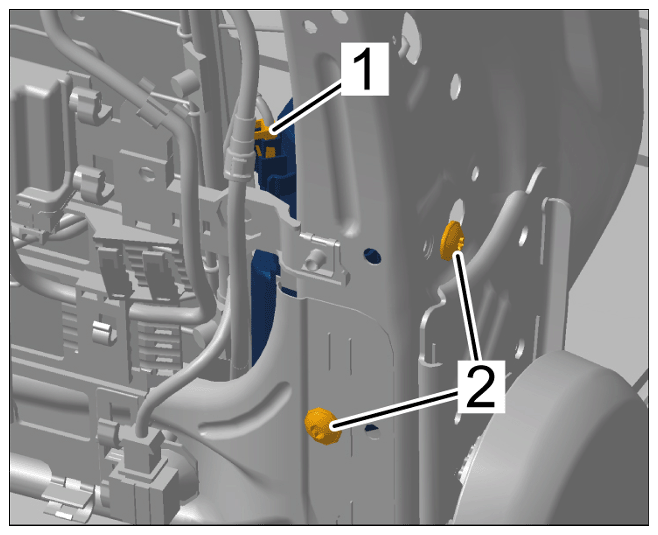

G15873831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw securing motor for air cushion to backrest
