Removing Motor For Air Cushion

  1. Loosen motor for air cushion.

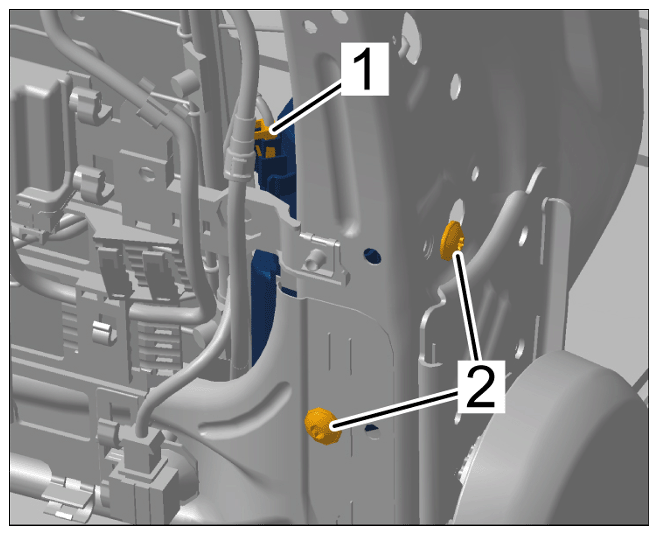

    G15873833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing screws

    1. 1.1 Disconnect electric plug connection -1-  .
    2. 1.2 Unscrew and remove screws -2-  .
  2. Remove motor for air cushion -4-  .

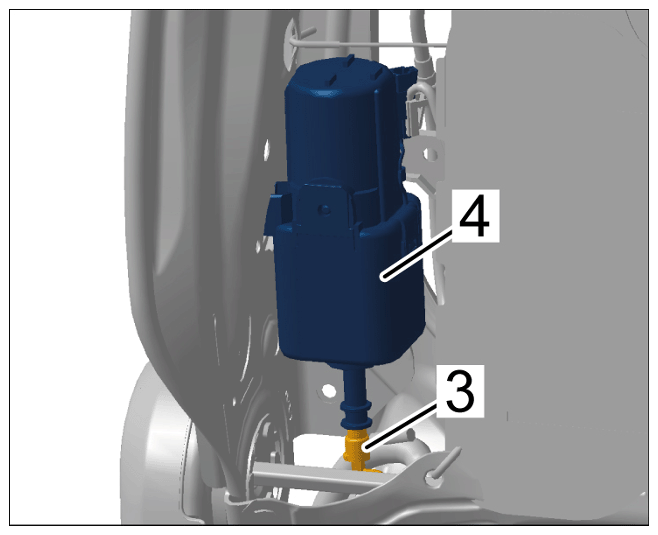

    G15873834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting pneumatic line

    1. 2.1 Release and disconnect pneumatic line -3-  .
    2. 2.2 Remove motor for air cushion -4-  .
