Removing Rear Air Cushion Control Valve

Cut tie-wrap.

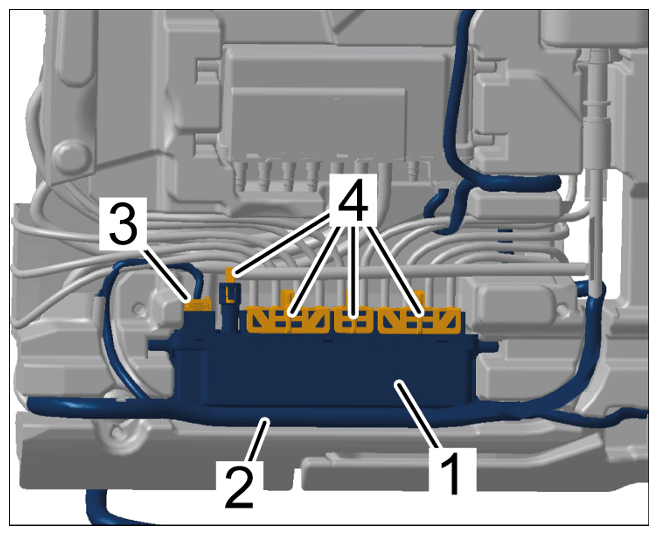

Disconnect pneumatic lines -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting pneumatic lines
Release and unplug electric plug connection -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting air cushion control valve
Press electric wire harness -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing electric wire harness aside
Remove air cushion control valve -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing control valve for air cushion
