Removing Control Valve For Air Cushion

  1. Remove control valve for air cushion -1-  .

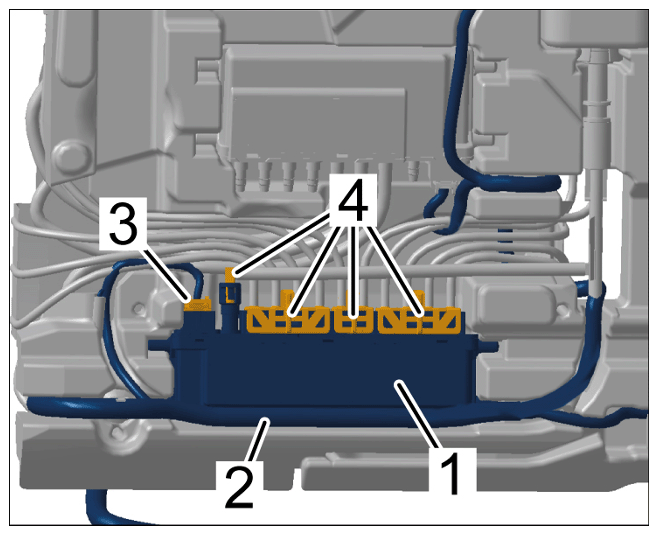

    G15873829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing control valve for air cushion

    1. 1.1 Disengage control valve for air cushion -1-  by pulling it up.
    2. 1.2 Disconnect air connections -4-  .
    3. 1.3 Release and unplug electric plug connection -3-  .
    4. 1.4 Remove air cushion control valve -1-  .
