Removing Air Cushion For Backrest

  1. Guide out clips -1-  .
    G15873784Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guiding out clips

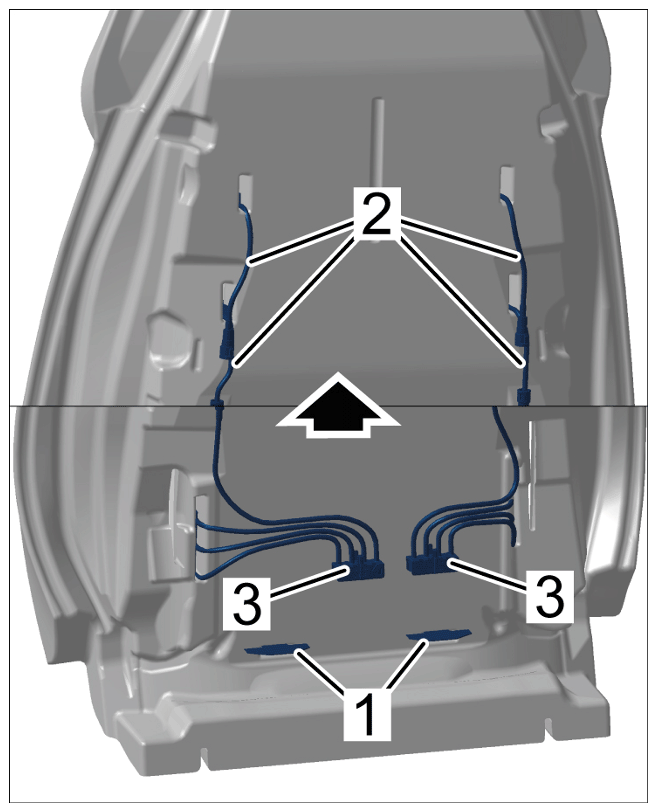

  2. Guide out air hoses -2-  with pneumatic couplings -3-  .
    G15873785Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guiding out air hoses

  3. Remove air cushion.
