Technical Values

Location	Des...	Type	Basic val...	Toleranc...
Screw on motor for front seat-surface extension	Item 1	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %

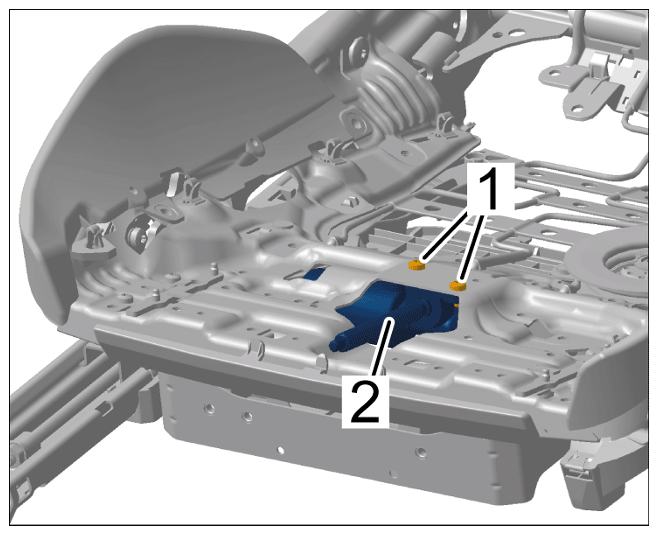

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for front seat-surface extension
Upper screw on side bolster	Item 3	Tightening torque	3 Nm (2 ftlb.)	+/- 0.2 (0.1 ftlb.) %

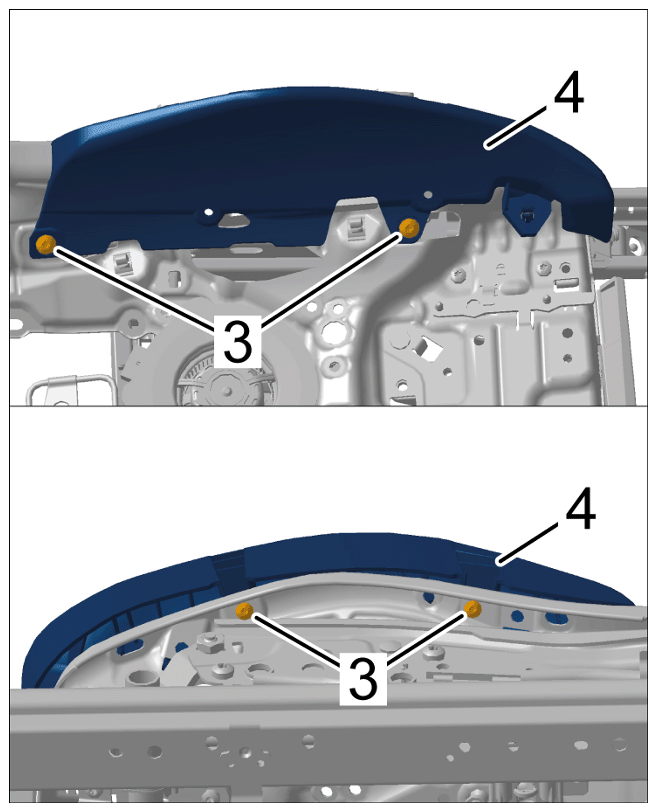

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper screws on side bolster
Lower screw on side bolster	Item 3	Tightening torque	2 Nm (1.5 ftlb.)	+/- 0.1 (0.07 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower screws on side bolster
Screw on holder for memory seat adjustment control unit	Item 5	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %

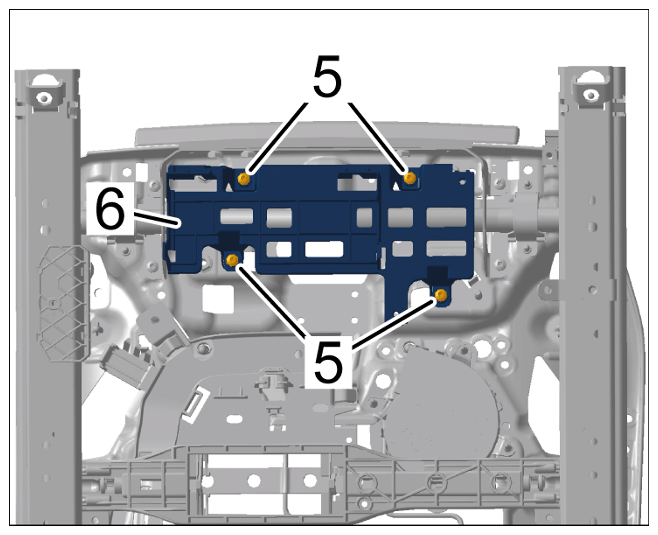

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on holder for memory seat adjustment control unit
Screw for suction fan holder	Item 7	Tightening torque	3 Nm (2 ftlb.)	+/- 0.2 (0.1 ftlb.) %

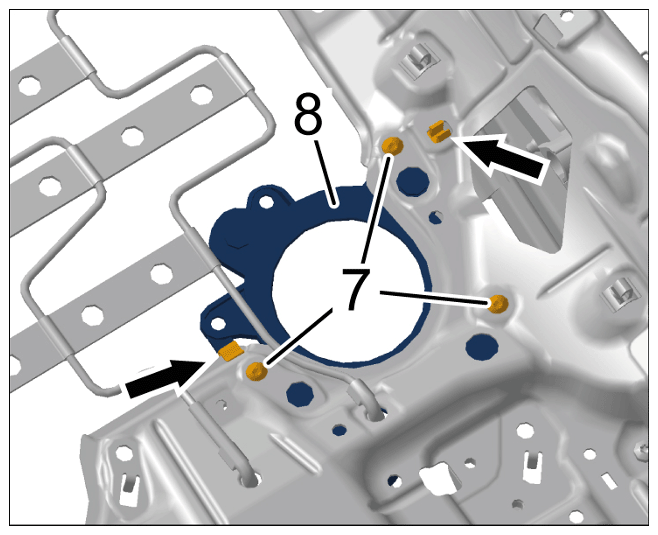

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on suction fan holder
Screw on mounting plate for electric plug connections	Item 9	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %

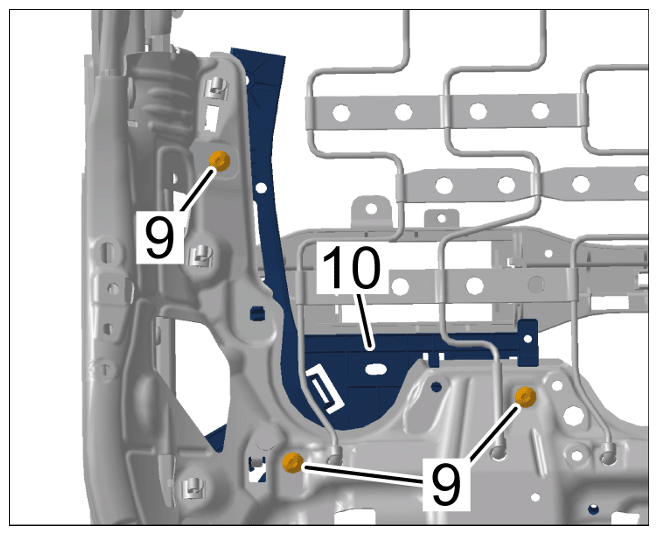

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on mounting plate for electric plug connections
