Removing Front Seat Frame

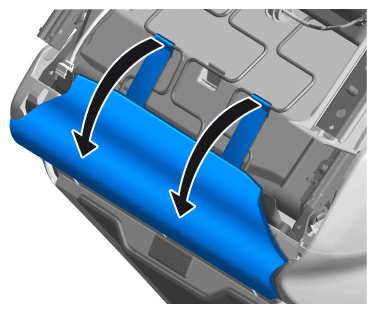

Disengage restraining straps on the underside of the front seat -arrows- and fold over seat cover on backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening restraining straps

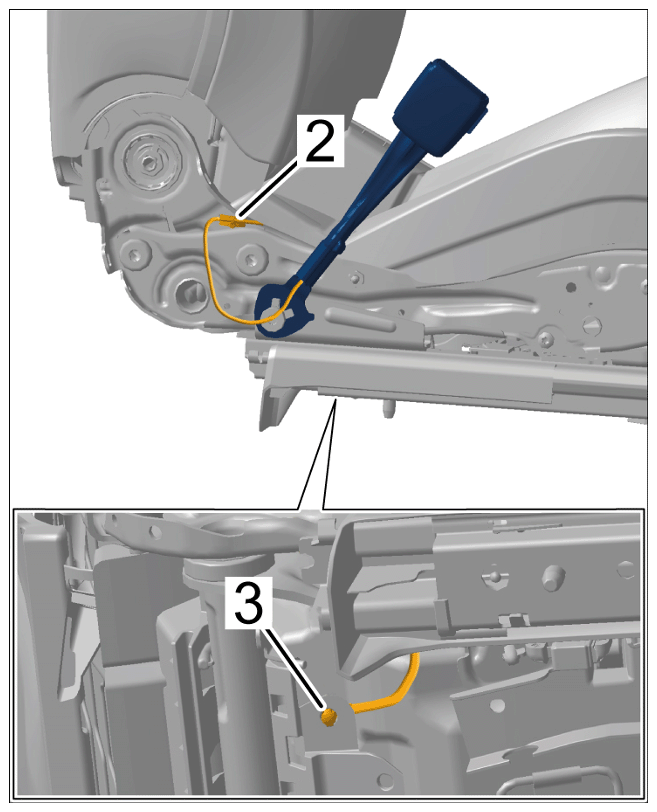

Unclip line bracket on seat-belt buckle at the side -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket

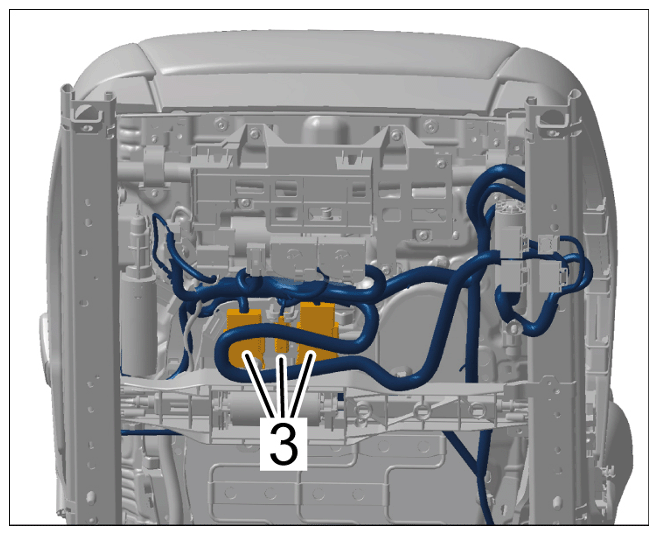

Release and unplug electric plug connections -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect the electric plug connections

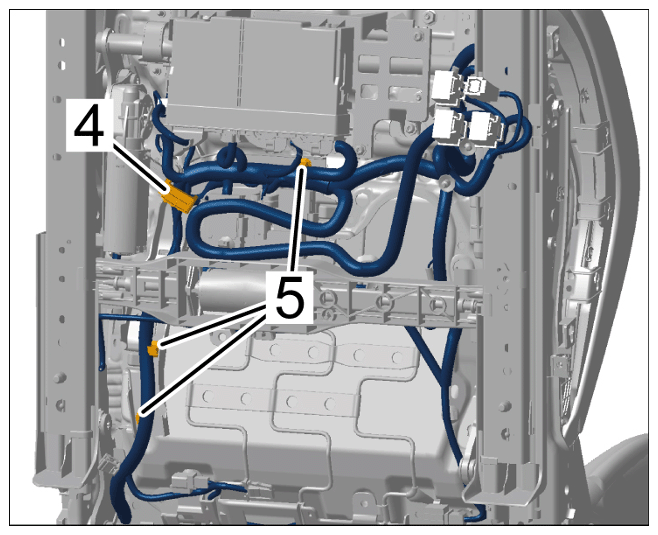

Open wiring duct -4- and unclip line bracket -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric wire harness

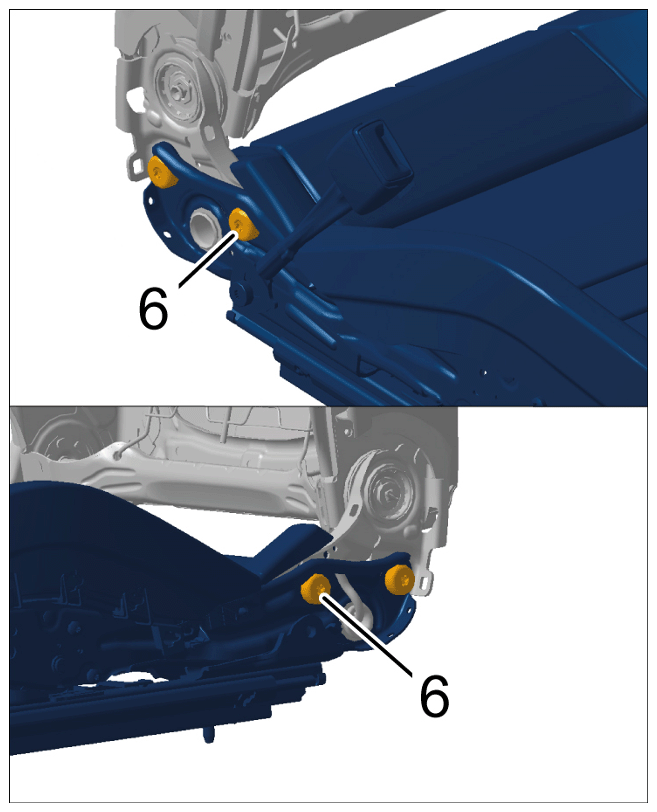

Unscrew and remove screws -6- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing screws

Information

The help of another person is required.

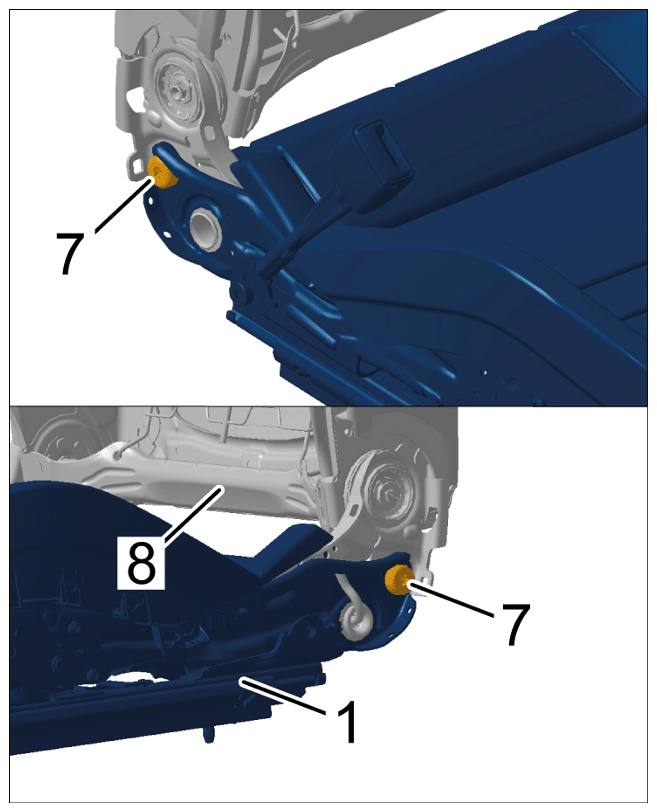

Unscrew screws -7- and remove backrest -8- from the front seat frame -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing seat frame
