Removing Upper Part Of Front Centre Console

Information

• Some repairs are shown only on one side of the vehicle.
• Some steps also have to be performed on the opposite side of the vehicle as well.

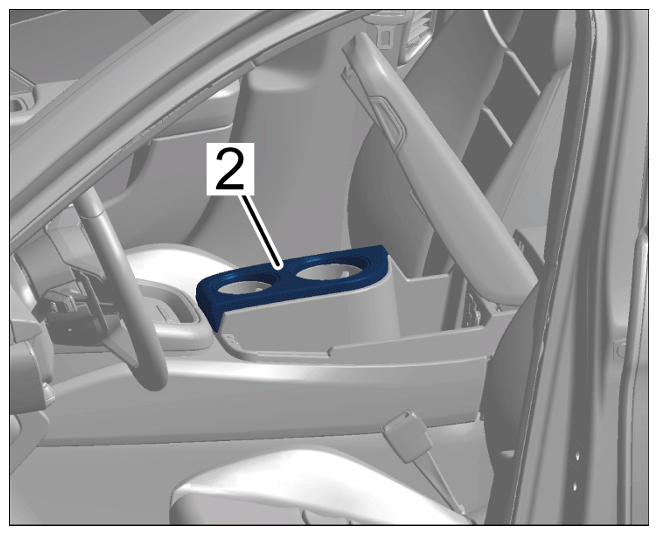

1. Open the armrest and unclip cupholder cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping cupholder cover

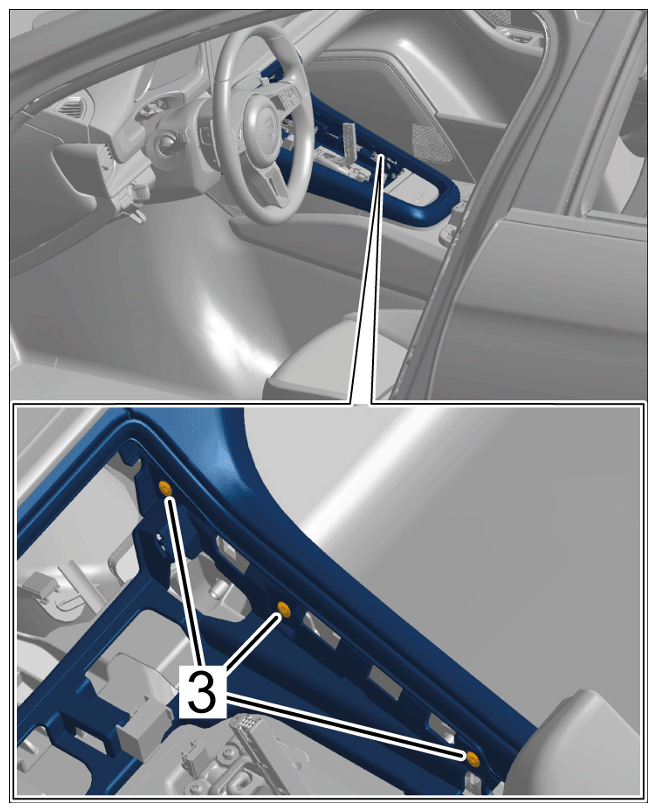

2. Unscrew and remove screws -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screws

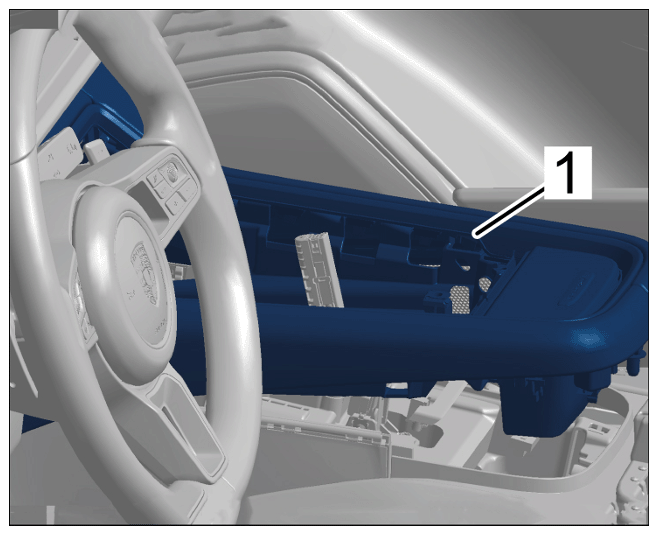

3. Unclip upper part of front centre console -1-  .
   1. 3.1 Unclip and lift up upper part of front centre console -1-  at the rear.
   2. 3.2 Only for vehicles with smoker package:

      Disconnect electric plug connection for the cigarette lighter and ashtray light.

   3. 3.3 Disengage and remove upper part of front centre console -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing upper part of front centre console
