Preliminary Work

  1. Remove centre trim panel for luggage compartment (luggage compartment cover).

    > WM, 700619 REMOVING AND INSTALLING (CENTRE) LUGGAGE COMPARTMENT TRIM PANEL (LUGGAGE COMPARTMENT COVER)

  2. Remove side trim panel for rear luggage compartment at the left.

    > 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT

  3. Remove trim panel for luggage compartment (luggage compartment cover) at the left side.

    > WM, 700619 REMOVING AND INSTALLING (SIDE) LUGGAGE COMPARTMENT TRIM PANEL (LUGGAGE COMPARTMENT COVER)

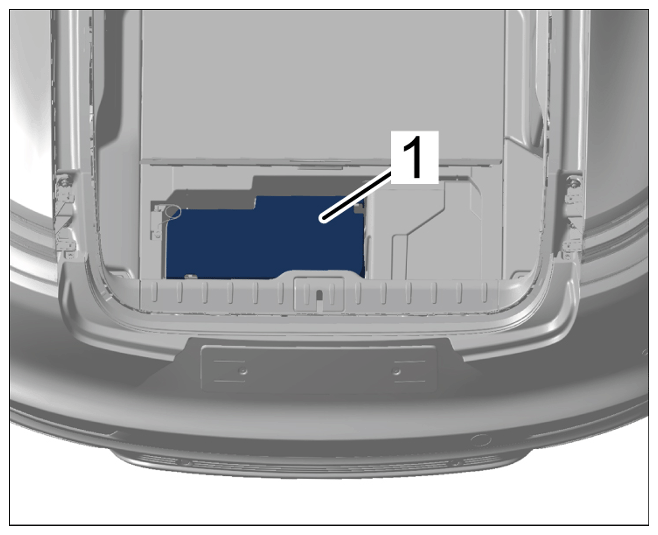

  4. Remove battery cover -1-  .
    G15876641Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing battery cover

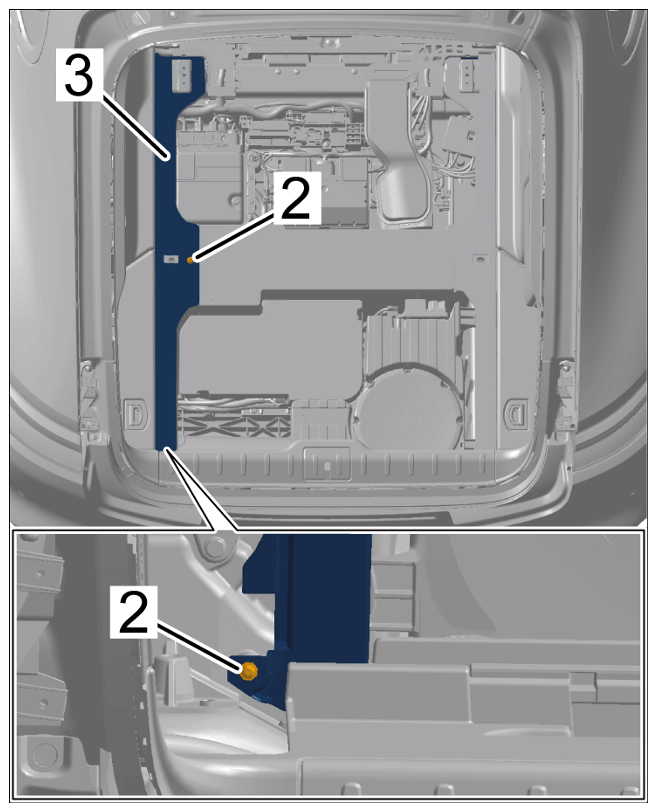

  5. Unscrew screws -2-  and unclip cover -3-  .
    G15876642Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover

  6. Remove tray with breakdown kit.
  7. Disconnect the battery.

    > Work instructions after disconnecting the battery
