Loosening Fuse Box Under Front Seat

Move driver's seat or passenger's seat as far back and up as it will go.

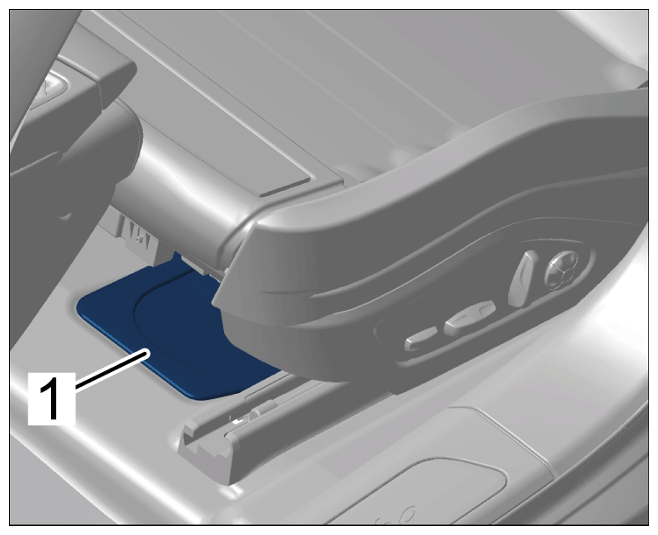

Open floor flap -1- and fold the carpet over.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folding over carpet

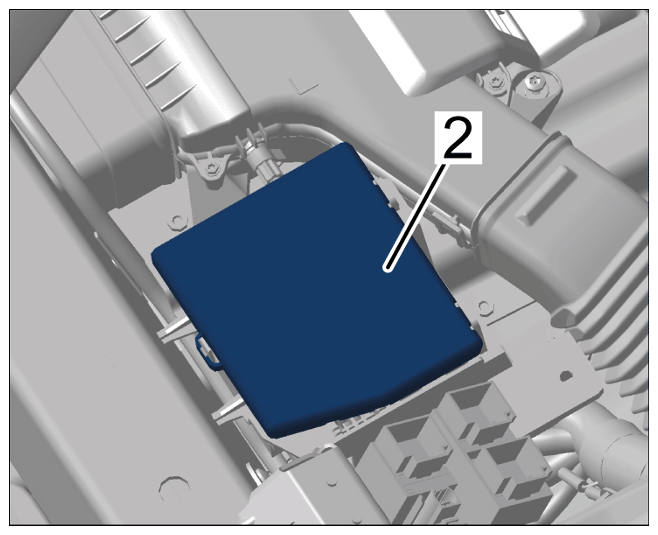

Release cover on fuse box under the front seat -2- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover on fuse box under front seat

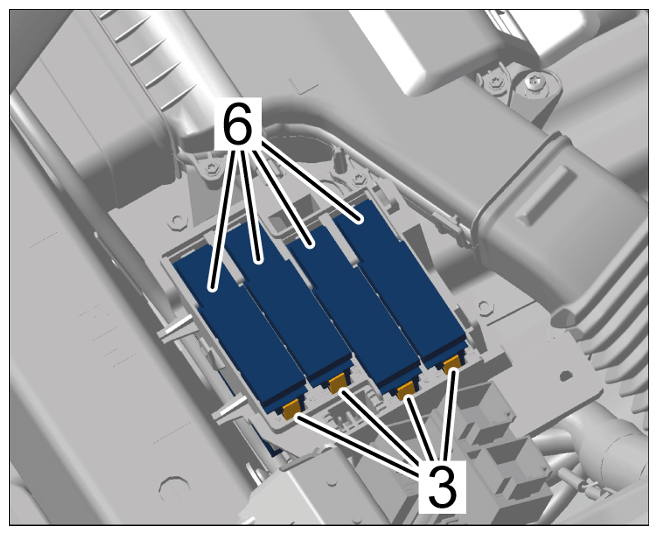

Release locking lugs -3- and press fuse box under front seat -6- through in a downward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing fuse box under front seat through in a downward direction
