Loosening Fuse Box In The Engine Compartment

  1. Remove maintenance flap -1-  .

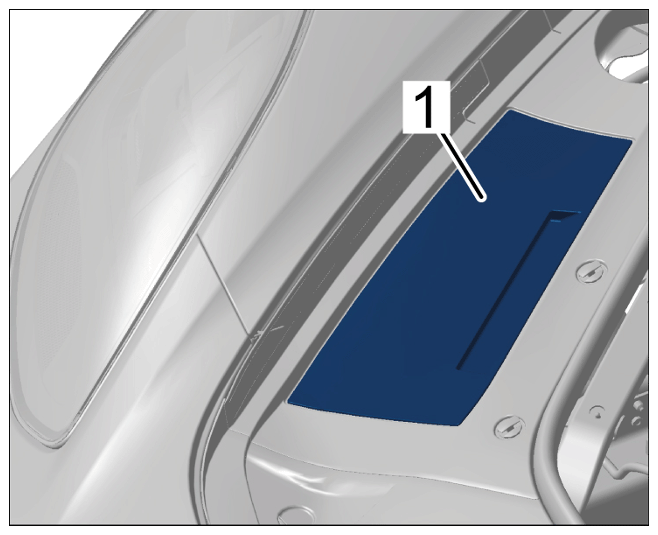

    G15876611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing maintenance flap

  2. Remove cover on fuse box in the engine compartment -3-  .

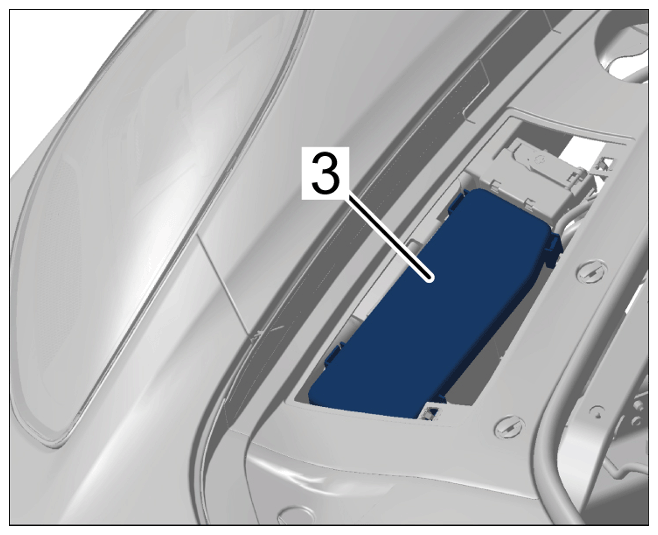

    G15876612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover on fuse box in the engine compartment

  3. Loosen fuse box in the engine compartment -2-  .
    1. 3.1 Release locking lugs -4-  .
    2. 3.2 Loosen fuse box in the engine compartment -2-  .

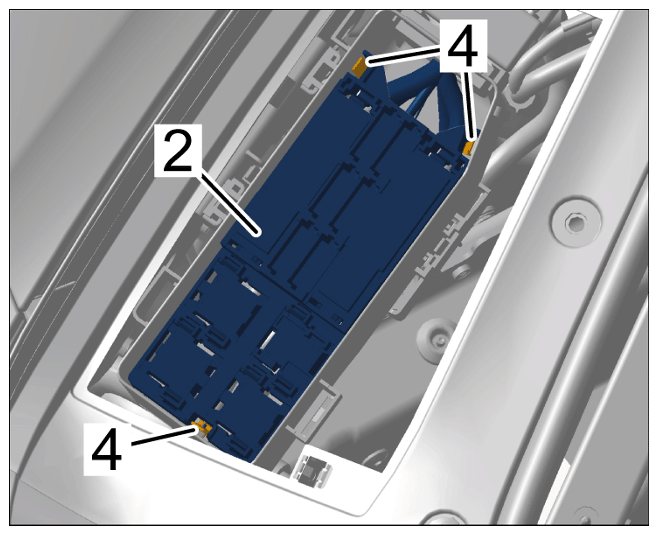

      G15876613Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosening fuse box in the engine compartment
