Loosening Fuse Box In Front Right FOOTWELL

  1. Remove maintenance flap -1-  in entrance lining at the front right.

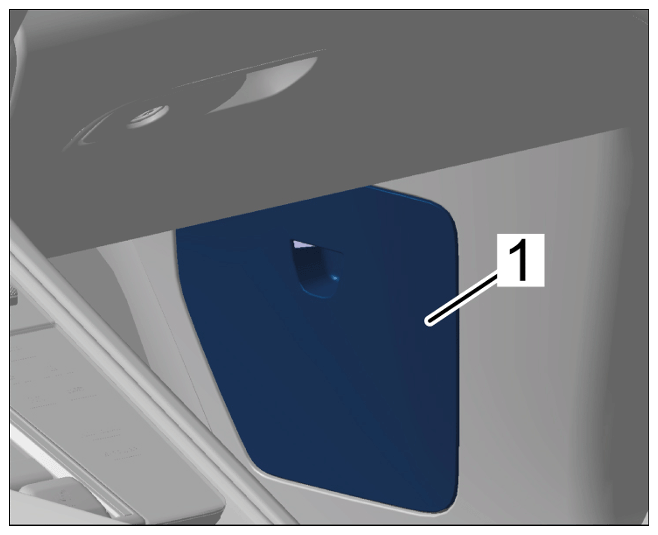

    G15876615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing maintenance flap

  2. Remove fuse box in front right footwell -3-  .
    1. 2.1 Release locking lug.
    2. 2.2 Loosen fuse box in front right footwell -1-  from the fuse holder -3-  and guide it outwards.

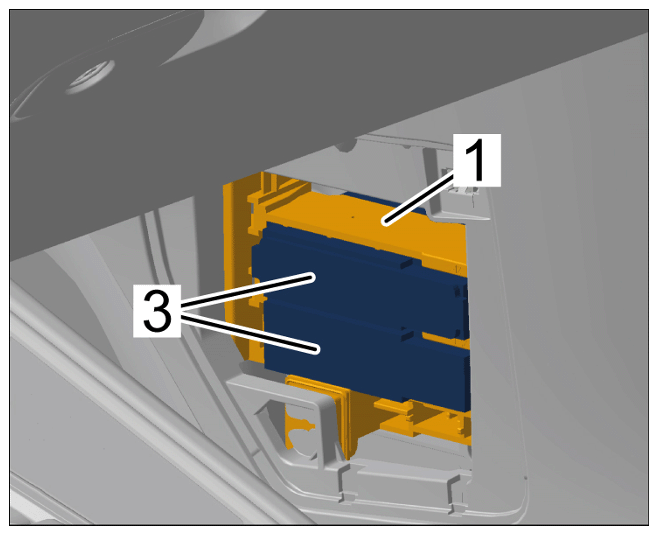

      G15876616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Guiding out fuse box in front right footwell
